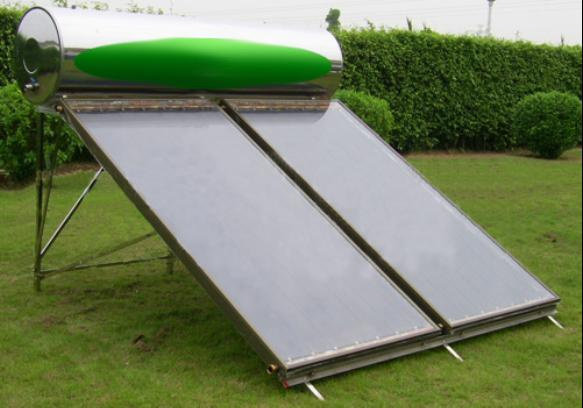

Compact Pressurized Flat Panel Solar Water Heater

Compact Pressurized Flat Panel Solar Water Heater
Price: US $ 300/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: NFP
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Capacity: >200L
Structure: Compact Type
Pressure: Pressurized
Interior Material: Stainless Steel
Collector Components: Flat-plate
Composition: Collector
Certification: CCC

Product Description

Characteristic:
This system can endure high pressure up to 0.62Mpa. Stable performance and long service life. Ultrosonic welding ensures the quick conduction from the thermal heat to the risers. It can endure high temperature without leakage. Its operation temperation: -35--120 degree centigrade. Patterned temper glass or low iron temper glass is not easy to be broken even under very high transmission. Low emission black chrome or magnetic blue sputtering coating has higher absorption rate.

Technical specifications:
1 Specification: 2m*1m*70mm/80mm/90mm; 2m*1.5m*70mm/60mm/90mm
2 Material of core: Copper and aluminum unfied core, heat pipe diameter: 22mm/25mm. Few welding line, high intension, and strong pressure resistance.
3 Coating: Anode oxidation film
4 Tempered glass: High transmittance, good heat preservation, firm and long service life, thickness is 4mm or 5mm.
5 Work pressure: 0 Mpa
6 Aluminum alloy profile: Electrophoresis aluminum alloy profile treatment, beautiful outlook and more high anticorrosion.
7 Special preservation: Glass wool/ high dense polyurethane foam
Less heat loss, more efficiency and more beautiful
Flat  Plate   Spec. (mm)  2000*1060*70        2000*1060*80        2000*1060*90
  Solar Collector  Cover Glass  Tempered/ Tempered  woven / tempered low-iron  woven glass

  Coating  Selective / Black Chrome

  Core  All red copper core & pipes

  Insulation  Glass wool + benzene plate/ Glass wool + polyurethane foam
    Water tank  Capacity  100L/ 120L/ 150L/ 200L/ 250L/ 300L/ 400L/ 500L
  Inner tank    Food-grade stainless steel SUS304-2B
  Copper coil    All red copper Φ 12 X 1.0mm
  Insulation    Imported polyurethane integrated foam-forming 50mm
  Tank shell    Color steel plate / Stainless steel
        Bracket  Spec. (mm)  1.2 ~ 1.5mm in thickness
  Material    Hot-dip galvanized steel / Stainless steel / Aluminium alloy
  Accessories  Workstation, Electrical heater, Magnesium rods,   T& P  valve
      Pressure  7 bar
      Tilt angle  0° ~ 90°
    Water output  45~95 o C


Haining Qiruite Photoelectric Co., Ltd. was founded in 2001 and specialized in producing of solar water heaters(mainly), solar lights. In addition, we also have the capacity of researching, developing, designing, manufacturing and installing large scale solar-heat-collector projects and its central-control system. Our factory covers an area of 28, 000 square meters and has an annual production capacity of 100, 000 solar water heaters.
We trust product quality is our life. Therefore, we have got the certificates of Solar keymark, CE, ISO9001: 2000 and CCC. Our production line include over fifty working procedures, and we manipulate strictly under the measure requirements and working order. Our products are exported to many countries with good honor, such as EU, North America, Middle East, South Africa, Southeast Asia and etc.
We can guarantee high product quality. According to different individual requirements such as area, climate and consumption level, more and more productions come into the market from Qiruire. All our successes are based on the research and analysis of the market. If you are interested in any of our products, please feel free to contact us without hesitation. and we are looking forward to having opportunities to become your future honor supplier.
