Jiangsu Sunpower Solar Technology Co., Ltd. >> Compact Non-Pressure Solar Water Heater

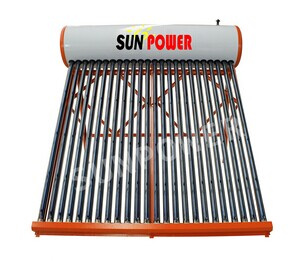

Compact Non-Pressure Solar Water Heater

Compact Non-Pressure Solar Water Heater
Price: US $ 176-195/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 2/Piece
Pay Type: L/C,T/T
Prod Model: SP-470-58/1800-18-KM
Markets: South America,Southeast Asia,Africa,Mid East,Eastern Asia
Outer Tank: Colored Galvanized Steel
Inner Tank: 0.4-0.8mm SUS 304 2b Stainless Steel
Collector Components: Glass Vacuum Tube
Pressure: Unpressurized
Structure: Compact Type
Interior Material: Stainless Steel
Certification: Solar Keymark
Max. Capacity: 100-200L
Composition: Tank+Frames+Vacuum Tube

Product Description

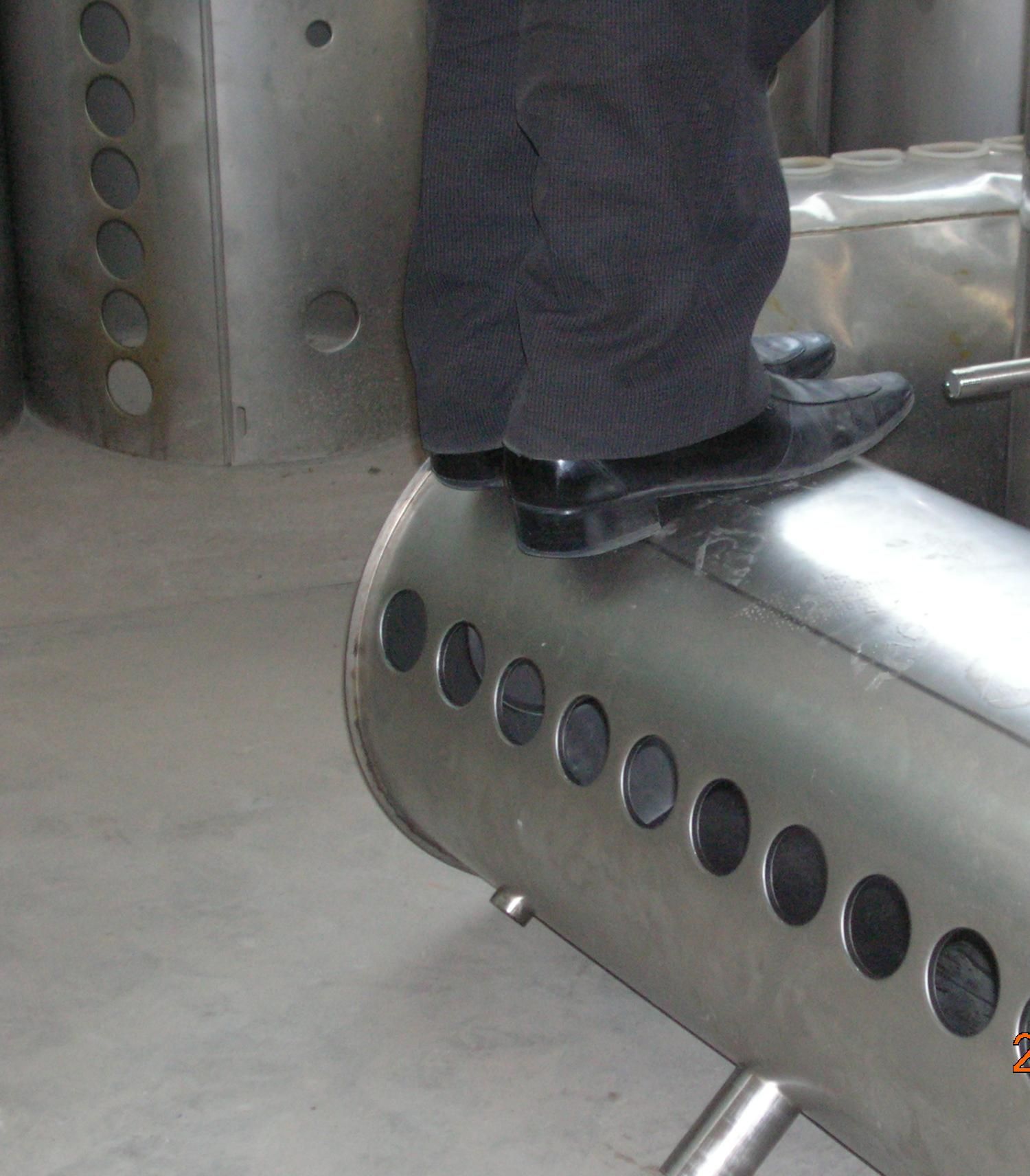

1)Inner water tank shell all are made of SUS3042B food grade stainless steel plates, welded by argon arc. Outer tank and frames are made of color steel or zinc-coated material. Water is pure and drinkable. Inner tank thickness is 0.4mm, the highest thickness for SP-R direct insert lower pressure can be 0.8mm.
2) Heat insulation of water tanks adopts polyurethane foam and the thickness is 55mm
3) Silicon rings to connect and seal them
4) The tubes and supports are adjustable. The power bearing is average and can assure the vacuum tubes to use for a long time
5) Whole glass vacuum tubes adopt super hard borax and silica glass
6) Absorption rate: 93%, thermal radiation rate: 6%
7) It resists 25mm hail and the using life can last 15 years
8) Temperature when exposed to sun without water: 250,2.5 hours to boiling point if using single tube
9) If you use electrical appliances to aid heating and to switch off the power supple before bathing
10) Please test the water temperature before using, in order to avoid scalding.

Quick Details


Sunpower ---Together we can build a green world

Founded in 2004, with registered capital of 51 million Yuan, Jiangsu Sunpower Solar Technology Co., Ltd is an integrated enterprise professional working on solar collector product development, production and sales, is an important manufacturing base for exports solar water heaters in China. The company's products have been sold worldwide 95 countries and area and have achieved greater market share in European and South America. According to the latest Customs data shows that from 2004 to 2013 our company total exports $ 112 million, accounting for 7% of China's total exports of solar thermal which is Top 3 position in the industry of China. Sunpower always regards the product quality as the first core element, the first peer passed ISO9001: 2008 quality system, CCC certification, Healthy certification Ministry of Construction, the EU EN12975&EN12976 product quality certification, CE certification, the European Solar Keymark certification, the U. S. SRCC certification, South Africa SABS certification, Korea certification, Australia WATER MARK certification and Mexico solar standards certification.

The company currently owns 116 various types of patent applications (15 for patent for invention), 9 of them authorized, including 95 utility model patents; Drafting five national standards for the industry and two international standard (China currently only undertake the drafting of two international standards in solar thermal fields, our company and the China National Standard Authority are involved). Jiangsu Province solar building integrated design atlas was also drafted by our Company in 2009.

China famous Vanke Group, Longfor estate, Kaisa Group, Capital Group, the Yangtze River real estate, China Resources Land, Changxing Group, West Taihu Lake Real Estate, Southeast real estate, Yingte real estate, Changfa Group and other real estate companies are Sunpower its long-term strategy partners.

Chairman of Sunpower graduated from Nanjing University in 2001, built Sunpower in Sep, 2004 after he worked three years. In 2007 he was elected to deputy to National People's Congress of Luoxi Town, China solar industry annual economic figures, Jiangsu Top 10 young people start their own businesses typical knowledge, and Changzhou New District youth entrepreneurship model in 2008, Top 10 young entrepreneurs of Changzhou, China Youth Entrepreneurs Association member (Mission Central) in 2009. In 2009, he on-the-job studied in Maastricht School of Management majored in economics. In 2011, was elected vice president of solar thermal flat plate committee and New District Youth Federation, Vice-Chairman of Changzhou Youth chamber of commerce. 2013 joined the China Democratic League.

Please feel free to contact us.
