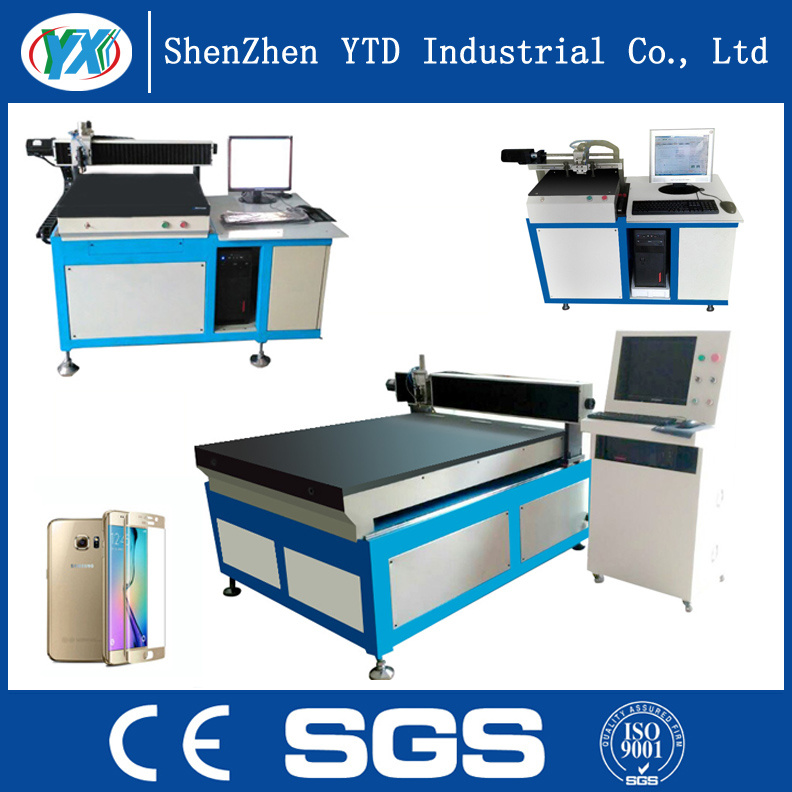

CNC Glass Cutting Machine for Mobile Phone Screen Protector

CNC Glass Cutting Machine for Mobile Phone Screen Protector
Price: US $ 7800-14000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: YTD-1300A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Glass Thickness: 0.15mm-8mm
Max Glass Size: 1300*1100mm
Outline Dimension: 2100*1750*1500mm
Electric Power: 3.6kw
Table Flatness: +/-0.015mm
Cutting Speed: 0-80m/Min
Weight: 2300kg
Accuracy For Straight Line: +/-0.05mm
Air Pressure: 0.4-0.6 MPa
Power Supply: Three Phase, 380V
Type: Glass Cutting Machine
Certification: PDA
Control System: PLC

Product Description

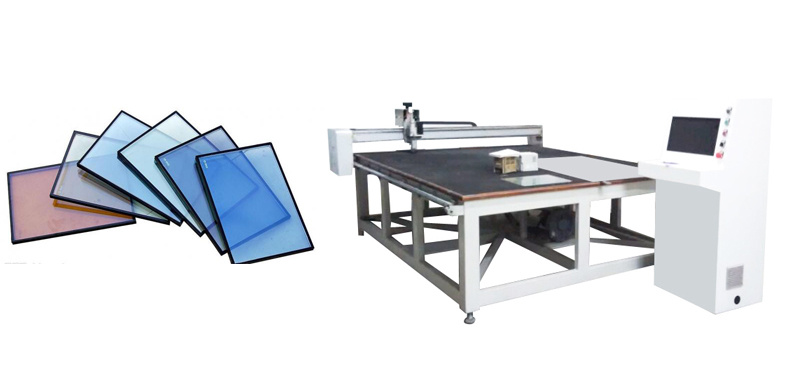

 CNC Glass Cutting Machine for Architecture Glass Sheet

1. Product description:

1)Technical data:
ModelUnitYTD-1200AYTD-2250AYTD-2280A
Glass thicknessmm1-191-191-19
Max glass sizemm1220*11002500*19003660*2440
Dimensionsmm1860*1300*8503200*2250*8504550*2880*850
Accuracy for straight linemm±0.01
Table flatnessmm±0.015
Cutting speedm/min0-80
Electric Powerkw3.55.58
Weightkg100012001800

2)Features:
>Multiple function, straight cutting, circular cutting, any shape you desire.
>High precision, ±0.01mm, high speed, 0-80m/min.
>Stable cutting process, smooth glass edges.
>Good quality, guarantee for one year.
>Overseas machine installation and maintenance available.

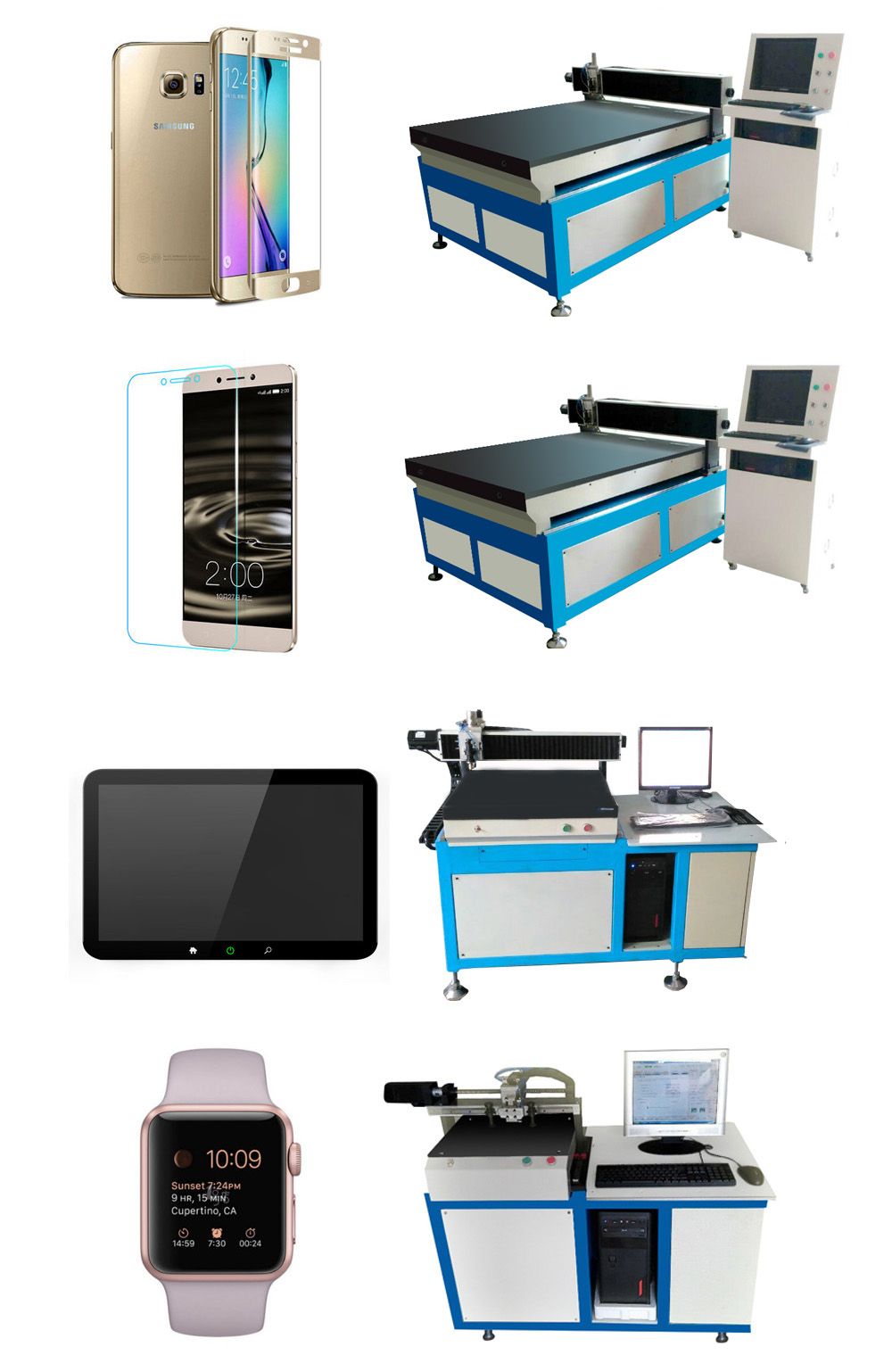

3)Application:
4)Technical data:
ModelUnitYTD-1300AYTD-670AYTD-213A
Glass thicknessmm0.1-8
Max glass sizemm1300*1100500*600130*120
Outline dimensionmm2100*1750*15001500*1200*12001250*750*1100
Accuracy for straight linemm±0.02
Table flatnessmm±0.015
Cutting speedm/min0-80
Electric Powerkw2.511
Weightkg1500350200
VoltageV220
FrequencyHZ50

5)Features:
>Multiple function, straight cutting, circular cutting, any shape you desire.
>High precision, ±0.01mm, high speed, 0-80m/min.
>Stable cutting process, smooth glass edges.
>Good quality, guarantee for one year.
>Overseas machine installation and maintenance available.

6)Application:

7). Main configuration:

(1)Transmission system:

Shaft X,Y,Z are drived by Taiwan Delta servo motor.

(2)Oiling way: Automatic filling;

(3)Positioning device: Mechanical positioning;

(4)Mechanical configuration:Screw and guide (Taiwan Hiwin);

(5)Table: Precision marble with air flotation device;

(6)Pneumatic components: SMC ;

(7)Computer: LENOVO ;

(8)Bearing: Japanese NSK.


8).Cutting software:Shanghai Weihong

   Professional glass cutting software, it is compatible with CAD software, when start cutting, it can click the thickness of glass directly, and the cutter body can automatically adjust the pressure and the distance for falling the cutter.


9). Electrical components:

(1)Air switch: Taiwan Taian(with Electric leakage protection);

(2)Ac contactor: Taiwan Taian;

(3)Button, Indicator light: Taiwan Shanhe;

(4)Switching power supply: Taiwan Meanwell;

(5)Relay: Taiwan Teco;

(6)Proportional valves: SMC;

(7)Filter, Solenoid valve: SMC;

(8)Computer:Lenovo.

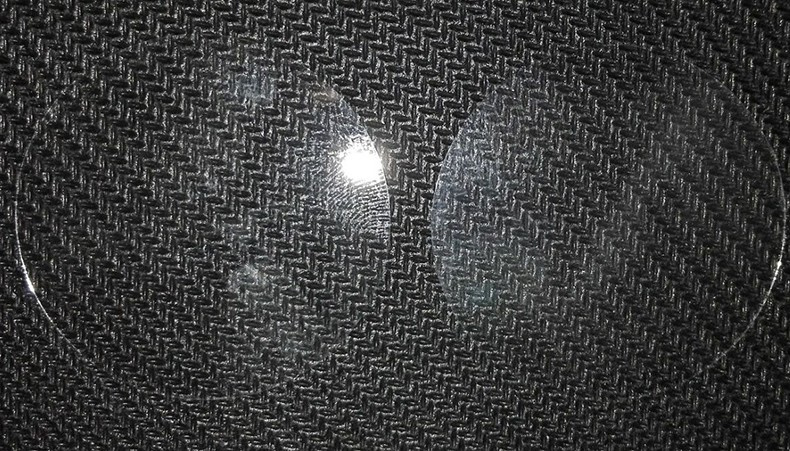

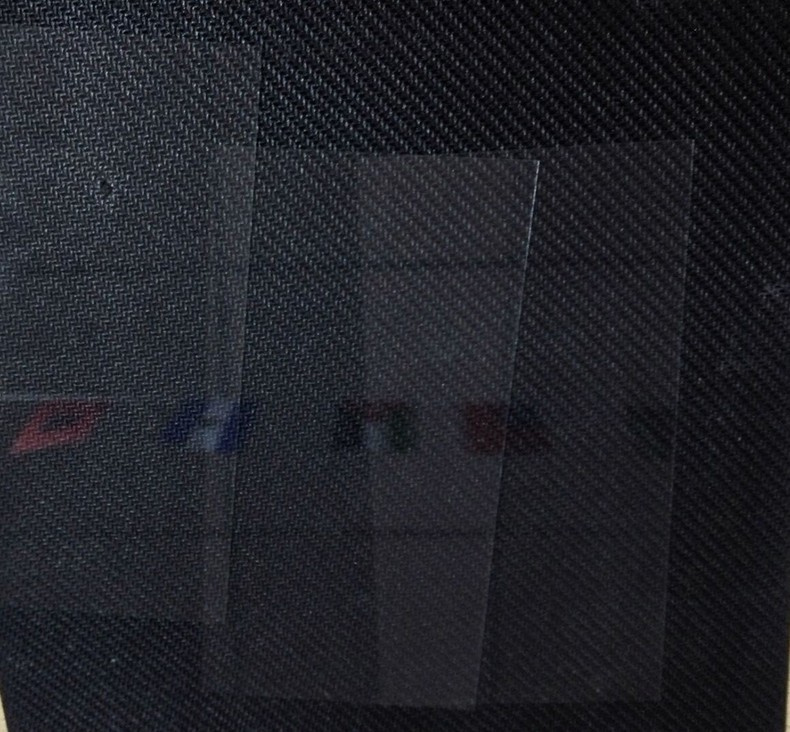

10). Sample photos

2. Packaging & Shipping

1) 15~30 working days for ready goods.
a) Urgently please inform us in advance.

2)We provide wooden case for machine package.
a)Special requirements is considerable.

3)We support shipping ports: SHEN ZHEN, HONG KONG.
a) Other shipping port is considerable.

4)We accept FOB, CIF price.


3.Our Services

a. We provide one-year after sale service (except for the wearing parts).
b. We support overseas training for machine installation and working.
c. Our engineers will be online for 24 hours.
d. Welcome to visit our factory, we would love to pick you up at shenzhen airport.
e. Pictures or video for machine working and installation are available.


4. Company Information

ShenzhenYTD Industry Co., Ltd is supplier that specializes in developing, designing and manufacturing all kinds of automatic machine serves FPC. Currently we have full-automatic FPC laminating machine,automatic stiffening laminator, manipulator for stamping machine, ICT/FCT functional jig, complete of testing solution, micro-needle module test jig and bending, bevel, hot-pressing, laminating, vacuum adsorption, no-automatic jig etc.

Our company was established in 2003, after more than 10 years of development, we have many advanced processing and testing equipments, such as precise CNC imported from Japan, precise carving machine, corrosion machine, detector, 2D measuring instrument, CNC milling machine, grinder, laser machine, automatic variable machine, powerful CNC microscope etc.

By virtue of strong development power, high-end equipments and well-knit organization structure, strict details management, complete team support, excellent after-sales service, our reputation and development has ranked top in the industry.

Quality policy: quality is our soul, we adhere strictly to ISO 9001 quality management system. We pay attention to every detail, take care of every detail, try our best to be excellent.


5. FAQ

1. How can i trust you about machine quality?
A: The detailed machine specifications (including every machine parts) will be enclosd behind the contract.

2. Can you send engineers to my country?
A: Yes, of course. We support overseas training for machine installation, working or after sale service.

3. May i visit your factory and check the production schedule?
A:Sure. It would be our pleasure to show our factory to your esteemed corporation.


For more details aout galss cutting machine, please click the button "contact" below,

or just connect me by:

glass cutting machine glass cutting machine glass cutting machine glass cutting machine

Shenzhen YTD industry Co., Ltd is a supplier that specializes in developing, designing and manufacturing all kinds of automatic machine serves FPC. Currently we have full-automatic FPC laminating machine, automatic stiffening laminator, manipulator for stamping machine, ict/fct functional jig, complete of testing solution, micro-needle module test jig and bending, bevel, hot-pressing, laminating, vacuum adsorption, no-automatic jig etc.

Our company was established in 2003, after more than 10 years of development, we have many advanced processing and testing equipments, such as precise CNC imported from Japan, precise carving machine, corrosion machine, detector, 2D measuring instrument, CNC milling machine, grinder, laser machine, automatic variable machine, powerful CNC microscope etc.

By virtue of strong development power, high-end equipments and well-knit organization structure, strict details management, complete team support, excellent after-sales service, our reputation and development has ranked top in the industry.

Quality policy: Quality is our soul, we adhere strictly to ISO 9001 quality management system. We pay attention to every detail, take care of every detail, try our best to be excellent.

Excellent products, credibility first, win-win cooperation----- ytd will always be your most sincere partner.
