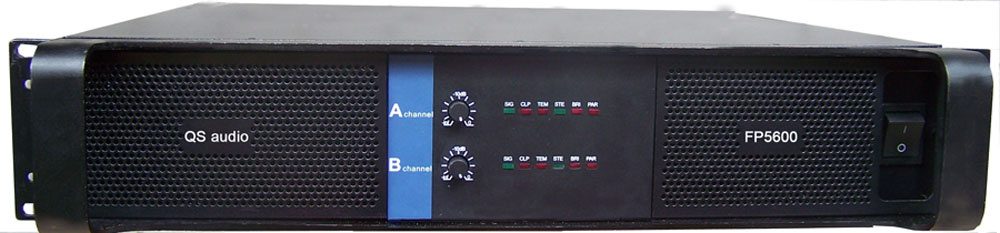

| Prod Model: |
FP1600/FP2400/FP3200/FP4000/FP4800/FP5600 |
| Markets: |
North America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Type: |
Professional Amplifier |
| Function: |
Post Amplifier |
| Usage: |
Stage System |
| Element Number: |
Push-Pull Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
110V, 220V, 230V |
| Output Number: |
2 |
| Conductive Mode: |
Class H |
| Sound Channel: |
2 |
Product Description
Specification:
THD+N: 1KHz <0.025%
IMD:60Hz/7kHz-4/1 <0.075%
Frequency response:20Hz-20kHz,<+/-0.25dB
Power frequency response: -3dB,10HZ-50KHZ
Phase response:20Hz-20kHz, <+/- 8 Degree
Signal to noise ratio: 1KHz,0.775V input, A weight,>110dB
Damping factor: 63Hz, >1500
Slew rate: 1KHz Tone burst,40dB Gain >100V/us
Input impedance:1KHz, Balanced input 20kohm
Lowest loaded impedance:
Stereo:>1.6 ohm
Bridge:>3.2 ohm
Parallel: >0.8ohm
Dimensions: H×W×L 88mm × 482mm × 400mm
| /MODEL | FP1600 | FP2400 | FP3200 | FP4000 | FP4800 | FP5600 |
| Stereo 8ohm(RMS) | 2X400W | 2X600W | 2X800W | 2X1000W | 2X1200W | 2X1400W |
| stereo 4ohm(RMS) | 2X600W | 2X900W | 2X1200W | 2X1500W | 2X1800W | 2X2100W |
| stereo 2ohm(RMS) | 2X800W | 2X1200W | 2X1600W | 2X2000W | 2X2400W | 2X2800W |
| Bridge 8ohm | 1200W | 1800W | 2400W | 3000W | 3600W | 4200W |
| Bridge 4ohm | 1600W | 2400W | 3200W | 4000W | 4800W | 5600W |
| Parallel 2ohm | 1200W | 1800W | 2400W | 3000W | 3600W | 4200W |
| Parallel 1ohm | 1600W | 2400W | 3200W | 4000W | 4800W | 5600W |
| Net weight | 13.5Kg | 15.0Kg | 16.0Kg | 17.0Kg | 18.0Kg | 24.0Kg |
Quansheng Audio Co., Ltd. was founded in 2006! We have been involved in every significant area of the PRO business. Our main products include: Digital controller, professional power amplifiers, plastic speaker systems, loudspeaker systems, line array and so on. All the products are exported to Europe, America, south-east Asia and Middle East areas and got a good reputation from all of our customers. We provide both ODM and OEM service.
Quansheng audio was made up by an experienced R&D team, sales team and production team. Our company's motto is "best service, top quality, keeping development". We always focus on developing more perfect products to make your life more colorful.
