Zhejiang Jiesheng Refrigeration Technology Co., Ltd. >> Chest Freezer With Top Open Door (BDBC-200)

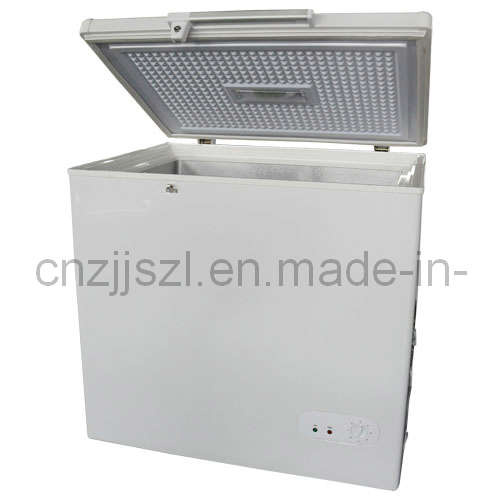

Chest Freezer With Top Open Door (BDBC-200)

Chest Freezer With Top Open Door (BDBC-200)
Price: Negotiablepiece
Trade Terms: FOB,CFR,CIF
Min Order: 70/Piece
Pay Type: L/C,T/T
Prod Model: BDBC-200
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation: Freestanding
Use: Freezer
Material: Steel
Style: Chest
Climate Type: ST
Capacity: 60-200L
Door: Single
Power Source: Electricity
Certification: CE

Product Description

BD/BC-100A, BD/BC-100, BD/BC-145, BD/BC-200, BD/BC-258, BD/BC-300, BD/BC-388, BD/BC-468, BD/BC-568

Features:
1. Embossed Al board liner is beautiful, durable and excellent in thermal conduction.
2. A food basket is provided together with the machine, fully utilizing space in the box. Partition screen boards are provided to Facilitate the sorted storage of food, saving time and electricity.
3. Thick thermal insulation using advanced foaming technology.
4. Wideband temperature variation design is applied to realize a free selection from the four levels, I. E., cold storage, micro-freezing, freezing and speed freezing. Suitable temperature zone Is selected according to different food.
5. The door seal is in embedded design and can be easily removed and convenient for cleaning.
6. Man-machine engineering principle is applied. A balanced hinge is installed on door-frame, so that the door can be opened from any angle.
7. Fully round corners are in safe design, always taking care of you and your family.
8. The door seal strip is inserted inside the frame opening to reduce coolness loss, which is perfectly energy-saving and environmentally friendly.
9. The thick foaming layer is as thick as 70mm and provides an excellent insulation property.
10. The relatively independent and simple system is a best option substituting small-scale refrigerating house.
11. Lamp inside desgin is optional, and the condenser inside or back-mounted is also optional; (100L, 145L, 200L, 258L, 300L, 388L)
12. The model 200L, 258L, 300L can fix inside sliding glass door.
Model BD/BC-100A BD/BC-100 BD/BC-145 BD/BC-200 BD/BC-258 BD/BC-300 BD/BC-388 BD/BC-468 BD/BC-568
Capacity 100 L 100 L 145  L 200 L 258 L 300L 388 L 468  L 568 L
Climate class N/T N/T N/T N/T N/T N/T N/T N/T N/T
Temperature  -18oC to 10oC -18oC to 10oC -18oC to 10oC -18oC to 10oC -18oC to 10oC -18oC to 10oC -18oC to 10oC -18oC to 10oC -18oC to 10oC
Inside bottom type Step bottom Step bottom Step bottom Step bottom Step bottom Step bottom Step bottom Step bottom Step bottom
Power supply 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz
Rated input power 102W 102W 102W 128W   270W 270 W 300 W 300 W
Power consumption 0.86  kwh/24h 0.86  kwh/24h 0.95  kwh/24h 1.20  kwh/24h   kwh/24h 1.23kwh/24h 2.20  kwh/24h 2.50  kwh/24h 2.50  kwh/24h
Refrigerant R600a/134a R600a/134a R600a/134a R600a/134a R600a/134a R134a R134a R134a R134a
Net /Gross weight 31/34  Kg 31/34  Kg 36/40 Kg 40/44  Kg 44/48  Kg 50/55 Kg 67/72  Kg 72/78 Kg 79/85  Kg
External dimension (mm) 520× 535× 850 621x480x850 821× 480× 850 831× 610× 850 1045*565*850 1115× 610× 850 1410x642x850 1600× 642× 850 1885× 642× 850
Packing dimension(mm) 560x575x870 680x570x870 880x570x870 887x692x870 1125x660x870 1160x692x870 1490x760x870 1690x760x870 1975x750x920
Loading quantity 240pcs/40HC 203pcs/40HC 156pcs/40HC 128pcs/40HC 102 pcs/40HC 101 pcs/40HC 70pcs/40HC 62pcs/40HC 54pcs/40HC

Founded in 1994, Zhejiang Jiesheng Refrigeration Technology Co., Ltd. is a manufacturing and export enterprise of refrigeration equipment. Our new factory is located at Leidian Industrial Zone, Deqing County, Zhejiang Province, being only 13km away from Hangzhou.

Our factory' S assets are RMB 15 million, covering an area of around 18, 000 square meters, and our fixed assets are RMB 30 million. We consider "People-oriented, Science-First" as our enterprise spirit. Our company has attracted lots of professional employees, and more than 35 percent of them are technical personnel having intermediate professional titles.

Currently, our factory' S annual production capacity is more than 200, 000 sets of refrigeration equipment, with RMB 120 million of annual sales income. Furthermore, our factory has introduced internationally advanced refrigerating technology and utilized high-quality brand compressors. At present, our company provides domestic markets with commercial refrigerating equipment And low temperature with totally five series and more than seventy models. Besides the domestic market, our products are also distributed to more than twenty countries and regions, such as the USA, England, France, Russia, Australia, India, Chile, Nigeria, Indonesia, Iraq, the UAE, Costa Rica, Nepal, Korea, Vietnam, and Taiwan area etc.

Having stable quality, high efficiency and other features, our products have obtained Chinese and foreign customers' Confidence and praises.

Faced with the rapid development of domestic food and beverage market, our company has developed twenty models of products for supermarkets. Moreover, many Chinese famous enterprises, such as Sanquan, Anjing, Haiyi, Tengxin, Huiyuan, Taizinai, Haibawang, Shenglong, Nengniu, Caoyuanxingfa, Furunjia, Taifeng and Qingdao Beer, are using Jiesheng' S products.

"Concerned about user' S needs, satisfy the demand of market" is Jiesheng' S everlasting aim, we will make great effort to improve our technology and supply quality products and service to satisfy your demands!

Welcome to Jiesheng!
