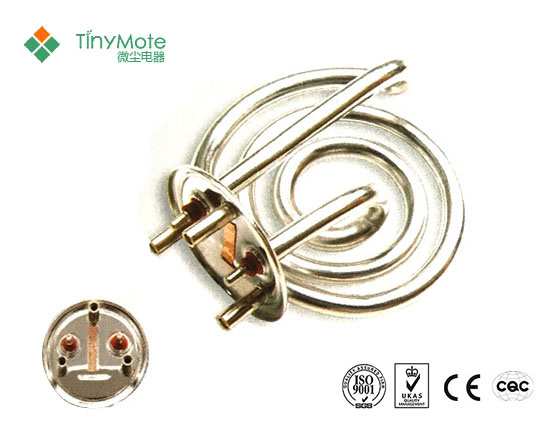

Changshu Tinymote Design Steel Heating Element for Kettle

Changshu Tinymote Design Steel Heating Element for Kettle
Price: US $ 0.96/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1000/Piece
Pay Type: L/C,T/T,Paypal
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: ISO9001

Product Description

Body Material:SUS304
Pipe Size:Φ6.5
Tube wall thickness:0.4~0.5mm
Conductive cap connection type:squeeze riveted to withstand tension of 5 kg
Key size to temperature control:16.1±0.2;14.1±0.2;
Thermostat System:COSO control, satisfying the various demand of compatibility testing
Watt:Customized
Voltage:Customized
Overall Dimensions:Spiral,OEM,customized in drawing or samples.
Electrical Performance:AC1500V/0.5mA.3S;DC500V 100MΩ;Leakage current<0.5mA
Life Time:Power on 0.5 time voltage boil dry until trip,then water cooling within 5 seconds,non-yellowing on tube surface.
Instal the heating tube and thermostat inside of kettle,inject 1L cold water,boil water until boiling by rated voltage,boiling 5 seconds later power off,then drain and cooling,inject 1L cold water again boil until boiling.So after 10000 cycles,heating tube can be still work normally.

Changshu Tiny Mote Electric Appliance Co., Ltd. Is situated in Changshu city, Jiangsu Province, China. Since 2005, it has been professionally engaged in design and production of heating pipes. It has rich experience in the industry.
