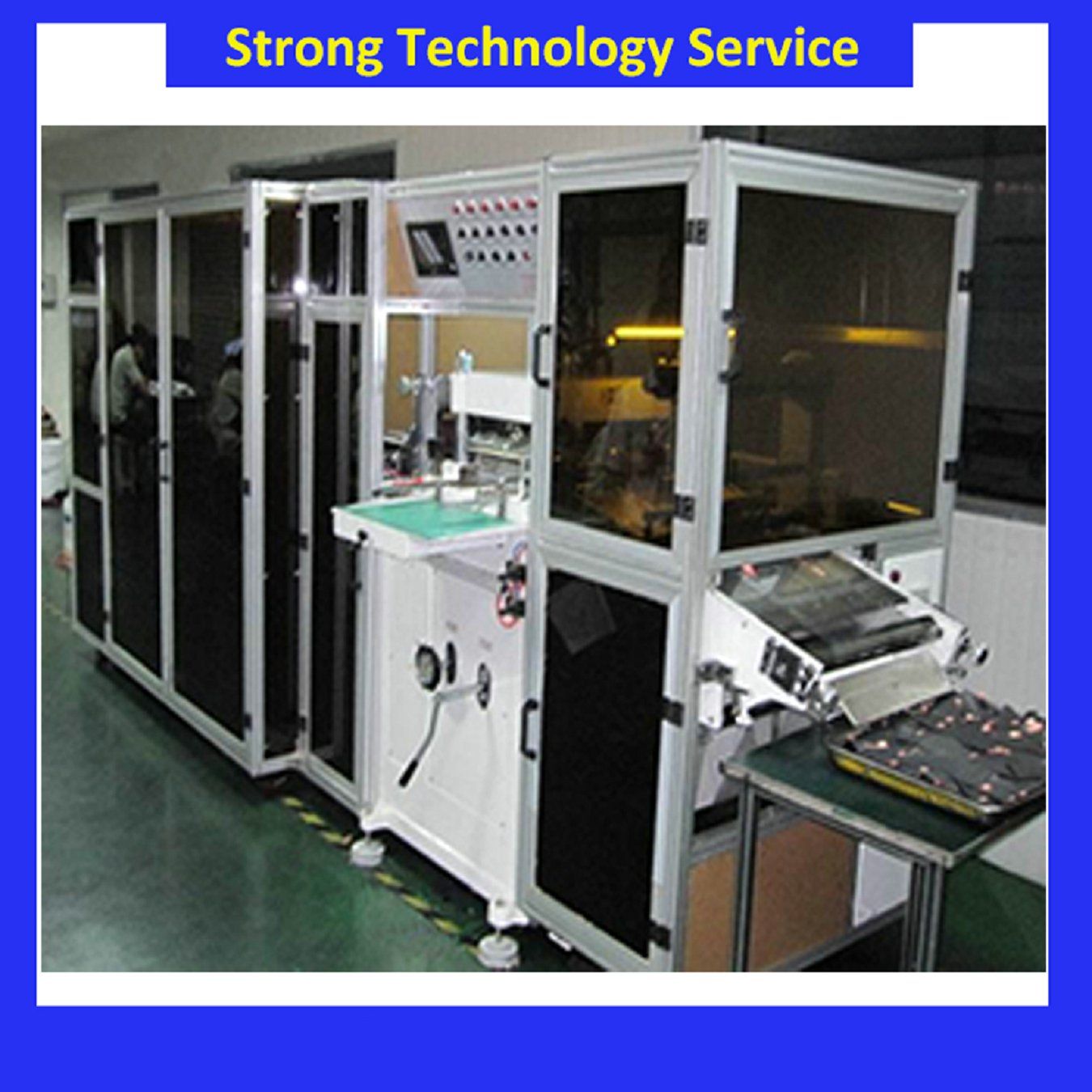

Cellphone Battery Die Cutting Machine

Cellphone Battery Die Cutting Machine
Price: US $ 39999/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: DJ-350
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Cellphone Battery Die Cutting Machine
Stencil Area: 370*280mm
Effective Die-Cutting Area: 350*260mm
Maximum Width Of Material: 360mm(Effective 350mm)
Height Of Die Mould: 8mm
Roll Diameter: Max.400mm
Speed Of Die-Cutting: 0-60/Min
Pressure Precise: +0.02
Power: 4.2kw
Voltage: Customed
Imprinting Type: Platen
Placing Form Of Template: Horizontal
Die Cutting Tool: Metal Mold
Automatic Grade: Automatic
Application: Battery Pole Piece

Product Description

350 electrode pole die-cutting machine
1. Function description
DJ-350 battery pole die-cutting machine is new type coiled material high-speed molding machine designed for growing marketing demands of power battery, it saves labor cost and improve production quantity. The machine has advanced design and technology ,with high manufacture precise., is perfect for electrode pole piece
2.Technical parameter
ModelDJ-350
stencil area370*280mm
effective die-cutting area350*260mm
Maximum width of material360mm(effective 350mm)
height of die mould8mm
roll diameterMax.400mm
speed of die-cutting0-60/min
Pressure precise+0.02
power4.2kw
Voltage380V/50HZ
Dimension4300*1300*1900mm
weight of machine2500kg
Burrs of die-cutting≤0.025mm
Pole mould precision+0.2mm


Foshan Golden Milky Way Intelligent Equipment Co., Ltd is a state-level, high-tech enterprise specialized in manufacturing mixing and filling equipments used for building sealants, industrial adhesives, organosilicon & high polymer compounds, electronic chemicals, Lithium battery slurry, high polymer composites, paint chemicals and cosmetics etc.

Established in 2002, the company was founded in The Central Science and Technology Industrial Park, Sanshui, Foshan city, with plant area of 20, 000 square meters, building area of 13, 000 square meters and over 200 employees. Golden Milky Company is devoted to technical development and innovation, with many patented technologies, and is the founder of the Foshan Sanshui Engineering Technology Research and Development Center, and has gained TUV Rheinland ISO9001: 2008 certification in 2011.

Our representative products include twin screw automatic sealant production line, static mixer, automatic cartridge filling machine, sausage type automatic filling machine, cartridge/sausage type automatic box packing machine, vacuum kneader, planetary dispersing power mixer, planetary power mixer, dispersing power mixer, hydraulic discharge extruder, automatic vessel cleaner and reaction kettles, etc...
