| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Refrigerant: |
R22 |
| Power: |
380V/50Hz or 220V/50Hz |
| Ice Production Time: |
3hrs to 24hrs |
| Weight Of Ice Block: |
2kgs to 70kgs |
| Inlet Water Temperature: |
16 |
| Ambient Temperature: |
35 |
| Evaporating Temperature: |
-15 |
| Approved: |
ISO |
| Compressor: |
Adopt USA, Italy, Japan |
| Cooling Capacity: |
High Capacity |
Product Description

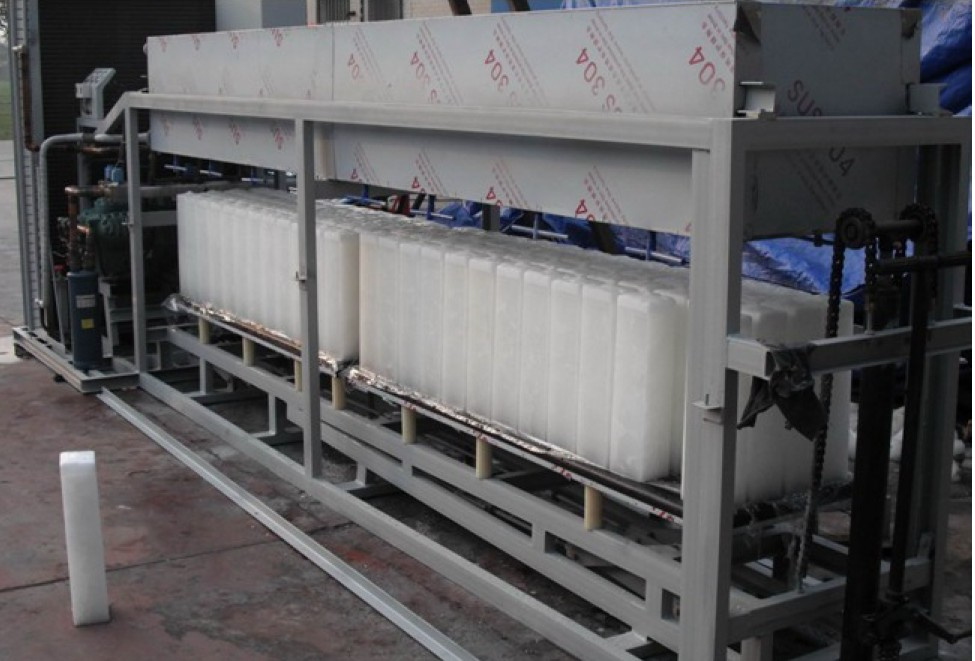

QINGFENG Ice Block Machine adopts top brand compressors made in U. S. A., Italy and Japan, with inbuilt energy economizers of QINGFENG own patent. By virtues of more than a decades experience and technology, our products have such features as beautiful outline, stable running, easy cleaning and simple operation as well multiple protective functions for the occasions with unstable power supply.
Easy to install, it's plug-ready.
The ice block is neather to long nor to heavy, it's easy to take out.
Designed for tropical conditions and coastal climate.
With latest technology, we have patent on this ice block machine.
A complete range of specifications: In order to cater to the different demands from the market, we have developed various ice blocks from 2kgs to 70kgs in weight, and the ice production time may vary from 3hours to 24hours, as well as we can make subject to actual demand from customer.
QINGFENG ice block maker is of integrated machine which only needs connection of the power and water source.
Designed specifically for the applications in coastal and tropic regions.
QINGFENG ice block maker is designed and developed by ourselves. It is our patent product, and counterfeiting is not allowed.
Brine system ice block machine operation process:
1. Connect the power and water source, turn on the machine
2. Put the brine water to the ice tank, make the concentration according to which marked on the users manual.
3. Fill the pure water into the ice mould into the ice tank
4. When water is completely frozen into ice, take the ice mould out, then put them into the warm water for several seconds, pour ice out, and put water into the ice mould again for the next batch.
Model No.
|
Ice capacity
|
Daily Output (Kgs)
|
Ice block size(mm)
|
Input Power (Kw)
|
Power
|
Refrigerant
|
Machine Size(mm)
|
QZB-3005F12
|
294 pcs/5kgs
|
2940
|
160*80*460
|
11
|
380v/50hz
|
R22
|
5800*1470*710
|
Zhejiang Kingfit Environment Co., Ltd.is subsidiary of Kingfit International Group Limited in East China, founded in 1998, with total capital of USD 5.38 million of Sino-joint venture enterprise. East China factory is located at Shuige Ind. Park in Lishui City of Zhejiang Province with convenient traffic, and covers a land area of 20000sqm. Our company is constantly introducing advanced manufacturing workmanship and testing equipment, invests 5% of it gross sales amount into R&D center every year and we established tight national testing center. The products are recognized by the users from abroad and at home and entitled "the Top 10 Well-known Refrigeration Equipment in China" and "National Quality Guaranteed and Eligible Product in Refrigeration Equipment Industry" etc. Our company introduced many leading technology production lines for the manufacture of screw style chiller, box-type chiller, cooling tower, freezing dryer, high temperature heat pump, ice making machine etc. The products are exported to more than 30 countries, this is a high tech enterprise integrated scientific research, production and trade, and is also currently the largest and most professional refrigerating and heating equipment manufacturer in China.
We have passed ISO9000, CE, AS certification, gradually becoming the navigator of industrial refrigerating and heating. And received many patented technologies, such as anti-corrosion flooded screw style chiller, flooded scroll style chiller, economizer, U-type anti-corrosion evaporator, external thread titanium evaporation, ice machine etc.
We sincerely welcome customers at abroad and home to our company for cooperation and let's make contribution to the flourish and development of refrigeration equipment in China together.
