Shenzhen Xin Song Xia Automotive Electronics Co., Ltd. >> Car GPS Tracking, Car Tracking System

Car GPS Tracking, Car Tracking System

Car GPS Tracking, Car Tracking System
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Prod Model: LLT-VER9.23
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 137*78*29mm
Working Voltage: DC:6.3~40V
Input Fuse: 5A
Working Temperature: '-40~85°c
Humidity: 10% to 90%
CPU: 480line
Storage Space Temperature: Ti:Msp430f5419(100MHz)
Type: GPS Tracker
Use: Automotive
Screen Size: 4.8"
Brand: Llt

Product Description

Product Instructions:

It is a mini GPS Tracker, build_in GPS Antena and GSM Antena, Size: 48*60*22mm, Weight: 120g, it can send vehicle location and status to mobile and Internet. It can track the vehicles remotely. Tracker the vehicle on the Internet and with Mobile.




Main features:
1. Real time uploads location information via time/distance interval
2. Connect to the taximeter
3. Real-time Positioning & Tracking
4. SOS Function & Power-cut Alert
5. Audio Monitoring
6. Geo-fence & Over Speed Alert
7. Fuel Monitoring
8. Remote controlling oil & circuit
9...GPS & A-GPS (LBS— Location based service)

1). Positioning and tracking: Through the on-line positioning platform or the cell phone to locate at anytime, and get the working status. You can choose the positioning Platform by yourself

2). Geo-fence Mode: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district

3). Over Speed Alert: When the target moves exceeding a preset speed the unit will send an SMS to the authorized numbers

4). Audio Monitoring: You can ring the GPS unit and simply listen in discreetly. (the GPS unit does not vibrate or ring )

5). Fuel Monitoring: Remote monitoring vehicle fuel (oil, oil spills, oil steals, fuel consumption, etc. )

6). SOS Function: You can press the SOS alarm button to send an alert. This will give the location to the registered phone numbers in case of an emergency. The SOS function also allows you to talk into the GPS tracker & make yourself heard on the receivers end with the mobile cell phone

7). Auto track: Auto track by SMS or online positioning platform; Mileage statistics; ACC checking

8). Cutting off power and alert: When tracker cut off power, the tracker sends alert SMS to user

9). Remote controlling oil and circuit: You can Cut off or turn on the oil & circuit remotely via SMS or Online whenever you want
GPS & A-GPS(LBS— Location based service): Using Global Satellite Positioning technology, LBS(Location Based Service) technology(while it's
Specification:
Size 137*78*29mm
Working Voltage DC:6.3~40V
Input Fuse 5A
Working Temperature '-40~85°C
Humidity 10% to 90%
CPU TI:MSP430F5419(100MHz)
GSM Module Band:850/900/1800/1900MHz
Tally with: GSM phase 2/2+
-Class 4 (2W @ 850/900MHz)
-Class 1 (1W @ 1800/1900MHz)
Max RF Output: 33.0dBm±2dBm
Dynamic Input Range: -15 ~ -102dBm
Receiving delicacy: Class  RBER≤2%(-102dBm)
Frequency Stability: > 2.5ppm
Max Frequency Deviation: ±0.1ppm
RMS Deviation:  ≤5deg

GPS Module

GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Reacquisition: 0.1 sec, average
Hot boot: 2 sec., average
Warm boot: 38 sec., average
Cold boot: 44 sec., average
Altitude limit: 18000 m
Velocity limit: 515 m/s
Input I/O 7 I/O input Port
1 port use to check the engine ( ACC check)
1 port use to SOS
1 A/D Input port( Fuel monitoring)
1 Output port ( Car engine control )
3 Extend ports ( Input/Output control by software)
RS232 2, it can be connect 2 RS232device.
Microphone 3.5mm single track
earphone 3.5mm
Current Not working Current 16mA
working Current:60~150mA
Current of opening infrared of Camera at night  :100~200mA
Charging current: Max<500mA
Battery Lithium battery :400mA( working time is about 3.5 hours)

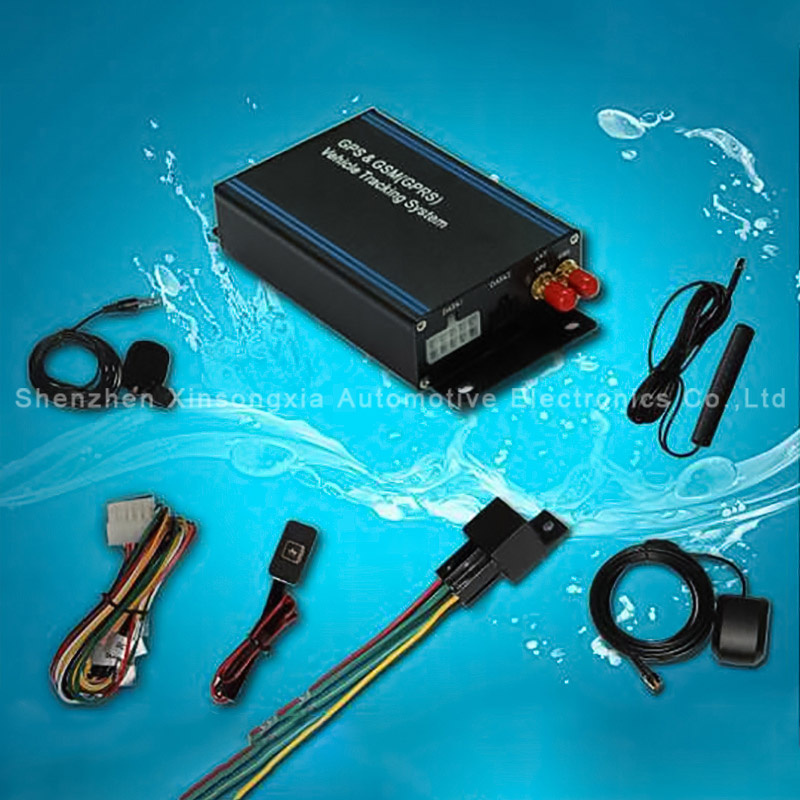

Accessories Device, Connecting cable ,GPS antenna ,GSM antenna, Relay, SOS button, Microphone,
Shenzhen Xin Song Xia Automotive Electronics Co., Ltd established in 2009. The

Company is located in the advanced southern metropolis --- Bao'an District, Shenzhen city. It covers 60 staffs, including 10 R&D persons. It has 5 production lines and 1 production line for old product.

Company attaches great importance to research and develop new products. We have launched many new solutions for car models such as Mercedes-Benz, BMW, Audi, Honda, GM), etc. And with the ability of producing 50000 sets of original screen entertainment production per year.

We regard quality as life. The company equipped with many test equipment at the world's advanced level such as experiment box, vibration tester, high and low temperature boxes, ESD static tester, power supply fluctuation test instrument, Sound and video automatic detector. And we have made a strict quality inspect system and process. Operating comply with international quality system certification such as ISO9001: 2000, ISO/TS16949: 2009 etc. Strictly.

Shenzhen Xin Song Xia Automotive Electronics Co., Ltd sticks to the Traditional spirits "Create Classic attentively" and Enterprise culture "Creative, Flexible, Team, and Mutual Benefits" which consistently Challenge Himself, The Best of the Best as Conducts to Create more wonderful products to satisfy Driver for Car audio system entertainment

Our products are not only providing Inland 4S Shop, but only the supplier of South America, Middle East, Europe, and America at abroad. Company owed Sales network through the country and Contact the strategy Cooperation relationships with more than 10 Car sales CO.

Develop and Grow is common goal of members. Bellwether of Supplier of OEM Car audio upgrading kit is our Grand mission to the world.

Company Culture

Mutual respect

Honest

Aggressive

Realization of Mutual Benefits

Custom First

Efficiency and Original

Improve competition of market

The Value of Industry

1. Brain value is higher than the material value

2. Mutual value is higher than the personnel value

3. User value is higher than the production value

Enterprise Tenet

Value for customer; Development for staff; Opportunity for society; Benefits for industry.

Enterprise Spirit

Honest

Aggressive

Dedicated

Original

Cooperation

Enterprise Relation

Love country

Love company

Love staff

Love family

Enterprise Brand

LLT: Involved in the original car upgrade decode navigation screen, change the screen machine, Internet communications, and Android navigator box, the original car screen upgrade scheme.
