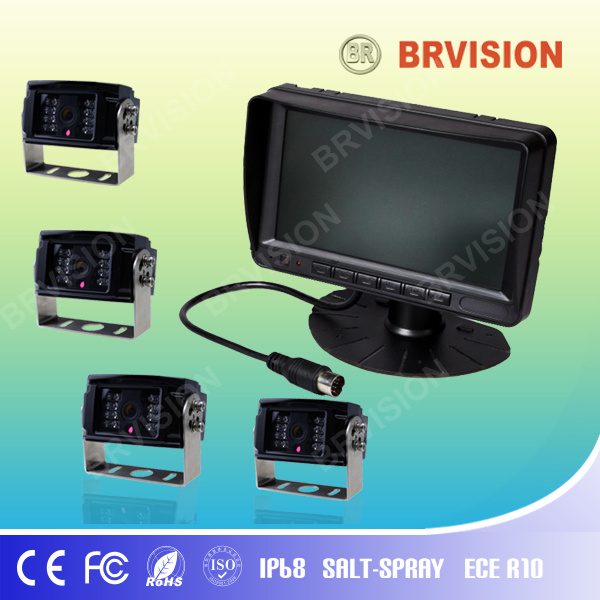

Bus Video System with Backup Cameras

Bus Video System with Backup Cameras
Price: US $ 70/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: T/T
Prod Model: RVC016-4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Type: Reverse Image
Alarming Distance: 2.5-0.35m
Probe Diameter: 18.8mm
Interface: S-Video
Shell Material: ABS Plastic
Function: Night Vision
Chip: CCD
Definition: 420tvl
Probe Number: 1/2/3/4

Product Description

Monitor Specification:

- Screen size: 7inch panel (diagonal length)
- Input: 2/4-way video input
- System: PAL and NTSC auto switching
- Resolution: 480 x R-G-B x 234
- Power supply: 12-24V DC
- Built-in speaker (optional)
- Heavy duty  reversing
- OSD menu
- contrast, color, brightness adjustable
- View angle range: (left/right) 65 degrees (top) 40 degrees
  (down) 15 degrees



Camera Specifications:

- Type High resolution backup camera .
- Image Sensor 1/3" CCD
- TV System NTSC/PAL Optional
- Effective Pixels N: 510* Pixels P: 500*582 pixels
- Horizontal Resolution 420 TV Line
- Lens Angle 140°
- Minimum Illumination 0Lux (LED ON)
- IR Led 10pcs for night vision distance 45ft
- Audio function
- Operating Temperature -20°+70°RH95% Max
- Lens f=2.8mm
- Power Supply DC12V
- Waterproof Rate IP68
- Shell Material Aluminium alloy



Operation system
CCD
GuideSetup system parameters with remote controller
Security managementSupport user password, supervisor password management; support encryption transmission
VideoVideo input/output4-channel video input,
Dual streamSupport
OSDTime & date, vehicle ID, GPS etc
Compression H.264. Hisilicon high performance processor is applied.
Preview functionSingle channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function
Video frame ratePAL: 100 frame/sec, up to 25 frame/sec for single channel
NTSC: 120 frame/sec, up to 30 frame/sec for single channel
Video resolutionCIF, HD1, D1,4D1 adaptive
Video qualityLevel 1 to 4 video quality adaptive, level 1 best, level 4 lowest
Video Bit RateCIF: 256Kbps ~ 1.5 Mbps, 8 levels of bit rate optional
HD1: 600Kbps ~ 2 Mbps, 8 levels of bit rate optional
D1: 800Kbps ~ 3Mbps, 8 levels of bit rate optional
4D1: 800Kbps ~ 4Mbps, 8 levels of bit rate optional
AudioAudio input/output1-channel input; 1-channel output
CompressionG.726
RecordingStorage mediaH8000 support Hard Disk+SD card,  S8000 support only SD card
File format/systemASF/ FAT32
Recording modeStartup recording by default, support  auto,timed, alarm & manual recording
Recording searchSearch recording video files by time, type, storage device, etc.
Recording playbackSupport local playback, support up to 4-channel synchronous playback, and analyze the vehicle message in the file at the same time
Support fast forward, fast backward, play, pause controls, support 2, 4, 8, 16 times speed fast forward or fast backward, support the control of playback by time
AlarmAlarm input5-channel I/O  alarm input
Alarm recordingPre-recording function, 15 seconds pre-recording of alarm, recording time after alarm can be adjusted in between 30 sec ~ 30 min
Alarm output2-channel alarm output
Storage spaceSupport the setting of remain storage space alarm function
Functional alarmOverspeed alarm, gsensor alarm, voltage alarm,snapshot  alarm, motion detection alarm
Communication interfaceRS232, RJ45 10M/100M self-adaption Ethernet interface
Wireless transmission (optional)Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi module for optional;
GPS (optional)Support external GPS module
Data remote transmissionSupport 3G/Wi-Fi transmission, Wi-Fi priority transmission strategy, remote download;
PTZ controlSupport PTZ control function by local remote controller or client software;
Parameter configurationSupport parameter configuration
G-sensorBuilt-in
System upgradeSupport hard disk and  SD card / Remote upgrade
Power supply & consumptionPower supply managementACC startup/shutdown; Hard disk lock startup/shutdown; Delay shutdown; Timing startup/shutdown
Input voltageDC:+8V ~ +36V
Output voltage+12V@4*0.5A;[email protected]
Power-off protectionPatent UPS power-off protection technology for optional, ensure the integrality of recording data when accidental power failure occurs
Power consumptionLess than 10W in normal working state; less than 0.5W in standby mode
Working environmentTemperatureNormal: 0 ~ +60 degree
Hard disk pre-heating: -25 ~ +60 degree
Humidity10% to 95%
DimensionH8000:142(W) x62(H) x123(D) mm,  S8000:142(W) x36(H) x123(D) mm
WeightH8000:net weight:1000g ,         S8000:net weight:550g


BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products

Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.

Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.

It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.

BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.

We specialize in:

. Vehicle Rearview Camera(CCD or CMOS)

. Vehicle TFT LCD Monitor

. Wireless Transmitter and Receiver

. Surveillance Camera

. OEM and ODM Project

BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
