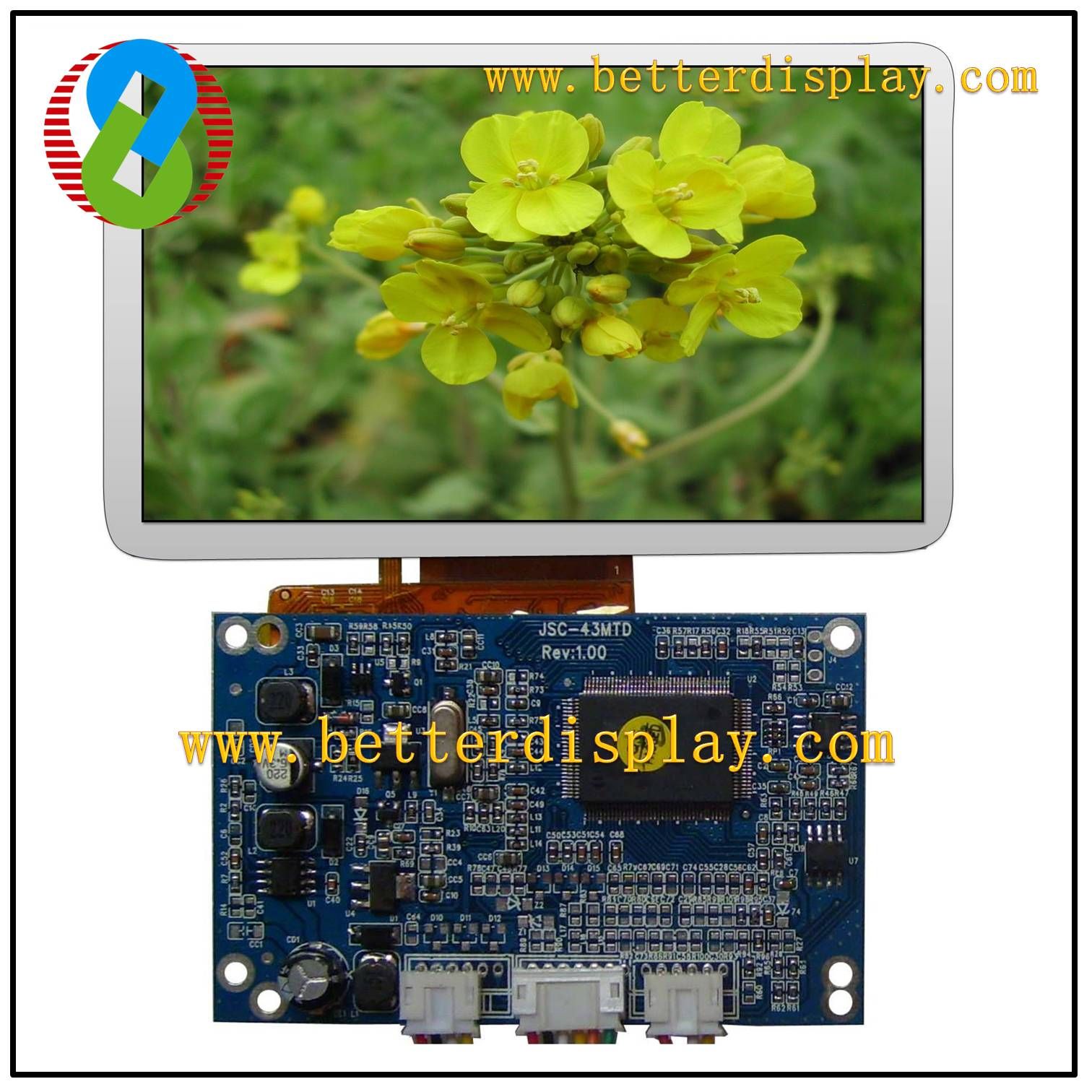

Better 4.3 Inch LCD Display TFT LCD

Better 4.3 Inch LCD Display TFT LCD
Price: US $ 35-45/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Prod Model: BT917-4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Type: 4.3 Inch TFT
Display Mode: Transmissive
Resolution: 4.30" 480*(RGB)*272
Number Of Colors: 262k
Outline Dimensions: 105.4*67.1*4.05 Mm
Driver IC: Hx8257A or Eqv.
Interface Type: RGB
Backlight: White 7 LED Series
Operating Voltage: +2.6V~3.3V
LCD Drive Mode: Multiplex Drive LCD Module
Touch Screen Type: Infrared
DOT-Matrix Graphic LCD Module Type: Row/Column Control Type
Digital LCD Module Type: Metering Module
Type: Color
Display Technology: TFT
Viewing Angle: TN+FILM
Customized: Customized

Product Description

4.3 inch LCE Display TFT LCD module LCD panel BT917-4


Quick Details
Place of Origin: Guangdong China (Mainland)
Trade properties: Factory
Brand Name: BETTER
Model Number: BT915-01
Type: TFT
Display Type: 4.3 inch TFT
Display mode: Transmissive
Resolution: 4.30" 480*(RGB)*272
Number of colors: 262K
Outline Dimensions: 105.4*67.1*4.05 mm
Driver IC: HX8257A or eqv.
Interface Type: RGB
Backlight: White 7 LED Series
Operating voltage: +2.6V~3.3V
Viewing Angle: 6 O'clock
Operating Temp: -20° C~+70° C
Storage Temp: -30° C~+80° C
-
-

Packaging & Delive
Packaging Detail: Standard Export Package
Delivery Detail: 15 - 30 days


Company Strength:
1> ISO9001 certificated Factory supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive price and Short lead-time
4> International Approvals, Military Specifications
5> In stock, samples lead-time: 1 -- 3 days.
6> Small MOQ

PAYMENT TERMS:

We accept TT, Western union


SHIPMENT:

We are via DHL/UPS/EMS/FedEx/TNT, HK POST


WARRANTY:

1 year warranty after sale the goods. Some technical issue can solved by wire.


Packaging, transportation and storage
1. Supply of packaging: If the customer fails to make the packaging, use our way of packing.
2. Transportation and storage and transportation process to avoid collision and rain or snow shower attack; It is strictly prohibited to the same database and storage of chemicals and the wet goods.
Matters needing attention
1, 4.3 "TFT-LCD screen as glass, careful handling, so as to avoid rupture.
2, 4.3 "TFT-LCD screen as glass, careful handling, so as to avoid rupture.
3, Numerical correctly connected power do not exceed the prescribed specification.
4, Connection cannot be reversed, then reverse easily burned out board, the impact on the quality of the products.
5, The drive plate for electronic products, the operation should pay attention to anti static, so as not to affect the product performance.

Standard product warranty
1, The drive plate is guaranteed for two years, except for man-made damage, after the insurance products of charge repair.
2, Liquid crystal screen a one-year warranty, except for man-made damage, repair products need to charge.
We are the manufactory of LCD LCM LED TFT LCD Touch Panel, display, screen, TN, HTN, FSTN, VA, with silk screen, pin or zebra, FPC, COB, COG, TAB, All view angle, 2.8V 3.0V 5.0V,


We had at least 50 people for research and development, Quality control, 300 workers on the production lines.


Our product Widely used on the Mobile phone, camera, MP3, MP4, GPS, DVD displayer, electronic photo album, navigation, vehicle display, display instrument, electronic, etc.


Quality control By: IQC →IPQC→OQC


Quotation FOR
LCD: 1-2days
LCM: 1-2days

Counter drawing FOR
LCD: 1-2 days
LCM: 2-3 days

Samples FOR
TN LCD: 7-10 days;
STN LCD: 10-12 days;
TFT LCM: 15 days
LCM: 20-25 days

Production time
TN LCD: 3-4 weeks; STN LCD: 4 -5 weeks; LCM: 4-6 weeks;

Best Services
Our commitment is 24 hours to solve customer complain and give the solution
No Symbol I/O Description Remark
1 LED-K P The backlight ground
2 LED-A P Power supply for backlight
3 NC - No connect
4 VDD P Supply voltage of logic control circuit
5-12 R0~R7 I Red data
13~20 G0~G7 I Greed data
21~28 B0~B7 I Blue data
29 GND P Ground
30 CLK I Dot clock signal
31 DISP I Display on/off. DISP=L:display off.
32 HSYNC I Horizontal sync input
33 VSYNC I Vertical sync input
34 DEN I Input data enable control.
35 NC - No connect
36 NC - No connect
37 XR I No connect
38 YB I No connect
39 XL I No connect
40 YT I No connect
BETTER DISPLAY GROUP LIMITED is a High-tech enterprise which established in 2010 and specializing in the production and sales of LCD and LCM.

We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.

Our company has always insisted on relying quality to seek survival, benefit to seek development. Use fine after-sale service to meet the needs of consumers. Honesty and credit. Products are sold well all over our country. Warmly welcome all fields of friends to visit our company and negotiate trade.

We sincerely welcome new and old customers at home and abroad. Let us work together to develop the international market.

Welcome to order, we will serve you.
