Bended Pins Custom 7 Segment LED Display

Bended Pins Custom 7 Segment LED Display
Price: US $ 0.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: LD3917A/B
Markets: North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Outline Dimensions: 11.2X13.5X7.8mm
Digit Height: 0.39 Inch(9.9mm)
Emitting Color: Single Color
Dp Number: 1PC
Digit Number: 1 Digit
Chip Matrial: 4-Element
Tube Chip Color: Single Color
Scanning Mode: Static Scan
Display Type: Segment LED Display
Application: Meters and Instruments
Certification: Reach
Display Function: Numbers and Some Alphabets

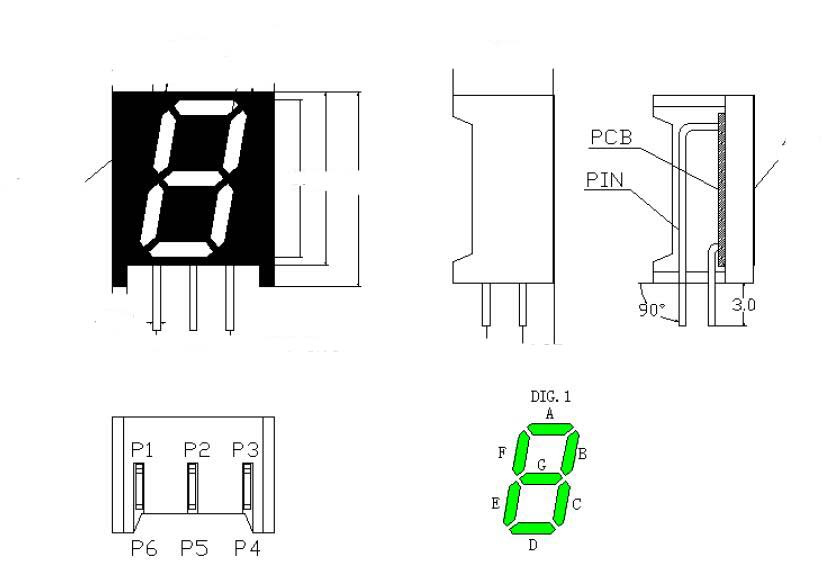

Product Description

Special for some customer, can not sell the same item but can be customized for other size with bended pins.

Features
Ø         9.9 mm (0.39 inch) digit high
Ø         Excellent digit appearance
Ø         Wide viewing angle
Ø         Range of emitted colors
Ø         I.C. compatible
Ø         Low power consumption
Ø         White segment
Ø         RoHS compliant

Available options

Ø         Alternative emitting luminosity:
Standard or high brightness version
Ø         Alternative emitted color
Ø         Alternative segment color
Ø         Alternative font
Ø         Common Cathode is available
Ø         Cropped terminal pins



CHIP

Chip Material: AlGaInP Yellow Green LED Chip
ABSOLUTE MAXIMUM RATINGS (Ta = 25ºC)
PARAMETERSYMBOLMAXIMUM RATINGUNIT
Power DissipationPD65mW
Peak Forward Current
(1/10 Duty Cycle, 0.1 ms Pulse Width)
IPEAK140mA
DC Forward CurrentIF25mA
Reverse VoltageVR5V
Operating Temperature RangeTopr / Tstg-40°C to +85°C
Storage Temperature RangeTopr / Tstg-40°C to +100°C
Solder temperature 1/16 inch below seating plane for 3 seconds at 260°C
ELECTRICAL OPTICAL CHARACTER AND CURVES (Ta = 25ºC)
PARAMETERSYMBOLMINTYPMAXUNITTEST CONDITION
(Per Chip)

Forward VoltageVF1.92.002.10VIF =10mA
Luminous IntensityIV303540mcd IF =20mA
Peak Emission Wavelengthλp-575-nmIF =10mA
Dominant Emission Wavelengthλd569572575nmIF =10mA
Spectral Line Half-WidthΔλ1/2-20-nmIF =10mA
Reverse CurrentIR-15-uAVR = 5V
















Note:
1.       Luminous intensity tolerance is ±10%;
2.       Dominant Emission Wavelength tolerance is ±5%.


How to produce this 0.39 inch bended pins LED display?

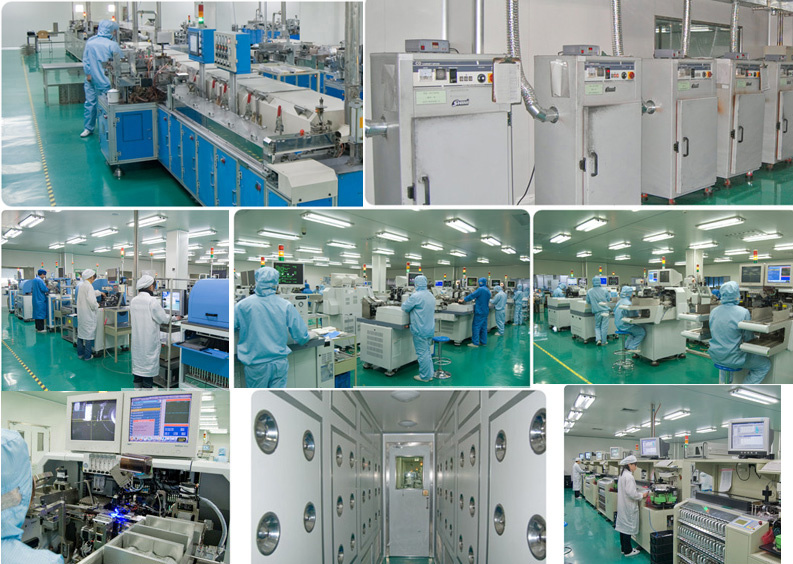

Factory viewing:
