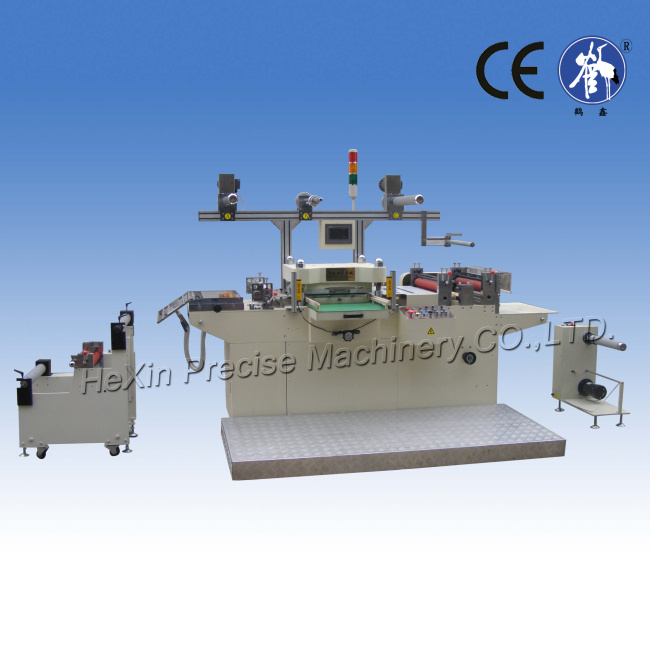

Automatic Mobile Phone Screen Protector Die Cutting Machine

Automatic Mobile Phone Screen Protector Die Cutting Machine
Price: US $ 13000-22000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
Prod Model: HX-350B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Die Cutting Area: 300*300mm/320*380mm/420*420mm
Cutting Speed: 20-200t/Min
Max Unwinding Diameter: 450mm
Max Web Width: 320mm/320mm/420mm
Precision: 0.1mm
Power: 3kw/3kw/4kw
Voltage: 380V
Weight: 2000kg/2200kg/2800kg
Dimension: 2500*900*1400mm/2600*950*1400mm/2600*1050*1800mm
Placing Form Of Template: Horizontal
Die Cutting Tool: Metal Mold
Automatic Grade: Automatic
Application: EMI Shielding Materials
Species: Flatbed Die Cutting Machine
Imprinting Type: Flatbed

Product Description

Automatic mobile phone screen protector die  cutting machine


Working video: https://youtu.be/BqXMV-Q5TR4
                            https://youtu.be/JVQYW2QvEJk
                            https://youtu.be/_yRd47tfg-c


Machine Features:

1. The telerance: +/-0.2mm, precision: 0.1mm
2. Material thickness range: 0.05-3mm
3. Both multi-layer lamination and partial lamination can be achieved;
4. Following procedure can be finished at one time: feeding material-laminating-die cutting -waste discharging-sheeting-rewinding;
5. Manufacture experience: 10 years;
6. Export experience: 5 years;
7. Holding CE and ISO certifications.

Application:


1. Sticky products: Diversified electron, electrical appliance, special mobile phone rubber cushion, silicon rubber cushion, magic tape, electric conductive tape, powerful double side adhesive, SUNEAST 3M, Sony special binding products;
2. Dustproof materials: Cosmetic cotton, camera cotton, high density sponge, filtering sponge, dust net and non-woven fabric;
3. Shock absorbing products: EVA tape, rubber cushion, PORON cushion, 3M, inflammable retardant EVA, high foam;
4. Insulation, EMI: Fireproof paper, aluminum foil, copper foil, PVC, PET, brown paper, sponge sheath, pearl cotton sheath;
5.Heat insulation material: Silicon sheet, transparent mica, fiber cloth, heat insulation cotton (fabric).

Our services:
1. Warranty Period: 12months;
2. A reply within 24 hours;
3. A free training in our factory before delivering machines.

Machine Display:



FAQ:

1.Q: Are you a manufacturer or trading company?
A: We are a manufacturer.

2.Q: Where is your factory located in? How can I get there?
A: Our factory is located in Kunshan which is very near from Shanghai, and our detailed address is: Factory 9, No. 157, Wulian Road, Yushan Town, Kunshan, Suzhou, Jiangsu, China. If you fly to Shanghai Hongqiao Airport or Pudong Airport, we can pick you up by car from there. we welcome all our clients form home and abroad to visit us.

3.Q: What are your main procducts?
A: Our main products are belt cutting machines, slitting machines, sheeting machines, laminating machines and die cutting machines.

4.Q:Which industries can use your machines?
A: All industries need to cut(including full-cutting and kiss-cutting), slit, laminate, die cut materials can use our machines.

5.Q: How to control the qualith in your factory?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE and ISO certifications.

6. Q: If there are no machines available from your list, could we customize non-standard machines from you?
A: Yes, we have our own professional design engineers, and can customize products according to your requirements.


Configuration list
Model:HX-350BAutomatic die cutting machine
ItemDescription Qty
Feeding department3'' shaft 5 sets
rubber coil2 sets
electric motor 1 set
sensor holder1 set
Laminating function
Guiding departmentguiding shafts   2 sets
Suction departmentsuction unit1 set
Die cutting  departmentupper mould1set
below mould                     1set
Exhaust functionbuffer shaft1set
exhaust shaft1 set
Safty departmentprotective cover    1 set
safe senser           1 set
safety fuse1set
Cutting departmentcutting knife1 set
Lubrication department machnical lubrication parts                        2 series
Cooling departmentfans      2 sets
PLC control departmenttouch screen   1 set
switch     8 sets
    counts sensor                    1 set
electric motor 1 set
Safe departmentguard shield1 set
Light  senser2 sets
Emergency stop1 set
Circuitry departmentsevro motor1 set
Material docking plateplate1 set

Kunshan Hexin Precise Machinery Co. Ltd is located in Kunshan city, Jiangsu province, it's only 40 minutes' away from Shanghai Hongqiao airport by car, and 18 minutes' away from Shanghai railway station by high-speed rail. The traffic is very convenient.

We are specialized in developing, manufacturing, marketing and exporting microcomputer belt cutting machines, slitting machines, laminating machines, high precision die cutting machines and silk screen printing machines. With strong technology, international quality control system and perfect after sale service, our products enjoy a good reputation at both home and aboard market.

With Japanese advanced design drawing and manufacturing technology, our machines have come up to the leading levels after continuous improvement for many years, especially in mechanical and electrical, gas and liquid fields. We own professional technical staffs, engineers, sales and after-service employees who constitute a young and well-qualified team. Our belief is "people-oriented, technology-first, integrity-centered and brand idea" and we will provide all our customers with reliable products, perfect service in order to create a brilliant future together.

Our products are widely applied in laminating, slitting and die cutting for protective materials, sticky materials, insulating materials, conductive materials, electronic materials, printing materials and so on, and sizing cutting for strings, strips, sheets, ropes, lines, belts, rolls, plates, tubes, fibre, rubber, foam, Mylar, LCD, films, tapes, PET, PVC, PC, metal foils, etc. Our machines can process all kinds of sheet materials, roll materials and so on.
