Dongguan New Times New Energy Science & Technology Co., Ltd. >> All in One Heating Pumps Water Heaters

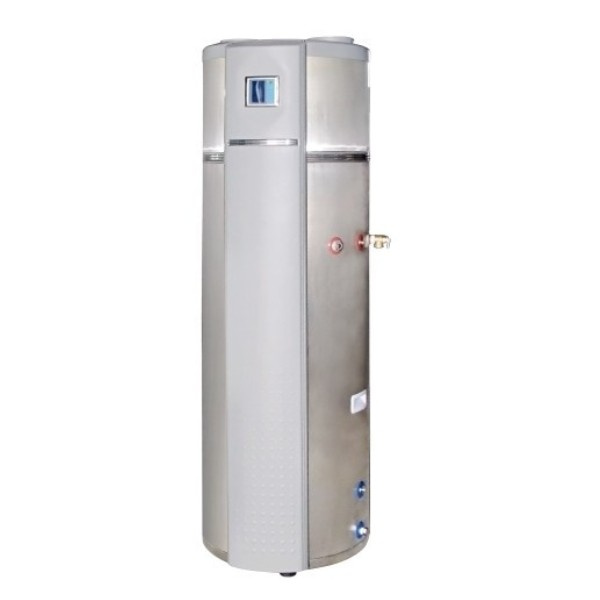

All in One Heating Pumps Water Heaters

All in One Heating Pumps Water Heaters
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: KH60/250L
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Air to Water Heat Pump
Compressor: Rotary/Scroll
Refrigerant: R314A//R410A/R417A
Ambient Temperature: -7 to 43 Degree Celsius
Power Supply: 220-240V
Max Outlet Water Temperature: 60 Degree Celsius
Cabinet: Stainless Steel
Throtting Device: Electrical Expansion Valve
Brand: New Times Heat Pump
Use: Domestic Hot Water Water Heater
Heat Source: Air-source + Water-source
Certification: RoHS
Work Environment: Common Heat Pump
Heat Temperature: 50-70??C
Application: Villa Family

Product Description

All in one heating pumps water heaters


Home all in one heat pump(hot water heater) is one of the most economical systems to heat the water for family domestic use. Using free renewable energy from the air, the unit is highly efficient with low running costs. Its efficiency can be up to 3~4 times more than conventional gas boiler or electrical heater.

R134a Refrigerant
Famouse Rotary compressor
Input power 500w
Heating capacity: 1.8kw
Rated heated water: 150L, 200L 250, 300L

Heat Pump Features

Waste heat recovery

Units can be installed outside the kitchen, in the fireplace or the garage, which has a large number of waste heat so
That the unit has higher energy even in very low outside temperature during winter.

Air source heat pump all in one


Hot water and dehumidification

Units can be placed in the laundry room or clothing room.
When it produces hot water it lower temperature and
Dehumidify the room as well. The advantages can be
Shown particularly in the humidity season.

Hot water and storage room cooling

Units can be placed in the drinks, fruits and food storage to make hot water, and to lower the temperature of the room. At the same time it keeps the food fresh. A multipurpose heat pump makes perfect effects.

Compatible with different energy source
Units can work with solar panel, external heat pump, boiler or other different energy source.


NewTimes air to water heat pump water heater production quality control:

1. Research and Development

We have more than 30 well-qualified technology elites.
Our R&D team has many years experiences of heat pump, we We have been committed to improving the COP, technology, and defrosting items.

2. Purchasing

In order to ensure heat pump quality, we purchasing department purchase good quality materials according to each model heat pump BOM list.
We demand each spare parts supplier has products testing report, and relative CCC, ISO certificates, from compressor, expansion valve and so on core material to small parts such as screw, shim and so on. Our quality department strictly inspect on all materials.

3. Production

Each worker must operate seriously according to production operating standard, pay attention to each installation link, both copper pipe welding and electric controlling connection are both finished with professional technology. Each production line will be responsible for its procedure.

4. Checking
The quality department will check each procedure of heat pump. And each heat pump water heater must be checked seriously before leave our factory, COP, heating capacity must be reach national standard, all parameters such as current, pressure, and water temperature and so on must be recorded, each heat pump test report is stored.

5. Package

The qualified heat pump is packaged by especial designed cartoon or fumigation wooden frame before send to our warehouse, avoid hitting.
6. Services:

Supply OEM service for customers.
Produce heat pump according to customer's special demands.
Supply free spare parts according to order quantity.
Long warranty period.

Sales Market
Our heat pumps have been exported to many countries in the world. Such as UK, France, Italy, Middle East, Austria and Africa and so on.

Model



XSD2-M3-150L

XSD2-M3-200L

XSD2-M3-250L

XSD2-M3-300L



Heating capacity


KW

1800W

1800W

1800W

1800W



COP













Water tank volume

L

150

200

250

300

















Outlet water temp.



45-60

45-60

45-60

45-60



Rated voltage



220V

220V

220V

220V



Rated frequency



50Hz

50Hz

50Hz

50Hz



Rated heating capacity



1800W

1800W

1800W

1800W



Average power consumption



500W

500W

500W

500W



Average input current



2.4A

2.4A

2.4A

2.4A



Electric auxiliary heat power



2000W

2000W

2000W

2000W



Electric auxiliary heat current



10.1A

10.1A

10.1A

10.1A



Max input power



700+2000W

700+2000W

700+2000W

700+2000W



Max input current



13.6A

13.6A

13.6A

13.6A



Waterproof grade



IPX4

IPX4

IPX4

IPX4



Electric shock protection class



I

I

I

I



Max water pressure



0.8MPa

0.8MPa

0.8MPa

0.8MPa



Max exchanger working pressure



3.0MPa

3.0MPa

3.0MPa

3.0MPa



Max suction/discharge pressure



0.8/2.8MPa

0.8/2.8MPa

0.8/2.8MPa

0.8/2.8MPa



Refrigerant



R134a/1.2kg

R134a/1.2kg

R134a/1.2kg

R134a/1.2kg



Outside Dimension(Diameter*Height)



560*1475

560*1760

640*1700

640*1860



Water pipes connector size



G3/4"

G3/4"

G3/4"

G3/4"



Noise



40dB ( A )

40dB ( A )

40dB ( A )

40dB ( A )



Testing condition

Heating: Ambient temp. (DB/WB): 20 °C/15°C, water temp.(inlet/outlet): 15°C/55°C.
Established in 1994, Dongguan New Times New Energy Science & Technology Co., Ltd. is one of the famous enterprises specializing in manufacturing air source heat pump water heater in Guangdong Province, China. With more than 20, 000 square meters manufacturing factory and 15 years of technology experiences of R&D, we have owned independent intellectual property right and more than 30 patented technologies.

Our main product lines, with annual output of 30, 000 sets, include household and commercial air to water heat pump, integration of heating and cooling module unit, swimming pool air source heat pump, and high-temperature air source heat pump(up to 80ºC) as well. They can provide hot water from 45ºC to 80ºC, and also for heating in winter, cooling in summer. Our products have heating and cooling capacities ranging from 9, 000 to 1000, 000BTU.

The annual output value reaches over RMB200 million. All of our products are of high quality, good appearance, durable, and well performance in low temperature environment. We used advanced production equipment and testing machines, such as America Copland Compressor, Japan Panasonic Compressor, America high efficiency shell and tube heat exchanger, Freon inspectors, and electrical safety testing equipment. What's more, we are certified by 3C, CE, ISO9001: 2000 (UKAS) and ISO14001.

Our main markets include Europe, America, the Middle East, Southeast Asia, South Africa and Australia. With a highly effective management team, modern facilities, and excellent pricing, we endeavor to offer high quality products and the latest technology for incredible success and growth. We look forward to expanding our customer base and invite you to contact us for more products and company information.
