| Prod Model: |
spa heat pump 3.8kw |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White |
| Lifetime: |
10-15 Years. |
| Refrigerant: |
R410A |
| Heat Temperature: |
50-70??C |
| Work Environment: |
Common Heat Pump |
| Heat Source: |
Air-source |
| Application: |
Beauty Salons |
| Certification: |
CSA |
| Energy Efficiency Grade: |
a Class |
Product Description

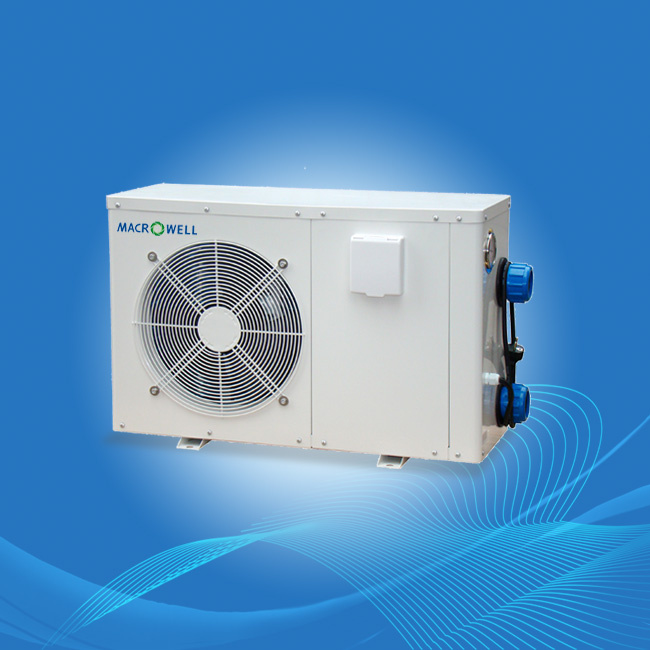

Range of V-COOL swimming pool heat pump water heater VS Series choose horizental ventilation to heat domenstic swimming pools. Galvanized steel shell is rust free even under very salty or humid circumstances. Easy to use, energy saving and trouble free. The main features of V-COOL swimming pool heat pump water heater VS series are:
*. COP>5 at air 24 Centigrade(Dry bulb), air 19 Centigrade(Wet bulb), water 27 Centigrade.
*. Military level control system
*. Capacity range from 3.8kw, 5.5kw, 8.5kw, 10.5kw, 13kw, 17.5kw, 21.5kw, 25.5kw.
*. Titanium Heater exchanger PVC.
*. Eco-friendly gas R410A
*. Lower noise level
*. Famous brand compressor
*. 60Hz is available.
*. CE&RoHS approval.
| Model No. | Unit | VS90R | VS110R | VS130R |
| Heating Capacity | KW | 8.5 | 10.5 | 13 |
| COP | W/W | 5 | 5.3 | 5.2 |
| Cooling Capacity | KW | 6.8 | 8.2 | 10 |
| EER | W/W | 4 | 4 | 4 |
| Power input | KW | 1.7 | 2 | 2.5 |
| Current | A | 7.9 | 9.5 | 11 |
| Power supply | V/P/Hz | 220/1/50 | 220/1/50 | 220/1/50 |
| Compressor Qty |
| 1 | 1 | 1 |
| Compressor Type |
| Rotary | Rotary | Rotary |
| Compressor Brand |
| Panasonic | Panasonic | Hitachi |
| Heating exchanger |
|
| Titanium in PVC |
|
| Water Flow Volume | m3/h | 3.5 | 4 | 4.5 |
| Water connection | mm | 50 | 50 | 50 |
| Fan Quantity |
| 1 | 1 | 1 |
| Fan Input | w | 85 | 100 | 120 |
| Fan Rotate Speed | RPM | 900 | 850 | 850 |
| Fan Direction |
| Horizental | Horizental | Horizental |
| Refrigerant |
| R410A | R410A | R410A |
| Noise | Db(A) | 48 | 50 | 52 |
| Net Unit Size(L/W/H) | mm | 955x305x575 | 1005x305x610 | 1005x305x710 |
| Carton Size(L/W/H) | mm | 1055x405x575 | 1140x405x640 | 1140x405x740 |
| Net/Gross Weight | KG | 54/57 | 63/67 | 74/78 |
| Cabinet |
|
| Galvanized steel, anti-rust |
| Water flow switch |
| Yes | Yes | Yes |
| Lowpressure protection |
| Yes | Yes | Yes |
| High pressure protection |
| Yes | Yes | Yes |
| Advised pool volume | m3 | 30-50 | 40-60 | 50-70 |
| Q’ty per 20FT/40HQ | sets | 120/248 | 84/232 | 84/174 |
V-COOL Electrical Holdings Co., Limited, world famous professional manufacturer of swimming pool heat pump, SPA heat pump, air source heat pump in Guangdong China. Since our establishment, V-COOL is devoted to offer high efficiency swimming pool heat pumps, SPA heat pumps, air source heat pump water heater. We always take energy saving as our developing focus and environment protection as our key mission.
The excellent quality of the V-COOL swimming pool heat pumps, SPA heat pumps, air source heat pump water heater can be ensured as we always takes the first class components from world famous brand. A group of senior engineers and skillful technicians has been recruited to safeguard the excellent quality. Strictly quality control is always being implemented by V-COOL people in accordance with international standards. Most of the models has been certified by CE/CB/RoHS/SASO directives. 3 years' warranty offered and the reputation of defect free will set your mind at ease.
Macrowell brand is the registered brand by V-COOL Electrical Holdings Co., Limited. As the top brand of V-COOL Electrical Holdings Co., Limited. Macrowell aims to offer the products of swimming pool heat pump, air source heat pump water heater with its own patened technology.
Macrowell offers full support to dealers in all business aspects. Free spare parts in certain percentage will be provided together with the shipment, this will guarantee the efficiency of after sales service and technical support to every dealer. To make the start up phase easier, the company's technical, sales and marketing team are all available and ready to help.
Technically speaking, there is only one choice Macrowell.
