| Prod Model: |
HLLA-05D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
for Air Conditioner |
| Certification: |
CE |
| Type: |
Air Handling Unit |
| Mounting: |
Ceiling Mount |
| Condition: |
New |
Product Description
Specifications
*Cooling and Heating
*Cooling capacity: 15-67.0 kw
*Heating Capacity: 15.9-71.0 kw
*CE Certificate

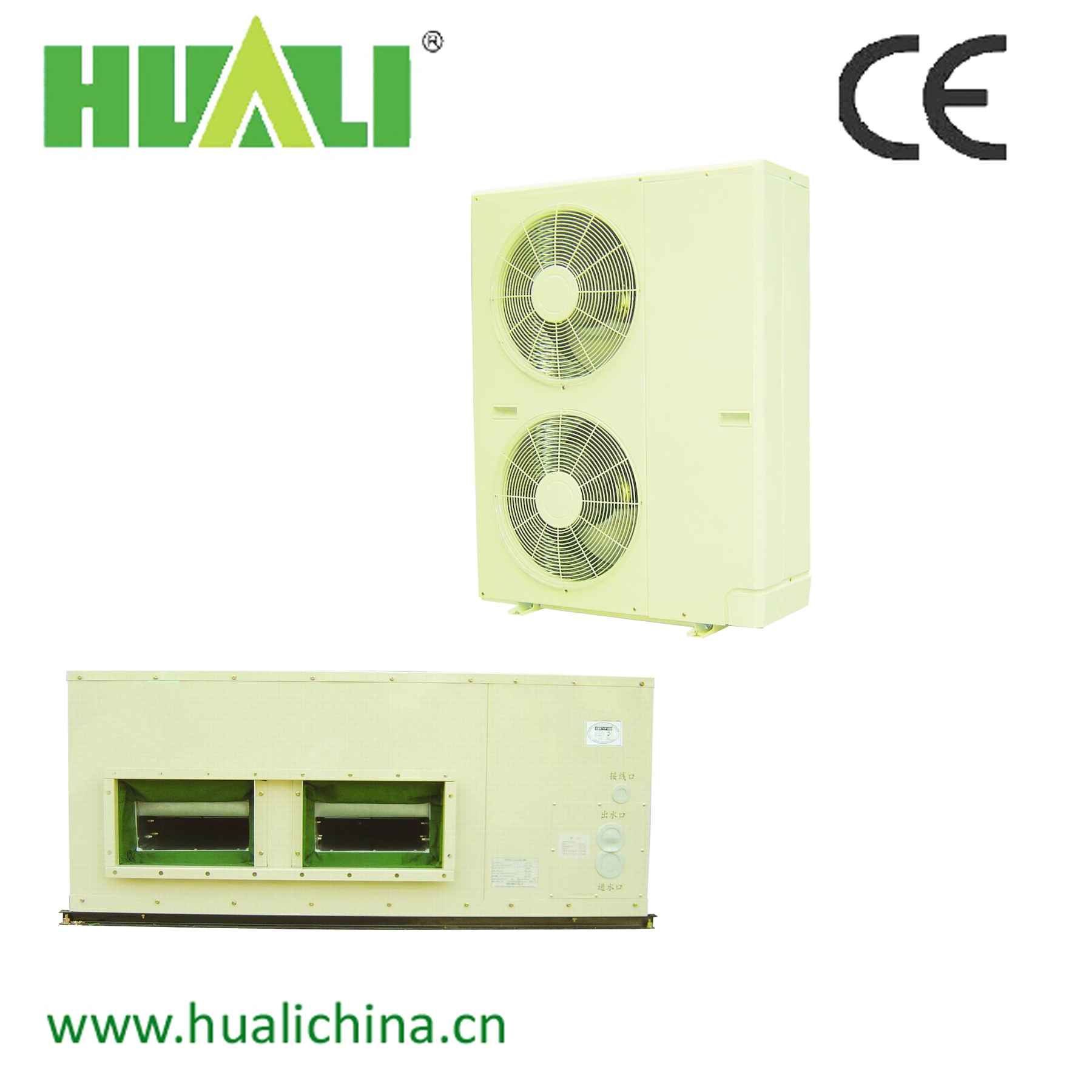

Air Cooled Ceiling Type Packaged Unit
Features
1. Separate Refrigeration System: Every compressor has its own refrigerant circuit, which can control energy easily.
2. Scroll Compressor: Special design, lower noise than the same reciprocating compressor, strong ability of liquid anti-strike, high EER, more reliable.
3. Heat Exchanger: Copper tubes with high performance aluminum fins, excellent ability of dehumidifying, high heat transfer coefficient.
4. Polyester Powder Coating electrostatic spraying three times, strong anti-erosion ability, looks as the new after a long time.
5. Intelligent Control: Easy operation; Adjust temperature automatically; Diagnose fault itself, and make it easy for examine and repair
| Model HLLA~ | 05D | 08D | 10D | 15D | 20D | 25D |
Unit Property | Cooling Capacity | KW | 15.0 | 23.6 | 29.9 | 44.9 | 60.0 | 67.0 |
| Heating Capacity | KW | 15.9 | 25.0 | 31.7 | 47.6 | 63.6 | 71.0 |
| Rated Air Flow | CMH | 2500 | 4000 | 5100 | 7800 | 10200 | 12600 |
External Static Pressure | Pa | 100 | 150 | 150 | 150 | 200 | 250 |
| Power Supply | 3PH 380V 50Hz |
Cooling Input Power | KW | 5.1 | 8.0 | 10.4 | 15.4 | 20.6 | 23.5 |
Cooling Current | A | 11.2 | 16.8 | 22.0 | 32.6 | 38.9 | 43.9 |
Heating Input Power | KW | 5.0 | 7.8 | 10.2 | 15.1 | 20.0 | 23.1 |
Heating Current | A | 11.1 | 16.6 | 21.8 | 32.3 | 37.4 | 43.5 |
Max. Input Power | KW | 7.2 | 11.3 | 14.7 | 21.9 | 28.7 | 32.7 |
Max. Current | A | 15.2 | 22.9 | 30.0 | 44.6 | 53.5 | 60.1 |
| Noise | dB(A) | ≤58 | ≤60 | ≤63 | ≤68 | ≤70 | ≤72 |
| Connecting Pipe ( Liquid) | Ø12.7 | Ø12.7/Ø9.52 | Ø12.7 | Ø12.7 | Ø16 | Ø16 |
| Connecting Pipe (Air) | Ø19 | Ø19/Ø16 | Ø19 | Ø19 | Ø25 | Ø28 |
Indoor Unit | Evaporator | Ripple Aluminum Fins around Copper Pipe |
| Centrifugal Fan | Type | Out Rotor | The Belt Transmission Centrifugal |
| Qty | 1 | 1 | 1 | 2 | 2 | 2 |
Power(KW) | 0.45 | 0.75 | 1.1 | 1.5 | 2.2 | 3 |
| Air Filter | Nylon Netting |
| Dimension | W (mm) | 1000 | 1120 | 1120 | 1700 | 1840 | 1880 |
| D (mm) | 1000 | 1100 | 1100 | 1100 | 1100 | 1100 |
| H (mm) | 560 | 710 | 710 | 725 | 920 | 970 |
| () N.W. | kg | 100 | 130 | 170 | 240 | 290 | 360 |
Outdoor Unit | Model | KA-5U | KA-5U+KA-3U | KA-5U*2 | KA-5U*3 | KA-10U*2 | KA-12.5U*2 |
| Compressor | Type | Hermetic Scroll Type |
| HP*Power*Qty | 5*1 | 5+3 | 5*2 | 5*3 | 10*2 | 12.5*2 |
| Axial Flow Fan |
Air Flow m3/h | 6200 | 6200+3100 | 6200*2 | 6200*3 | 15000*2 | 15000*2 |
| Dimension | W (mm) | 960 | 960+850 | 960*2 | 960*3 | 1000*2 | 1000*2 |
| D (mm) | 350 | 350+300 | 350*2 | 350*3 | 885*2 | 885*2 |
| H (mm) | 1260 | 1260+600 | 1260*2 | 1260*3 | 930*2 | 1088*2 |
| N.W.() | kg | 120 | 120+80 | 120*2 | 120*3 | 210*2 | 230*2 |
| Safety Protection | /,,,,,
High/low pressure switch protection, Compressor overload Protection over current protection,
Phase sequence protection,Start delay protection, Oil heater, Fuse, etc. |
