| Prod Model: |
CAM-100XB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Capacity: |
66.2kw |
| Power Source: |
380v/50hz |
| Refrigerant: |
R410a/R417a/R407c |
| Heating Capacity: |
90kw |
| Certification: |
CE |
| Usage: |
Air Conditioner |
| Type: |
Heat Pump |
Product Description
High efficiency & energy saving
Safe & Comfort
Convenient & widely to use
Easy to install
Low noise and Long operating life

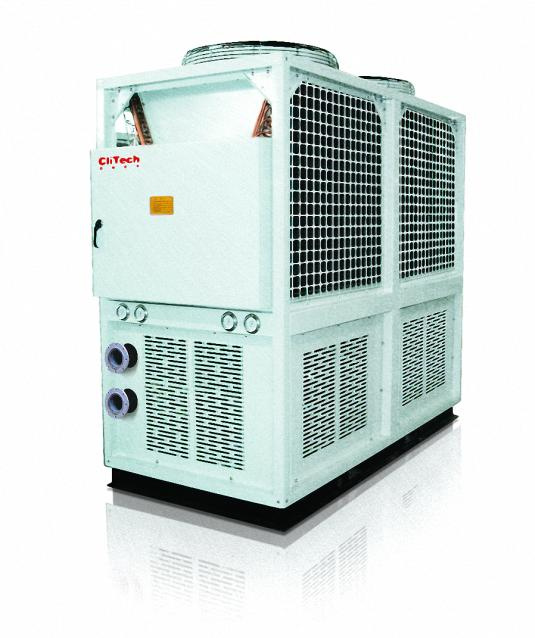

Model: CAM-100XB
Performance
Water heater
Heating capacity: 90kw
Heating water flow: 1.94T/h
Rated current: 34.87A
Power: 18.66kw
Water chiller
Cooling capacity: 66.2kw
Water flow: 11.39m3/h
Rated cooling current: 41A
Power: 22.4kw
Heating for A/C
Heating capacity: 70.8kw
Water flow: 12.18m3/h
Rated heating current: 40A
Power: 22kw
Chiller and water heater
Cooling capacity: 61.2kw
Water flow: 10.52m3/h
Heating capacity: 77.6kw
Heating water flow: 13.35T/H
Rated input current: 32A
Power: 17.3kw
The rated outlet water temp: 55º C
The max outlet water temp: 60º C
Power source: 380V/50Hz
Noise: 60dB(A)
Dimensions: 2205*1030*2090mm
Weight: 930kg
Refrigerant: R410A/R417A/R407C
Compressor: Copeland, SANYO, daikin, Hitachi
Protection: Built-in protection device overheating protection, sequence protection, undervoltage protection, delay protect
Rated hot water working condition: Air-source side air inlet dry bulb temp is 20º C, wet bulb temp is 15º C. Inital temp of hot water is 15º C, termination temp of hot water is 55º C.
Rated cooling working condition: Air-source side air inlet temp is 35º C. Use-side water inlet temp is 12º C, outlet temp is 7º C.
Rated heating working condition: Air-source side air inlet dry bulb temp is 7º C, wet bulb temp is 6º C. Use-side water inlet temp is 40º C, outlet temp is 45º C.
Cooling with heating working condition: Inital temp of hot water is 15º C. Termination temp of hot water is 55º C. Air-condition water side water inlet temp is 12º C, outlet temp is 7º C.
