| Type: |
Water Mist Fan |
| Material: |
Metal |
| Installation: |
Box |
| Certification: |
CE |
| Remote Control: |
With Remote Control |
| Timer: |
With Timer |
| Application: |
Household |
| Power: |
<100W |
| Power Supply: |
Electric |
| Speed: |
1 Speed |
Product Description

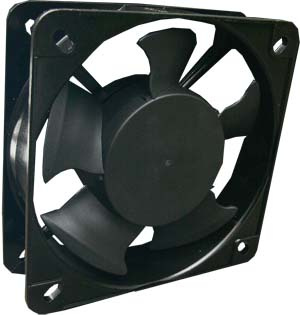

AC Fan Size:
120 x 120 x 38mm (4.71 x 4.71 x 1.50inch)
Motor: Shaded Pole
Frame: Aluminum Die-Cost
Impeller: PBT + 30% Fiber Glass. UL94V-0
Lead Wire: 1007# 22AWG. UL/CSA
Insulation Resistance
Min 10 M 0hm at 500VDC between terminal and the frame
Dielectric Strength
1 min at 1, 500VAC 50/60Hz
Bearing Type:
B: 2 Ball Bearing
S: Sleeve Bearing
Operating Temp: Ball Bearing: Within -20 ~ 80 C Sleeve Bearing: Within -10 ~ 56 C
Life Expectancy: Ball Bearing: 50, 000 hours at 60 C
Sleeve Bearing: 20, 000 hours at 45 C
Veton technology specializes in manufacturing all kinds of cooling fan and under "hui tong" brand in China.
Veton was founded in dongguan in 2000, our main products include DC fan, AC fan, blower, crossflow fan, CPU cooler etc and are from designing, developing, producing to selling. We can offer wide range of DC brushless fans that are operating voltages from 12vdc to 48vdc and AC axial fans that are operating voltage from 110vac to 230vac.
Hui tong's products are adopted with accessories for personal computer & related applications to other functional subassemblies for home appliance, AV products, and other products which need better cooling, dehumidifing, and deodorizing capability.
Hui tong is an ISO-9001 registered company, all of our fans have the safety standard of UL & CE & TUV and RoHS compliant.
