| Prod Model: |
PH4600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Series: |
pH |
| Function: |
Post Amplifier |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
4 |
| Used For: |
Professional |
| Usage: |
Club, Disco, Dancing Hall, Theater |
Product Description

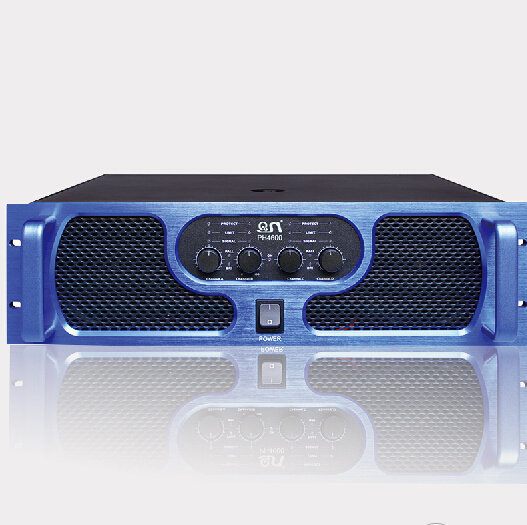

Class-Td 4 Channel 600W Professional Power Amplifier (PH4600)Featues:
1) The new CLASS-TD type 4-channel professional amplifier, high efficiency, pure sound quality, low heat;
2) Circulating transformer power supply, low-frequency more powerful, better strength;
3) Efficiency cooling system, the chassis internal and surface temperature is very low;
4) Ultra-perfect protection system, high frequency protection, overland/overcurrent protection, over temperature protection, output short circuit protection, DC protection,distortion limiting protecton;
5) Unique boot volume gradually large function, can protect your misoperation damage to the speaker;
6) Small, lighter chassis containing more power, very easy to tour applications;
7) SMT chip technology, more stable performance.
8) Professional- grade fever capacitance, low frequency more intensity, clean and clear treble.
| Model | PH4600 | PH2600 |
| Power 8Ω | 600W×4 | 600W×2+450W×2 |
| Power 4Ω | 1000W×4 | 950W×2+650W×2 |
| Frequency response | 20Hz-20KHz,( +0,-0.3dB,1%Power) | 20Hz-20KHz,( +0.5,-0.5dB) |
| Signal to noise | 102dB | 95dB |
| channel divided | ≥70dB(1KHz) | ≥70dB(1KHz) |
| Input sensitivity | 1.0V | 1.0V |
| THD | ≤0.08%(8Ω.1KHz,1%Power) | ≤0.08%(8Ω.1KHz,1%Power) |
| Input impendance | 20KΩ(Balance input,stereo mode)/10KΩ(Balance input,Balance input) | 20KΩ(Balance input,stereo mode)/10KΩ(Balance input,Balance input) |
| Supply power | 5000W | 4500W |
| Conversion rate | ≥10V/us(8Ω,10KHz) | ≥10V/us(8Ω,10KHz) |
| Net weight | 28.5KG | 27.5KG |
| Size(mm) | 483W×468D×132H | 483W×468D×132H |
| Package size(mm) | 600W×590D×190H | 600W×590D×190 |
| Model | PH4400 |
| Power8Ω | 450W×4 |
| Power4Ω | 650W×4 |
| Frequency response | 20Hz-20KHz,( +0.5,-0.5dB) |
| Signal to noise | 95dB |
| channel divided | ≥70dB(1KHz) |
| Input sensitivity | 1.0V |
| THD | ≤0.08%(8Ω.1KHz,1%Power) |
| Input impendance | 20KΩ(Balance input,stereo mode)/10KΩ(Balance input,Balance input) |
| Supply power | 4000W |
| Conversion rate | ≥10V/us(8Ω,10KHz) |
| Net weight | 26.5KG |
| Size(mm) | 483W × 468D × 132H |
| Package size(mm) | 600W × 590D × 190H |
![]()
![]()
![]()
![]()
![]()
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
