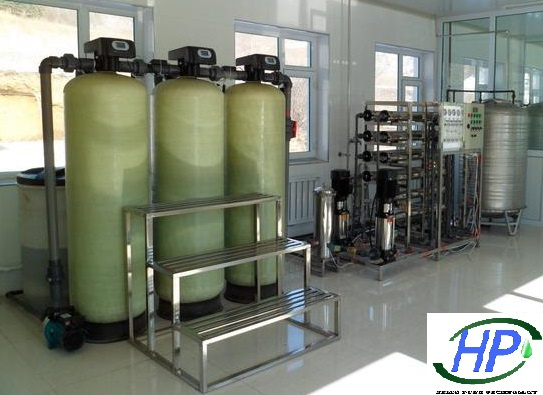

9000lph RO Purifier for Industrial System

9000lph RO Purifier for Industrial System
Price: US $ 20000-60000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: 9000lph
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand: Hellopure
Control: Automatic
Model: 9000lph
Capacity: 9000lph

Product Description

9000LPH RO SYSTEM

1.The process of RO water treatment system

Raw water-- Raw water tank --Raw water pump --Quartz sand filter-- Active carbon filter-- Security filter-- high pressure pump-- RO system--UV sterilizer--Pure water tank

1). Raw water pump-- provide the pressure to quartz sand filter/active carbon filter
2). Quartz filter-- get rid of turbidity, suspended matter, organic matter, colloid, etc.
3). Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc.
4). Water Softener--using ion exchange resin to exchange "ions" of calcium and magnesium is the most common and the easiest method of removing hardness of water and render the water suitable for utility purpose
5). Security filter--It is also called cartridge Filter, prevent any deposition of large Particles, most of the bacteria, and viruses into the UF membrane and RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6). High pressure pump-- The high pressure pump is used for make sure there are enough water for satisfying designed production capacity.
7). RO (reverse osmosis) system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic

2.Application field:

1). Electronics
2). Power system
3). Metallurgical industry
4). Chemical industry
5). Medical and pharmaceutical industry
6). Foods and beverage industry
7). Treatment of industrial sewage and waste water
8). Brackish water desalination etc

3.The feature of Reverse Osmosis system water filter

1). Can production water continuously and highly automatic
2). No need the chemical regeneration, easy operation
3). RO system choose the import USA DOW membrane
4). Automatic switch on when low water level, and switch off when high water level
5). RO membrane can backwash automatic and reduce thepollution.
6). Water shortage protection for multi-stage pump
7). Porduction water condutivity meter can test the monitoring quality on line contionuosly.
8). Low operation Cost and Long life span
9). It is PC program controller
10). Easily control and Maintained.
11). Auto membrane flushing
12). Environmental protection, Low power consumption
13) Auto flush/backwash
14) Low /high pressure protection
Model No.Capacity      (M3/H)Power (kw)Recovery Rate (%)Size        LX W X H (mm)
HCRO-2500.251.5502500X1000X2800
HCRO-5000.51.5502500X1000X2800
HCRO-100012503500X1200X2800
HCRO-20002450-606500X1500x2800
HCRO-300034.555-657500X1500X2800
HCRO-400046.555-657500X1500X2800
HCRO-500051160-7010000X2500X3500
HCRO-600061160-7010000X2500X3500
HCRO-800081860-7010000X3500X3500
HCRO-10000102060-7010000X4000X3800
HCRO-20000203070-7515000X5000X5000
HCRO-30000304070-7520000X6000X5000
HCRO-50000505070-7530000X8000X5000
