Hunan Huayuan Display Technology Co., Ltd. >> 8 Inch TFT LCD Display 800X600 50pin with Touch Panel

8 Inch TFT LCD Display 800X600 50pin with Touch Panel

8 Inch TFT LCD Display 800X600 50pin with Touch Panel
Price: US $ 29.8/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: GH800480-80M01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LCD Size: 8.0 Inch(Diagonal)
Driver Element: a-Si TFT Active Matrix
Resolution: 800 X 3(RGB) X 480
MCU Interface: 8-Bit/16-Bit 8080 4-Wire Spi
Controller IC: Ra8875
Active Area: 176.64 X 99.36mm
Module Size: 207.8X120.9X 9.1mm Max.
Color Arrangement: RGB-Stripe
Screen Size: ≤17"
Application: Taxi
Aspect Ratio: 16:10
Feature: Touch Display
Type: TFT
Widescreen: Not Widescreen
Response Time: 6ms
3D: 3D
Optimum Resolution: 800X480
Interface Type: RGB

Product Description

1LCD size  8.0 inch(Diagonal)
2  Driver element    a-Si TFT active matrix
3 Resolution   800 X 3(RGB) X 480
4 Display mode   Normally White, Transmissive
5 Dot pitch   180.1 x 103.4mm
6 Active area   176.64 x 99.36mm
7 Module size   207.8x120.9x 9.1mm Max.
8  Surface treatment  Anti-Glare



2 Gerneral Specification
8 inch tft lcd display 800x600 50PIN with touch panel

Place of Origin:Guangdong China (Mainland
Brand Name:Huayuan

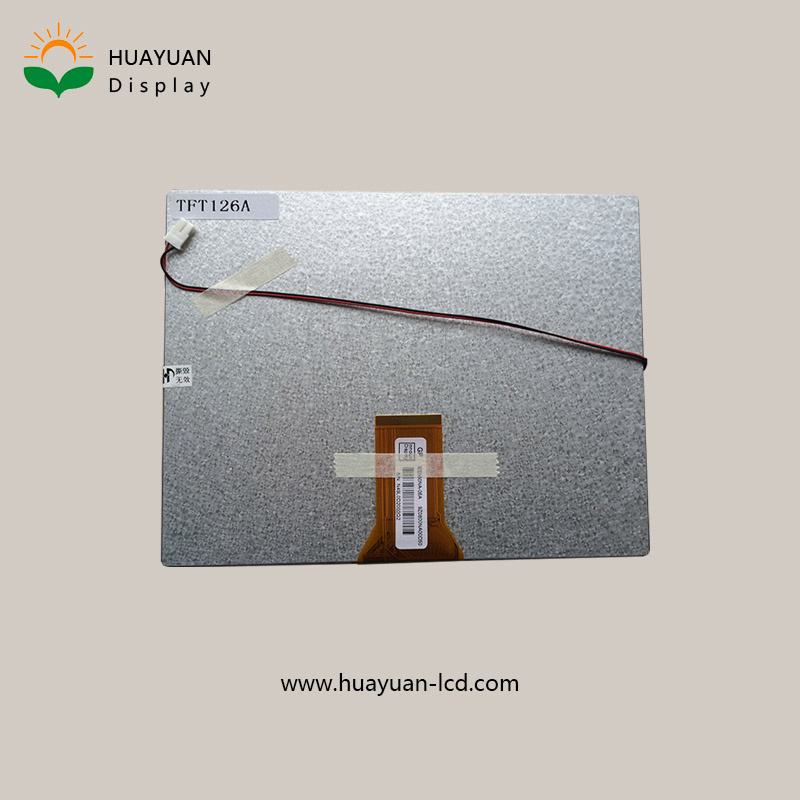

Model Number: TFT126A

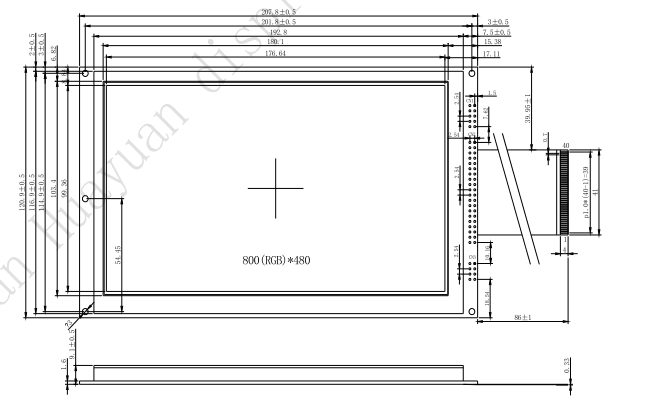

Drawing








We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.

The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.

Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.

Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of

Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.

Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
