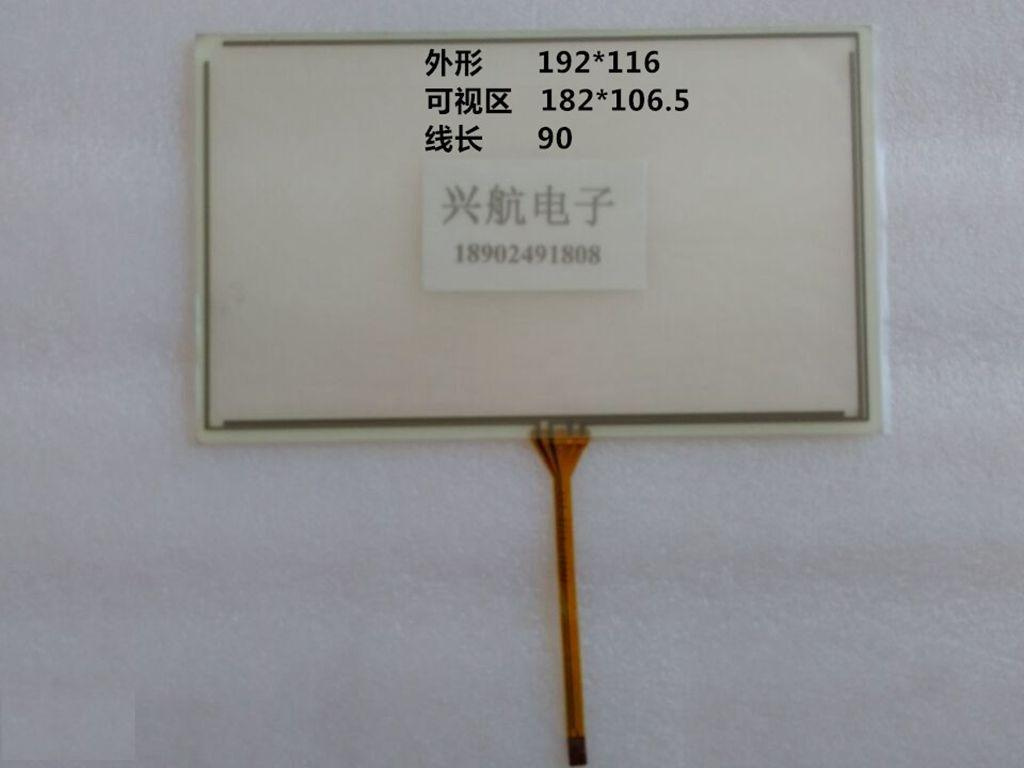

8.2 Inch Touch Screen (high quality)

8.2 Inch Touch Screen (high quality)
Price: US $ 2-16/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1--50
Screen Size: 5-15 Inches
Aspect Ratio: 16:9
Application: Industrial Control System
Screen Type: Resistive
Resistive Touch Screen Type: Digital
Customized: Customized

Product Description

Specifications : 4 Wire Resistive Touch Screen/Touch Screen/Resistive Touch Screen   1.1 Environmental characteristics: NO. Item                                                                   Specification       1 Operation temperature                                     -10°C~+60°C 2 Storage temperature -20°C~+70°C 1.2 Electrical characteristics : NO. Item Specification Remarks 1 Rated Voltage DC 5V 1mA 2 Linearity 1.5% Load 120gf 3 Resistance Film side: 200Ω~1250Ω FPC At connector Glass side:100Ω~500Ω 4 Insulation Resistance 20 MΩ DC 25V Mechanical characteristics: NO. Item                             Specification                                                   Remarks           1 Operating force 20-150g R0.8 2 Hardness of surface ≥3H JISK5400 3 Light Transmission ≥80% 4 FPC Bending Bend radius 1.0mm,above 3 times Content 3.2 5 FPC peeling strength Horizontal direction 180degree,0.5kgf Will not peel within 10 minutes Content 3.2 Reliability test : NO. Item                                   Specification                                                             Remark 1 High temperature storage 50°C, 40hr 2 Low temperature storage -30°C, 40hr 3 High temperature high Humidity storage 70°C,70%RH,120hr 4 Temperature Cycling -20±2°C - 70±2°C (0.5hr each),10cycles 5 Input life More than 5,000,000 times (Tip R0.8mm) 6 lineation test More than 100,000 times (Tip R0.8mm) 7 Life cycle 4 wire >1,000,000 cycle 5 wire > 35,000,000 cycle 8 wire > 4,000,000 cycle
Since 2006, E-sun electronic provide customer with customerize designed and Input Devices and interface technology.

E-sun electronic believe that we stand by creat value for customer. Base on China, we support customer the most competitive price.

All materials is RoHS compliance.

2006 E-sun shenzhen established with membrane switch, nameplate, graphic overlay, domed label market

2007 invested for kapton circuit and PCB

2010 invested for silicon rubber(elastomer) keypad

2012 invested touch panel and touch display(touch monitor)

2013 invested capacitive switch keypad

2014 Setup Hongkong E-sun office for oversea market

2015 invest to office device

Product

*Touch panel

*Resistive touch panel(4 wire, 5 wire and 8 wire) from 3.5inch to 23 inch

*Project capacitive touch panel from 1.8 inch to 32 inch

*Membrane switch/graphic overlay

*Elastomeric keypad

*Metal keyboard

*Customerize plastic products and metal products

*PCB and regid Flexiable print circuit(kapton and PET)

*Value add assembly service

*Bar code scanner and laser scanner

Appliance:

Medical device

Industry control

Aerospace and defence

Comsumer

Automative

Other
