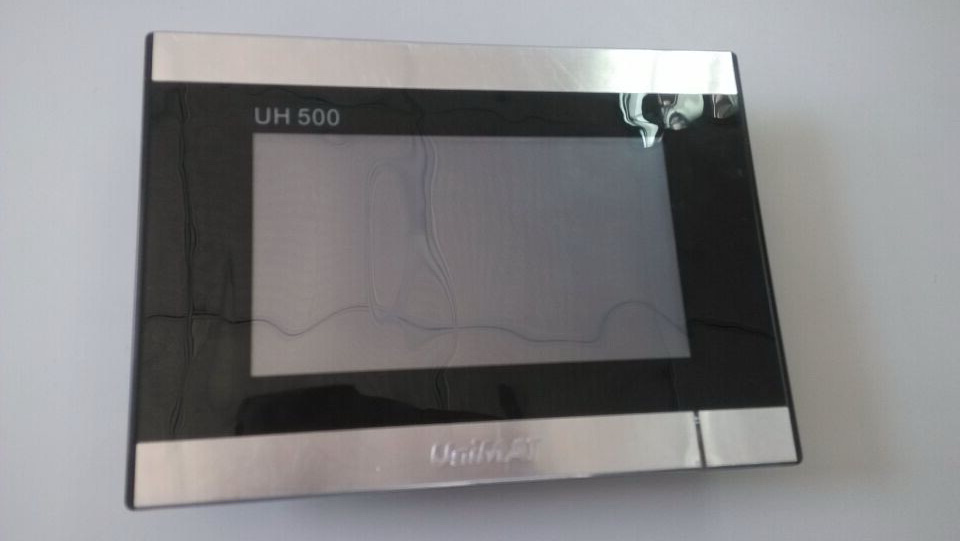

7" TFT Color Touch Screen HMI with Ethernet Port

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Send Inquiry

Showroom Product Company Profile

Prod Model:	UNSK070AS UNSK070BS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Payment Term:	T/T, Paypal, Western Union
Transportation:	TNT, DHL, FedEx, Aramex, UPS, etc.
Trade Term:	FOB Shenzhen
Net Weight:	2.8kg
Delivery Time:	2 Business Day After Payment Confirmed
Screen Size:	5-15 Inches
Aspect Ratio:	16:9
Customized:	Customized

Product Description

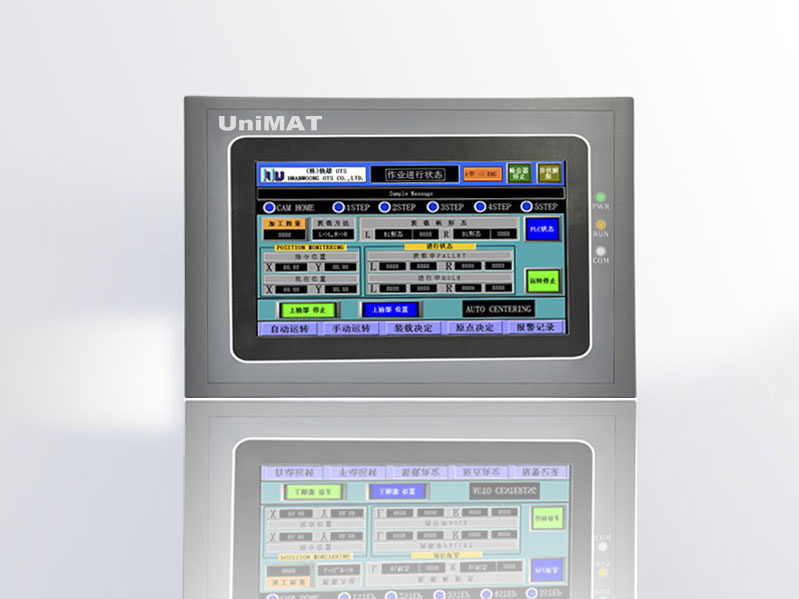

7" HMI Touch Screen with Ethernet Port

UNSK070AS UNSK070BS

Characteristic:
1. 7" TFT Color LCD
2. 16: 9 800*480 resolution
3. Color: 262144
4. USB Download/USB/RJ45 ETHERNET PORT/SD Card, ,
COM1: RS232/422/485, COM2: RS232/422/485
5. CPU Speed: RISC 400MHz
128M Flash + 64M DDR2(SDRAM)

Specifications	Items	UNSK-070AS; UNSK-070BS
Display	Dimension	7" ( Length x Width = 16:9 )
	Resolution	800 x 480
	Touch Panel	4- wire high precision touch panel
	Display Color	266,144
	Backlight Unit	LED
	Contrast	400:1
	Brightness	450cd/sqm
SD Card		Yes / Yes
Memory		128M/FLASH + 64M DDR
CPU		32-bit 400MHz RISC
Protection Grade		IP 65 Front Panel
Housing Material		Engineering Plastics: ABS+PC
Power Supply	Power Supply	DC24V(+/-15%)
Power Supply	Power Consumption	6w
Interface	Serial Interface	COM1: RS232/422/485 and COM2: RS232/422/485
	USB Download Port	Yes / Yes
	USB	Yes / Yes
	RJ 45	Yes / Yes
Environment	Operation Environment Temperature	~10 to 65C
	Operation Environment Humidity	10 ~ 90% RH
	Anti-Vibration	10-25Hz( XYZ direction 2G/30 minute)
Mechanical	Dimension (widthheightdepth mm)	AS: 228 x 154 x 41mm BS: 203 x 145 x 40mm
	Cut-out (width*height mm)	AS: 211 x 145mm BS: 192 x 138mm
	Weight	1.5kg

History:

UniMAT Automation Technology Co., Ltd established in 2004.

With the philosophy "based on quality, morality, and be surpassing by heart with concentrated attention", we are now in the leading fleet of China Industrial Automation.

Business range:

We focus on the field of core control, create UniMAT brand, self-research and self-production PLC, HMI, servo driver, converter, industry specialized controllers and other automation products.

We also provide systematic comprehensive solutions for equipment production and system integration.

Company profile:

Our enterprise has good relationship with colleges and universities and builds research centers in Shenzhen and Wuhan.

35% of our employees are R&D engineers. All of these help our company win the title of "state-level high-tech enterprise" and "software enterprise".

Application:

Over the past few years, our products are widely used in the field of metallurgy,

Chemical engineering, environmental protection, renewable energy, electric vehicles, logistics etc.

We are dedicated ourselves to develop Chinese high-end equipment manufacturing.

Service:

We pay serious attention to the product quality, providing 3-year free quality warranty for PLC products and 18-month quality warranty for other products.

Sales:

At present, we have set up over 20 branches in Beijing, Shanghai, Guangzhou and other cities to form service site nationwide.

At the same time, our international business has expanded to more than 20 countries and districts,

And won good reputation widely.

Target:

Our mission is using technology to enhance human productivity,

And striving for being a global respected leading enterprise in industry automation field.
