| Prod Model: |
PQ529YSD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Western Europe |
| Outline Size: |
160.9*96.8 Mm |
| View Area: |
156.5*89.1mm |
| Drive Voltage: |
DC 3V |
| Connector: |
FPC |
| Glass Thickness: |
0.7mm |
| Product Name: |

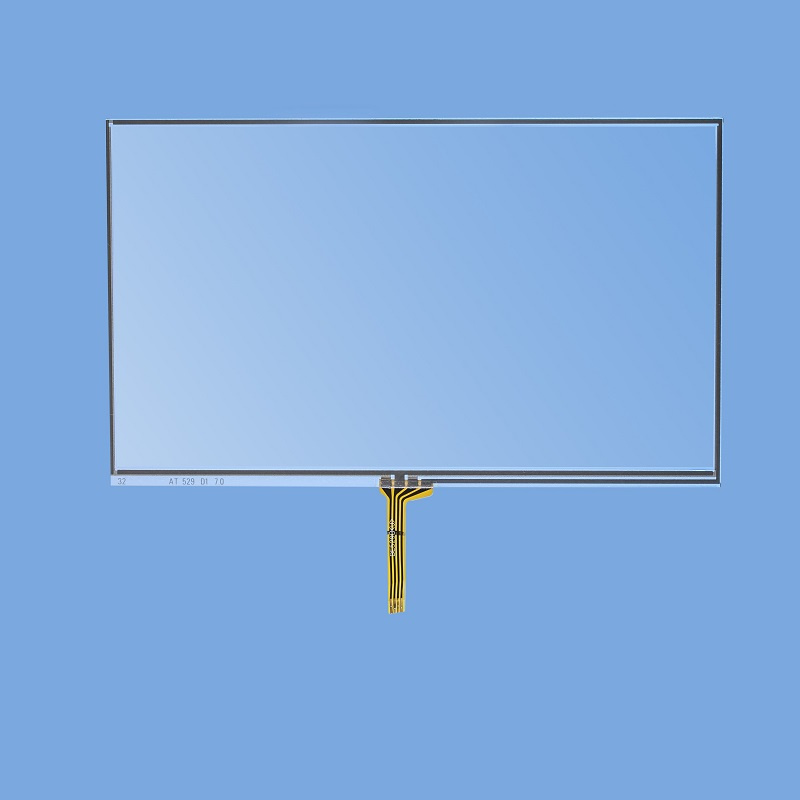

7 Inch Resistive Touch Screen |
| Screen Size: |
5-15 Inches |
| Aspect Ratio: |
16:9 |
| Resistive Touch Screen Type: |
Analog |
| Screen Type: |
Resistive |
| Customized: |
Customized |
| Application: |
All Applications |
Product Description
7 inch resisitive Touch screen Specifications:
Touch Type: 4 wire Resistive touch screen
Screen Size: 7"Diagonal
Drive voltage: DC 3V
Connector: FPC
Response Time: <10 ms
Activation Force: 60-100 grams per square centimer
Positional Accuracy: 3mm maximum error
Light Transmission: Film +Glass>75%
Scratch Resistance: 3H pencil hardness
Life Expectancy: Over 1 million
Operating Temperature: -20º C ~+70 C
Storage Temperature: -30º C ~ +80 C
Choices of Glass Thickness: 0.7mm, 1.1mm, 2.0mm, 3.0mm, 5.5mm, Single film, double film selectable
Mechanical drawing and pinouts:
Lummax Electronics Co., Ltd is a high-tech manufacturer specialized in the manufacturing of LCD panel, LCD module in China.
We produce LCD panels of TN, HTN, STN, FSTN type and LCM (including touch panels), among which most are customized.
Lummax Electronics Co., Ltd has total 400 employees, among them 15 R&D staff and 40 QC personnel. Our production plant occupies a total area of 8, 000 square meters. We are equipped with an advanced full-automatic LCD production line and several precision COG, COB and TAB production lines. We are able to meet all demands from our customers in booming seasons and ensure timely deliveries.
Our products have been widely used in the fields of instruments, meters, home appliances, telecommunications, industrial equipments, vehicle electronics and digital display clocks, etc.
We attach great importance to improving product technology and continuously improve product quality. We are also an ISO9001 certified company!
Send your inquiries now for product details and the most competitive price!
