| Prod Model: |
BIF-5TA |
| Ice Shape: |
Flake Ice |
| Certification: |
CE |
| Condition: |
New |
Product Description
Flake ice, with its exclusive physical character, it is the most popular type ice in commercial and industrial cooling/temperature keeping area.
1, appearance about 10-40mm irregular size, thickness 2mm, very dry, temperature -5ºc.
2, flake ice is small chips, no sharp edges, will not break mixture or processing machine.
Flake ice machine features:
1, Full automatic working, no workers need monitor the machine during its working.
2, machine can design according to your workshop layer,special application or local environment feature(split type for space saving, air cooling&water cooling&evaporating cooling, for food industry, cooling application.)
3, ice flakes 10-40mm irregular size, thickness 2mm, very dry, temperature -5ºc.
4, flake ice is small chips, no sharp edges, will not break mixture or processing machine.
5, easy install, after receive machine, you only need connect water and electric then can start produce ice flakes.
6, large scale ice can produce, one single machine max can produce up to 60tons ice.
About us:
We are flake ice making machine manufacture business cover the flake ice machine capacity from 200kg/day up to 60tons/day, and as well its flake ice evaporators, we supply the general flake ice machines, as well the integrated solutions for your engineering project(ice making, ice transport, ice storage, ice delivery etc.)
We manufacture the machine in our own factory, which means you will get constant technical support and quality guarantee during the machine whole life.
We welcome your visit our factory at any time and do business with us!

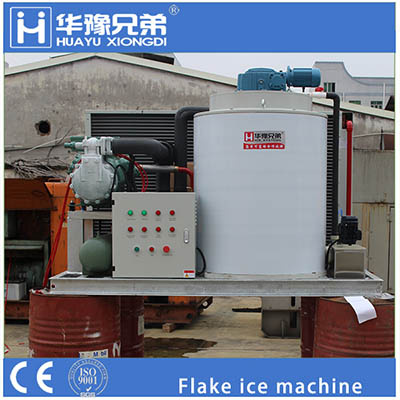

5t per day flake ice machine parameters:
| No. | Name | Spec. | Remark |
| 01 | Capacity | 5T/24h | |
| 02 | Cooling capacity | 37.8kW | |
| 03 | Evaporating temp. | -20ºC | |
| 04 | Condensing temp. | 40ºC | |
| 05 | Standard environment temperature | 25ºC | |
| 06 | Standard water temperature | 20ºC | |
| 07 | Power install | 22.84KW | |
| 08 | Compressor | 20.3KW | 25HP |
| 09 | Reduction gear | 0.37KW | |
| 10 | Water pump | 0.12KW | |
| 11 | Condensing pump | 1.5KW | |
| 13 | Power supply | 380V/50Hz/3P | |
| 14 | Water pressure | 0.1Mpa-0.5Mpa | |
| 15 | Refrigerant | R404a | |
| 16 | Ice temperature | -5ºC | |
| 17 | Flake ice thickness | 1.8mm
(1.5mm-2.2mm adjustable) | |
| 18 | Water pipe | 3/4" | |
| 19 | Net weight | 1050kg | |
| 20 | Machine size | 1800*1500*1470mm | Without bin |
Huayu Brother ice systems is an integrated refrigeration equipment manufacturer found in 1992, since we found we have focus on provide clients throughout global state-of-art product include:
L Supermarket freezer series include -25º C island freezer, -5º C cooling freezer, -5º C beverage cabinet.
L Flake ice machine include freshwater ice machine and saltwater ice maker 500kg to 60T for commercial and industrial use.
L Slurry ice machine 1T to 30T produce half ice half water for seafood products preservation.
L Cube ice machine 20kg up through 10T that produce sanitary gourmet or diamond ice cubes for human eat.
L Tube ice machine 1T to 30T for ice factory ice selling application.
L Block ice machine 500kg to 100T which include 2 series of: Traditional brine tank type-ice blocks for cooling application, and advanced direct cooling type-ice blocks is sanitary enough for human eat.
L New coming snow ice making machine (Bingsu machine) for beverage shop.
L Automatic ice storage and ice delivery systems (pneumatic ice transport and mechanical screw conveyor).
L We also supply ice machine evaporator that is our knocked-out products.
Huayu Brother ice systems holding shares of 4 factory across China in Beijing, In Zhengzhou and in Shenzhen city. That enable provide you various kinds of refrigeration equipment with the shortest delivery time. And our strong shipping department have connection with forwarder throughout the whole world that can delivery goods by air, by sea or by express send to your location exactly.
