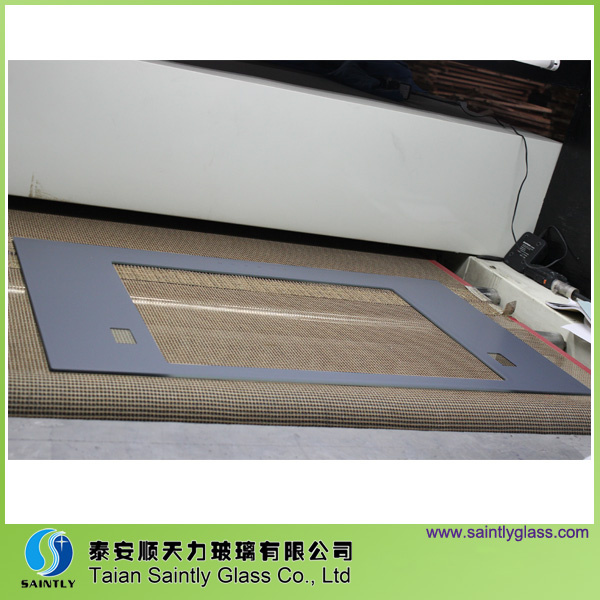

5mm Silkscreen Printing Glass
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
5mm silkscreen printing glass |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Glass Raw Material: |
Clear Float Glass |
Tempering: |
En60598 |
Edge Shape& Edge Work: |
Straight Edge, Edges Polished |
Printing: |
Silk Screen Printing with Black Ceramic Color |
Drilling&Waterjet: |
No Drilling, Middle Area Cut out by Waterjet |
Package: |
Plywood Crates with Paper Interlayer |
Certification: |
CCC |
Surface Material: |
Ceramic / Glass |
Type: |
Kitchen Silkscreen Printing Glass |
Product Description
Why choose us?
1. 8 years experience on glass processing
2. Comply with EN, AS/NZS, ASTM, GB standard.
3. Well equipped with world advanced equipments.
4. 5-15 days fast delivery time.
5. Strict quality control management.
6. Safe wood/plywood packing
7. Competitive price and quality.
Processing Capacity and Main Technical Parameters:
No. | Equipments | Processing Capacity and Main Technical Parameters |
1 | cutting machine | max. 3700*2600, precision: ±0.2 |
2 | CNC processing center | min. 100*100, max.1000*2200, precision: ±0.2 |
3 | Tempering furnace | Flat glass: min.φ180mm, max. 4000*1300mm; Curved glass: 350×280, 1300×1000. Minimum bending radius: 3.2-6mm: R≥450mm; 8-12mm: R≥1000mm |
4 | straight edge double edger | processing range: 120-2000mm, thickness: 3-25mm, parallelism error: ≤0.1mm/m, diagonal≤0.5mm/m) |
5 | pencil edge double edger | processing range: 80-1500mm, thickness: 3-25mm, parallelism error: ≤0.1mm/m, diagonal≤0.5mm/m |
6 | beveling machine | min: 60*60mm, thickness: 3-19mm, angle: 0-30°, length of bevel edge: 0-30mm |
7 | corner-rounding machine | processing range: R3-R80, precision: ±0.5mm |
8 | Water-jet cutting machine | 1500*2500, precision: ±0.5mm |
9 | silk-screen printing machine | printing area:max.1300*800 |
Production Range:
1 | Glass Material | clear float glass, low iron glass(ultra clear float glass), bronze glass, grey glass(smoke grey glass), blue glass, patterned glass, borosilicate glass, ceramic glass, frosted glass(acid etched glass), sandblasted glass, low-e glass, AR glass, AG glass, etc. |
2 | Size | according to customer's requirements |
3 | Shape | rectangular, round, ellipse, semiellipse, hexagon or other special shape |
4 | Edge shape | straight, round, beveled, stepped, etc. |
5 | Edge work | edges arrised, edges ground, edges polished, etc. |
6 | Corners | blunted corners, round corners or cut corners |
7 | Drilling | normal holes or counterbore(according to customer's requirements) |
8 | Printing | silk-screen printing with black, white, gray, gold, brown, red, yellow, sandblasting effect, etc.(color is RoHS-compliant ) |
9 | Tempering | En60598, En12150, etc.(High security, once tempered glass breakage occurs, the glass could break into small fragments, which are harmless to human body) |
10 | Packing | plywood crates with paper interlayer which are solid and exquisite |
11 | Main Products | decorative glass, range hood glass, refrigerator glass, oven glass, electric fireplace glass, instrument glass, lighting glass(glass lamp shade), air conditioner glass, washing machine glass, sight glass, tempered glass screen, glass door, bathroom glass, splash back glass, glass tiles, etc. |
Tai'an Saintly Glass Co., Ltd, situated at the foot of world-renowned Mount Tai, is located in Hi-Tech Industrial Development Zone of Tai'an, Shandong Province, with more than 100 employees. We are committed to the design, production and sales of such special glass as household appliance glass, range hood glass, lighting glass and instrument glass, and able to provide customized design, production and service based on customers' demand.
Our main products are as follows: Household appliance glass (glass for refrigerator, air conditioner, washing machine, oven, microwaves and disinfection cabinet), range hood glass, lighting glass, instrument glass, etc. "High-quality, high-end" is the main feature of our products, as a result of which, we win a wide range of domestic and foreign customers. Our glass products have already been widely supplied for LG, Siemens, Panasonic, Hitachi, Philips and other companies which are among the world's top 500 enterprises and famous domestic enterprises such as Hair, Midea and Gree. Our household appliance glass is also widely exported to Europe, America, Australia, Japan, South Korea, Southeast Asia and other countries and regions. The quality of our products is well received by customers' at home and abroad.
Our company is equipped with about 60 advanced facilities, such as Bottero cutting machine and Intermac CNC processing center from Italy, CNC drilling machine from Taiwan, CNC edging grinding machine and Southtech toughening furnace. With these advanced equipments, we can produce glass of different shapes based on customers' demand. We also have five silk-screen printing lines, by which, we are able to print all sorts of complex patterns according to customers' requirements. Advanced equipments ensure the high and reliable quality.
In 2012, our company passed ISO9000 quality management system and CCC certification. Rigorous and scientific management is a powerful guarantee to continuously improve product quality. Good quality comes from profession, characteristic leads the future. Characteristic products and service is the foundation of our cooperation, and we look forward to creating brilliant achievements together with you.
