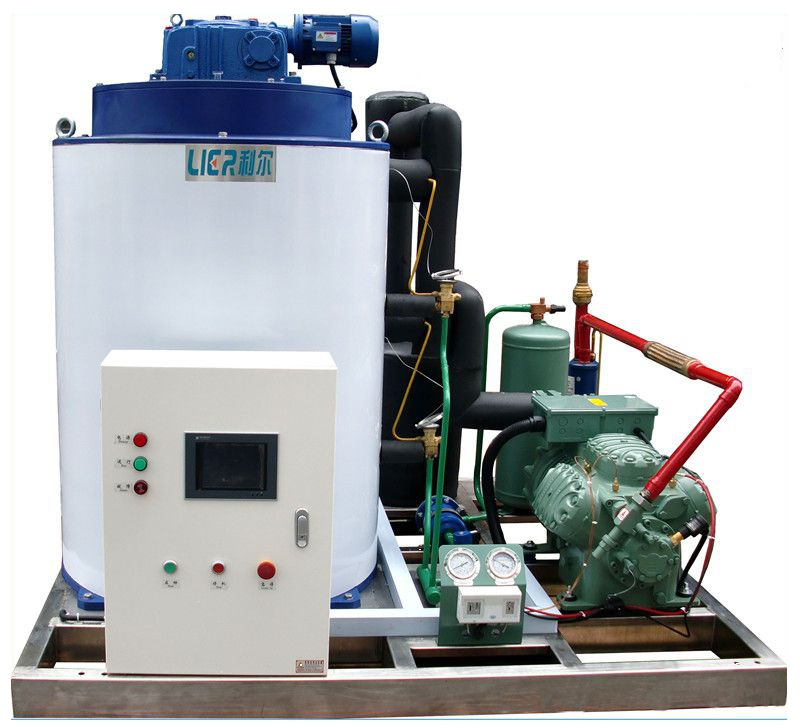

5 Tons/Day CE Approved Ice Flake Machine for Ice Plant

5 Tons/Day CE Approved Ice Flake Machine for Ice Plant
Price: US $ 5000-50000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: LR-5T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Style: Water-Cooling
Refrigerant: R22
Compressor: Germany Bitzer
Ice Thickness: 1.5-2.2mm
Ice Temperature: -5~-8 Centigrade
Standard Power Supply: 3p/380V/50Hz
Unit Measurement: 3100mm*2160mm*2265mm (L*W*H)
Unit Net Weight: 2940kg
Working Noise: Below 70dB
Certification: SGS
Condition: New
Ice Shape: Flake Ice

Product Description

Flake ice:
Flake ice is made of the mixture of brine and water (Max. 500g salt per ton of water), in some cases can be directly made from brine water. Thickness between 1mm-3mm, irregular shape with diameters from 12mm to 45mm. Flake ice has got property of outstanding refrigeranting effect. In cooling process, flake ice is the quickest than any other ices

Various models to meet all your demands: Lier flake ice machine daily output ranges ranges from 200kg to 30, 000kg per day. Single-phase and three-phase power is available to meet all customers' demand. (Condenser of the machines mentioned above can be installed outside or separated according to the customers' requirements. )

Evaporator is made of imported SUS304 or carbon steel with high heat transfer efficiency, whose surface is Nobelium electroplated. The material can ensure the ice burrel excellent corrosion resistant and flake ice clean and hygiene.

Advanced technology: Our flake ice machine evaporator uses annealing heat treatment furnace and vibration aging process to eliminate the welding stress. It can prevent the evaporator inner wall from deformation and eventually prolong the evaporator working life.

Features and advantages of Flake ice:
1. Large contact area: As its flat and thin shape, it has got the largest contact area among all types of ice. The larger its contact area is, the faster it cools other stuff. In comparison with 1 ton of cube ice, 1 ton of flake ice has 1799 sqm of contact area while 1 ton of cube ice only has 1383 sqm, therefore the flake ice has got much better cooling effects than cube ice.
2. Low cost of producing
The producing of flake ice is very economical, it only requires 1.3RT refrigerating effect to make 1 ton of ice from 16C water.
3. Perfect in food cooling
Flake ice is type of dry and crispy ice, it hardly forms any shape edges, in food cooling process, this nature has made it the best material for cooling, it can reduce the possibility of damage to food to the lowest rate.
4. Thoroughly mixing
Flake ice can become water quickly through the rapid heat exchanging with products, and also supply the moisture for products to be cooled.
5. Convenient for delivery
Because the flake ice fairly dry, it will not stick with others during delivery or storage.

Application
1. Fishing: Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and other sea products. Fishing industry is the largest application field of flake ice machine.
2. Sea food process: Flake ice can lower the temperature of cleaning water and sea products, therefore it resists the growth of bacteria and keeps the sea food fresh.
3. Vegetables distribution and fresh-keeping: Now days, in order to guarantee the safety of food, such as vegetables, fruit and meat, more and more physical methods of storing and transporting are being adopted. Flake ice has a fast cooling effect so as to ensure the applied object will not be damaged by bacteria.

Excellent and professional after-sales service: Our company is willing to provide clients with various training, testing, installation of products and technical consulting services. We'd like to regard requirements of customers as our responsibility, and offer the best and considerable service at any time.

Guarantee period: During 18 months after selling, maintenance and parts are free of charge.
 Model Daily output
kg/24h
Ref.Capacity
kw
Power supply Total power
kw
Refrige
rants
Unit Dimension
L*W*H(mm)
Net Weight kg
LR-02T 200 1.2 1P/220V/60HZ 1.1 R404A 760*730*600 105
LR-05T 500 3 3P/380V/50HZ 2.62 R404A 1310*890*780 195
LR-1T 1000 6 3P/380V/50HZ 4.31 R404A 1310*970*880 227
LR-1.5T 1500 9 3P/380V/50HZ 8 R404A 1310*970*980 364
LR-2T 2000 12 3P/380V/50HZ 10 R404A 1500*1095*1050 425
LR-2.5T 2500 15 3P/380V/50HZ 12 R404A 1500*1095*1200 468
LR-3T 3000 18 3P/380V/50HZ 15.11 R404A 1750*1190*1200 530
LR-4T 4000 24 3P/380V/50HZ 18.32 R404A 1700*1550*1250 646
LR-5T 5000 30 3P/380V/50HZ 23.12 R404A 1750*1550*1600 765
LR-6T 6000 36 3P/380V/50HZ 26.12 R404A 1750*1550*1600 825
LR-8T 8000 52 3P/380V/50HZ 31.5 R404A 2530*1830*1680 978
LR-10T 10000 65 3P/380V/50HZ 45.5 R404A 2530*1830*1680 1540
LR-15T 15000 97.5 3P/380V/50HZ 64 R22 3100*2090*1865 2120
LR-20T 20000 130 3P/380V/50HZ 75.8 R22 3695*2090*2050 2860
LR-25T 25000 162.5 3P/380V/50HZ 75 R22 3695*2090*2265 2940
LR-30T 30000 210 3P/380V/50HZ 86 R22 3880*21200*2400 3240


Shenzhen Liermachine Refrigeration Equipment Co., Ltd. is a professional and leading supplier of ice making machines and refrigeration equipment. We focus on the development, production, marketing, installation and repairing services of ice machines.

With advanced technology, modern management, strict quality control, skilled workers and professional services, our ice machines are widely welcomed by customers from at home and abroad.

We produce flake ice machines, tube ice machines, block ice machines, cube ice machines, plate ice machines and some related machine parts. We have different styles of ice making machines for different using fields. Our products are widely applied in aquatic product storage, fruit or vegetable preservation, meat processing, medicine and chemical refrigeration, textile printing and dyeing industry, deep sea fishing, laboratory refrigeration, concrete pouring and cooling, and so on. Lier always provides reasonable and efficient solutions and makes the best ice machines to meet the demands of customers.

"Endless innovation for technology, continuous improvement for service" is our slogan. We will cooperate with all customers, following the "professional, honest and win-win" spirit.
