46 3X4 Inches Near-Seamless LCD Splicing Screen in Conferencing System

46 3X4 Inches Near-Seamless LCD Splicing Screen in Conferencing System
Price: Negotiableunit
Trade Terms: FOB,CFR,CIF
Min Order: 1unit
Pay Type: L/C,T/T,Western Union
Prod Model: HL46ND5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Delivery Time: 15 Working Days After Receipt of The Deposits
Backlight Source: LED
Size(Wxhxl): 1023.98×578.57×125mm
Viewing Angle: 178°(H/V)
Native Resolution: 1920×1080(FHD)
Brightness: 500CD/M2 or 700CD/M2
Contrast Ratio: 3500:1
Maximum Consumption: 300W
Color: Black
Application: Big-Screen Project
Aspect Ratio: 16:9
Feature: Support TV Function
Optimum Resolution: 1920x1080
Widescreen: Not Widescreen
Response Time: 6ms
3D: Not 3D
Screen Size: 46inches
Type: Unit
Interface Type: HDMI, DVI, VGA

Product Description

 46 3X4  Inches Near-Seamless LCD Splicing Screen in conferencing system
A.Specification

LCD ModuleDiagonal Size46"
Backlight SourceLED
Size(W×H×D)1023.98×578.57×125mm
Image Area1018.08×572.67mm
Viewing Angle178°(H/V)
Native Resolution1920×1080(FHD)
Brightness500cd/m2 or 700cd/m2
Contrast Ratio3500:1
PowerAC VoltageAC 200-240V,50/60Hz,2.0A
Maximum Consumption300W
Working Consumption140W or 160W
Wstand-by power consumption≤2W
BezelBezel Width3.7mm(U/L),1.8mm(R/B)
splicing GAP5.5mm/3.5mm
ColorBlack
Net Weight33kg
Working ConditionsTemperature0-50ºC
Humidity20%-90%(Non-Condensing)


Features
Ø Space-saving display wall solution
Ø Lower heat output than traditional lamp-based systems
Ø Long panel life as CCFL backlights reduce burn-in and colorations
Ø Stable colors across the entire video wall
Ø Exceptionally narrow bezel resulting in very small seams
Ø Easy to install, service and maintain thanks to front access


Interface
Computer Input/OutputSimulationVGA(D-Sub15 )
DigitalDVI(DVI-I)
HDHDMI(HDMI A)
Working Resolution 640×480@60Hz~1920×1080@60Hz
AV Input/OutputInputCVBS(BNC) ×4 S-VIDEO(mini-DIN)
Video standardCVBS/S-VIDEO: PAL/NTSC/SECAM
Control Input/OutputInputRS-232C(RJ45)
OutputRS-232C(RJ45)×2

 Overview
Ø High Brightness,High Contrast,High Definition.
Ø Brightness Uniformity,Image Stabilization,Better Color Saturation.
Ø Maintained from the front Design(Optional).
Ø Patterned Vertical Alignment,178°Viewing Angle(H&V).
Ø Upright, Wall Hanging (Optional).



B.Main application case



C.Main certificaiton:

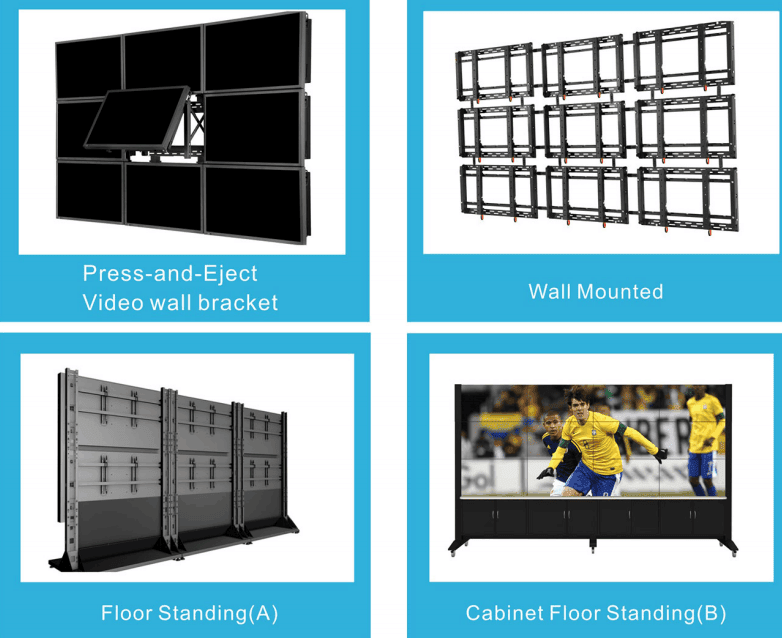

D.Installation Type:
