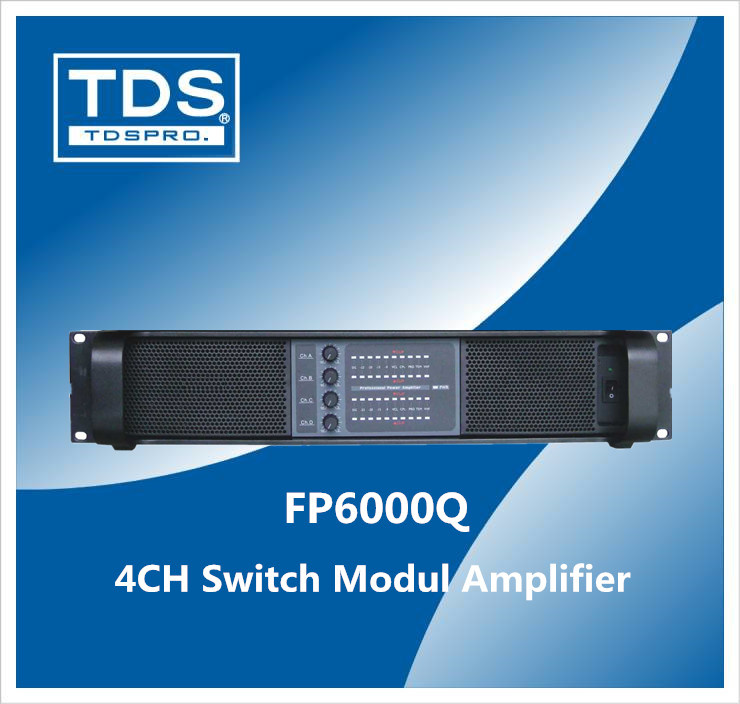

4 Channel High Output Power Amplifier Fp6000q for PRO Audio

4 Channel High Output Power Amplifier Fp6000q for PRO Audio
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: FP6000Q
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Type: Switch Modul Power Amplifier
Output Power: 4 X 700W
Place Of Orignal: Guangzhou China
Type: Professional Amplifier
Used For: Professional
Tube Type: Transistor Amplifier
Function: Amplifier Combined
Output Number: 4
Voltage: AC 220V
Element Number: Push-Pull Amplifier
Usage: Professional Performance

Product Description

Product Description

4ch x 700watts switching power amplifier.
Lightweight power amplifier.

ModelFP6000Q
8ohm Stereo4 x 700W
4ohm Stereo4 x 1300W
2ohm Stereo2 x 1550W
8ohm Bridge2 x 2600W
4ohm Bridge2 x 3100W
Frequency Response10Hz-30Khz+0/-3dB
THD< 0.1%
S/N (dB)110dB
Channel separation(crosstalk) at 1KHz> 70dB
Common Mode Rejection (CMR)>54 dB, 20Hz to 20 kHZ
Output Impedance @ 100 Hz32m ohm
Input Impedance20k ohm balance /
10k ohm imbalance
Power200-240V / 50-60Hz
Min/Max Power180-260V / 50-60Hz
Input connectors (per ch.)3-pin XLR, electronically balanced
Output connectors (per ch.)Neutrik Speakon
Intelligent fans(on/off)Yes, depending on presence of output
CoolingTwo fans, front-to-rear airflow, temperature controlled speed.
Dimensions (HxVxD)483 x 88 x 377 mm
Net weight15 kg
Guangzhou TDS PRO Audio Factory specialize in developing & manufacture PRO audio products.

From the establishment of our factory we always focus our attention on developing PRO audio products.We trust a good product must need very careful process in developing and manufacture.Thanks to our senior engineers and the sophisticated staff, we can offer the products which customers need.At the same time, we use the technical way to guarantee the products quality.We use CAD for cabinet design work, CNC machine to make the speaker cabinet, DASS & LMS for testing of loudspeaker, crossover checking and phase checking equipment etc.All those work help us to keep the same product quality.

In all business, product is important.But the related service is more important.In order to offer ideal service, we have professional staff for products checking, transportation arranging and also we have engineers who can go abroad to do technical support and after sales service.Our philosophy is customer to be first.And we also trust better service will help both customer and us.Through good service we can keep long and steady relation with our customers.

Meet right sound, Meet right OEM partner, Meet right us!
