| Prod Model: |
MD304L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
4.3"FSTN, 192*64, White LED |
| Color: |
Monochromatic |
| Memory: |
64kb Flash ROM |
| Dimensions(Mm): |
172*90*26mm |
| Power Supply: |
12~24 VDC ±10% <150mA @ 24VDC |
| Function Key: |
19 Keys, User-Defined |

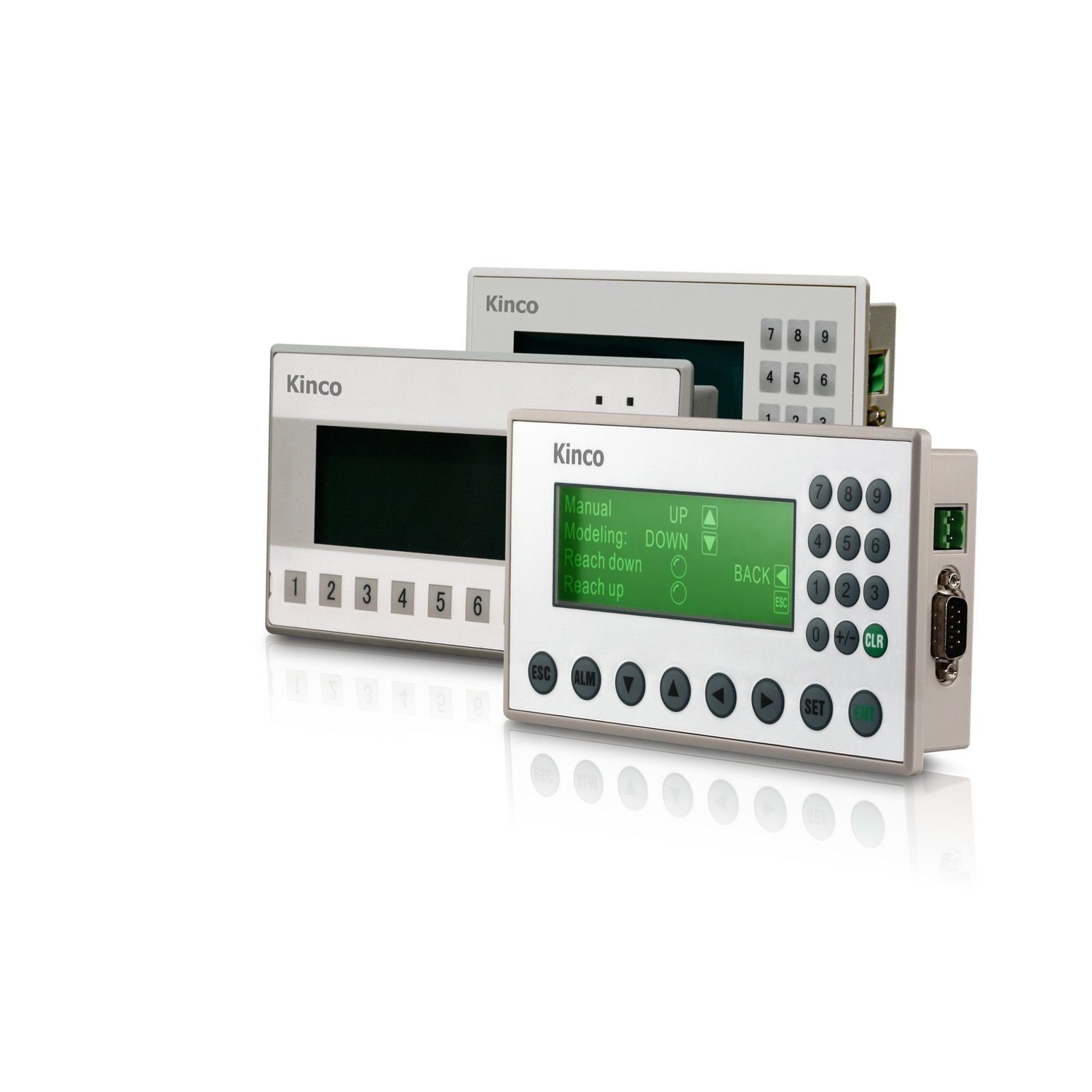

Product Description
Kinco HMI touch screen is the leader in HMI field, we have the leading market position in domestic, it is highly praised in the industry because of its complete product ranges,stable and reliable hardware,user-friendly configuration software and high cost performance.
MD200 and MD300 : Low-End Economy HMIs
- 4.3 inch, monochrome
- User-friendly, economical and practical
- Support multiple communication protocols
|
Model |
MD304L |
|
Display |
4.3"FSTN |
|
Resolution |
192 x64 Pixel(Supporting Display of 8 Lines 15 Chinese Characters) |
|
LCM life time |
Greater than 50,000 Hours at 252ºC, 65±10%RH |
|
Brightness |
97 cd/m² |
|
Color |
Monochromatic |
|
Contrast |
Adjustable by Potentiometer |
|
Backlight |
White Light LED |
|
CPU |
8-bit Processor |
|
Memory |
64KB Flash ROM |
|
COM port |
COM1: PC RS232 & PLC RS485/422 & PLC RS232 |
|
Real-time clock |
Yes(Accuracy: 30 PPM) |
|
Function key |
19 Keys, Customizable(Including 10 Numeric Input Keys) |
|
Printer port |
N/A |
|
Allowable power failure |
Within 20ms |
|
Power supply |
12~24 VDC ±10% <150mA @ 24VDC |
|
Interference immunity test |
Voltage 1500Vp-p,Pulse Cycle 1us,Duration 1s |
|
Dielectric strength |
500VAC (1 min) |
|
Isolation resistance |
Exceed 10M at 500V DC |
|
Vibration endurance |
10 to 25 Hz(x, y, z Direction, 2G, 30 Minutes) |
|
Protection class |
IP65 Front Panel |
|
Recipe memory |
2 KB EEPROM |
|
Operating temperature |
0 ~ 50 °C |
|
Operating humidity |
20 ~ 90 % RH (Non-Condensing) |
|
Storage temperature |
-20 °C ~70 °C |
|
Enclosure |
Engineering Plastic ABS + PC |
|
Dimensions(W x H x D) |
172 × 90 × 26mm |
|
Display size(W x H) |
101 × 36 mm |
|
Panel cutout dimension |
165 × 78 mm |
|
Cooling systems |
Natural Air Cooling |
|
Weight |
0.3 Kg |
