Zhengzhou Nanbei Instrument Equipment Co., Ltd. >> 3t CE Confirmed Granular Ice Machine

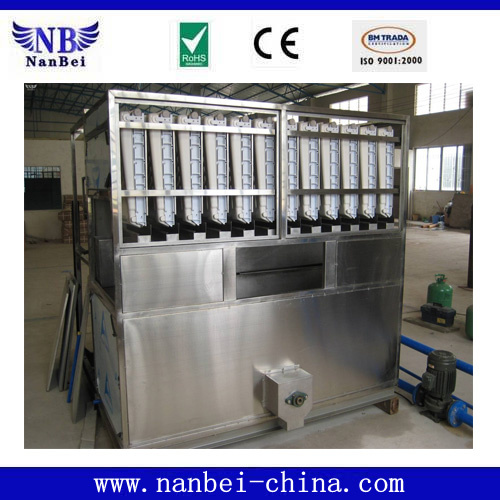

3t CE Confirmed Granular Ice Machine

3t CE Confirmed Granular Ice Machine
Price: US $ 30250-30335/Piece
Trade Terms: FOB,CIP,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: NB3T-R2W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity(Kg/24h): 3000
Ice: Granular
Control System: 1980mm X 1630mm X 1840mm
Weight: PLC Micro-Computer Control
Cube Ice Weight Density: 500~550kg/M3
Control: Electric
Power: >400W
Structure: Integral Type
Material: Stainless Steel
Application: Household
Condensing Mode: Air-Cooled
Filtering Device: With Filtering Device
Automatic Cleaning Device: With Automatic Cleaning Device
Ice Shape: Cube, Tube, Flake, Plate, Snow, Block, Graular

Product Description



Applications:
Edible granular ice machine is one type of ice making machines. Because the ice shape is the grain type, so it's called granular ice. In the market it's the smallest type of ice, melting resistance best . Suitable for drinking supplies modulation, decoration, food preservation and so on, so it is mostly the edible ice.


2T/24H granular ice maker

Technical scheme:

NO.

Parameters

Technical data

1

Model

NB2T-R2W

2

Evaporating temp.

-10ºC

3

Condenser temp

+40ºC

4

Control system

PLC micro-computer control

5

Voltage

220V/3Phase/60Hz

6

Cube ice weight density

500~550kg/m3

7

Power consumption

80KW~85KW/ton

8

Measurement

Cube ice machine

Machine:1750mm x 1510mm x 2040mm

Cube ice

22mm x 22mm x 22mm
or 29mm x 29mm x 22mm

9

Noise

55dB

10

Refrigerant

R22

11

Evaporating temp.

-15ºC

12

Condenser temp

+40ºC

13

Input water temp.

28ºC

14

Ambient temp.

40ºC

15

Compressor

Model

Frascold

Brand name

Frascold

Amount

1

Type

Q7-33.1

Power

16.78KW

16

Gear motor

0.75KW

17

Total Power of cooling fan

0.55KW

18

Cooling water pump

2.2KW

19

Power of circulating water pump

0.75KW






3T/24H granular ice maker


Technical scheme:

NO.

Parameters

Technical data

1

Model

NB3T-R2W

2

Evaporating temp.

-10ºC

3

Condenser temp

+40ºC

4

Control system

PLC micro-computer control

5

Voltage

220V/3Phase/60Hz

6

Cube ice weight density

500~550kg/m3

7

Power consumption

80KW~85KW/ton

8

Measurement

Cube ice machine

Machine:1980mm x 1630mm x 1840mm

Cube ice

22mm x 22mm x 22mm
or 29mm x 29mm x 22mm

9

Noise

55dB

10

Refrigerant

R22

11

Evaporating temp.

-15ºC

12

Condenser temp

+40ºC

13

Input water temp.

28ºC

14

Ambient temp.

40ºC

15

Compressor

Model

Frascold

Brand name

Frascold

Amount

1

Type

S15- 51Y

Power

24.04KW

16

Total Power of cooling fan

0.92KW

17

Deceleration motor power

0.75KW

18

Cooling water pump power

2.2KW

19

Power of circulating water pump

0.75KW

20

Evaporator

Type

cube type

Quantity

12 pieces
