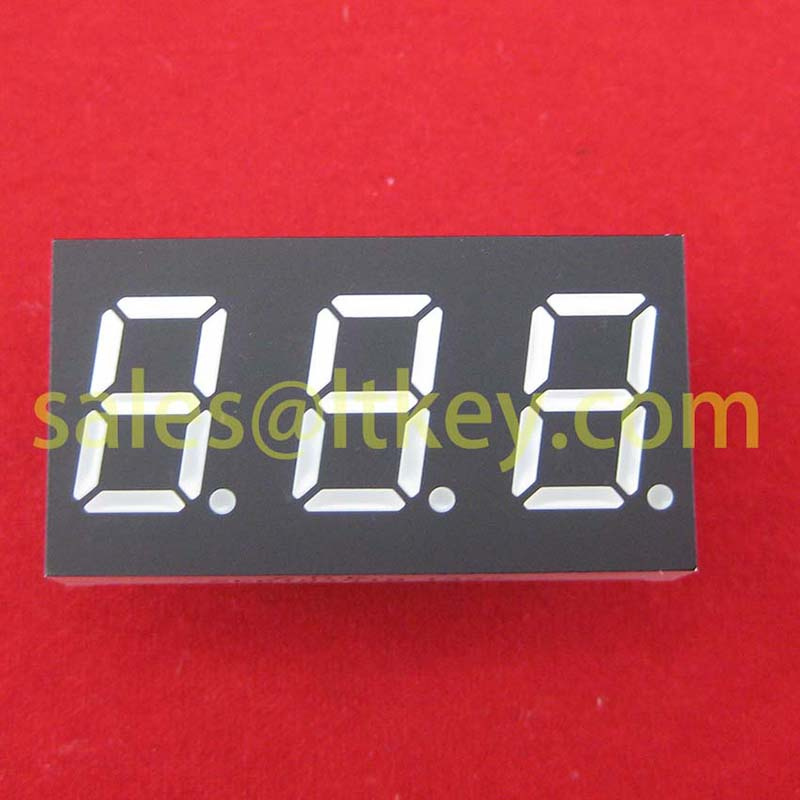

0.36 Inch 3 Digits 7 Segment LED Display

0.36 Inch 3 Digits 7 Segment LED Display
Price: US $ 0.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: LD3631A/B
Markets: North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Outline Dimensions: 22.00X14.00X7.20mm
Digit Height: 0.36 Inch(9.2mm)
Emitting Color: Single Color
Dp Number: 3PCS
Digit Number: 3 Digit
Chip Matrial: 4-Element
Tube Chip Color: Single Color
Scanning Mode: Static Scan
Display Type: Segment LED Display
Application: Meters and Instruments
Certification: Reach
Display Function: Numbers and Some Alphabets

Product Description


Features
Ø         9.2 mm (0.36 inch) digit high
Ø         Excellent digit appearance
Ø         Wide viewing angle
Ø         Range of emitted colors
Ø         I.C. compatible
Ø         Low power consumption
Ø         White segment
Ø         RoHS compliant

Available options

Ø         Alternative emitting luminosity:
Standard or high brightness version
Ø         Alternative emitted color
Ø         Alternative segment color
Ø         Alternative font

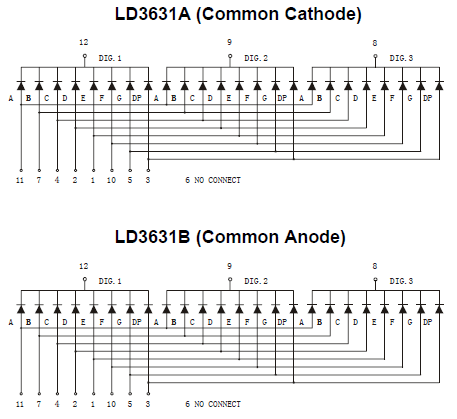

Ø         Common Cathode is available
Ø         Cropped terminal pins
Selection Guide

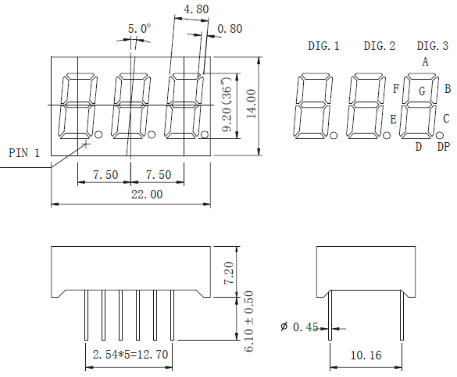

Three Digit 7 Segment LED Display, Digit Height:9.20mm(0.36 inch), External Dimensions: 22.00x14.00x7.20mm (L x W x H)
Part No.ChipIV@IF=20mAIv@IF=20mA
Common CathodeCommon
Anode
MaterialColorWLDOne Seg One DP
Min.Typ.Min.Typ.
 LD3631AR LD3631BRGaAlAsSuper Red640810810
 LD3631AD LD3631BDGaAlAsHi-Red64018251825
 LD3631AO LD3631BOGaAsPOrange6257979
 LD3631AY LD3631BYGaAsPYellow588810810
 LD3631AG LD3631BGGaPGreen5687979
 LD3631AUR LD3631BURAlGaInPUltra Red64030453045
 LD3631AUO LD3631BUOAlGaInPUltra Orange62545604560
 LD3631AUA LD3631BUAAlGaInPUltra Amber60530453045
 LD3631AUY LD3631BUYAlGaInPUltra Yellow59530453045
 LD3631AUG LD3631BUGAlGaInPUltra Green57330453045
 LD3631APG LD3631BPGInGaNPure Green525120300120300
 LD3631AUB LD3631BUBInGaNUltra Blue47030453045
 LD3631AUW LD3631BUWInGaNUltra White\100120100120
Unit:\\\nmmcdmcdmcdmcd


How to produce these item?
Factory viewing:
LightKey Optoelectronics Ltd. Is a big LED manufacturer, which covers an area of 40, 000 square meters, with approximately 390 production workers, and more than 50 R&D people. It has more than 10 advanced automatic production lines including die attaching, wire bonding, taping and casting. LightKey is also equipped with advanced sorting, testing, and analyzing instruments as well as other technical R&D equipments. We focus on the quality since our estabilishment. Is a manufacturer specialized in LED products especially LED components. Our main products are LED displays: 7 segment LED display, 14 and 16 segment LED display, LED DOT matrix, LED bargraph, &LED lightbar and so on: Lamp type LEDs: White LED, signboard oval LED, standard LED, high-brightness LED, traffic LED, IR LED, photodiode silicon, high power LED, super flux LED, & SMD LED and LED applications. Our company is managed according to ISO9001: 2008. Our LED products have RoHS and REACH compliance.

LightKey has many Famous business partners in the world.

"Keep Improving" is our our tenet.
