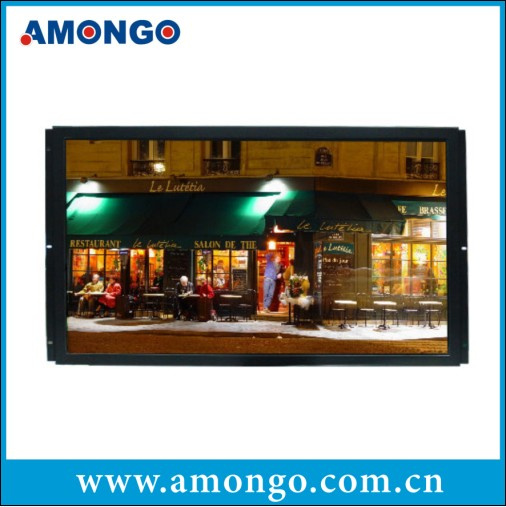

32"Industrial TFT Touch Screen with LCD Monitor

32
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 10/Piece
Pay Type: L/C,T/T
Prod Model: AMG-32IPPC05N1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resolution: 1920*1080
Contrast Ratio: 4000:1
Brihgtness: 400
Backlight: LED
Viewing Angles: 178*178
Respnse Time: 8ms
Signal Connector: VGA/DVI/HDMI/AV/Sv
Power Consumption: AC100V-240V
Status: in Stock
Features: Wide Temperature
Type: TFT
Aspect Ratio: 16:9
Feature: LED Backlight Display
Application: ATM/Kiosk/Gaming Machine
Screen Size: 32"
Interface Type: VGA, DVI, HDMI, AV, Sv

Product Description

Amongo Display Technology Co., Ltd-----Your Dispaly Expert

Features:

1. Top brand in industrial displays

2. VGA, DVI inputs with Wide operating temperature from -30 to 80 degrees

3: Strong and professional R&D team.

4: Any size from 5" to 65" are available supporing any existing OS system. More than 350 LCD models had been developed.

5. Optional touchscreen: 4-wire/5-wire Resistive, Infrared, SAW, Scap, Pcap.

6. High brightness, Sunlight readable, light sensor, IP65 optional.

7. Custom-made service is available.


Features:

1: Wide temperature operation -30 to 85 degree

2: High Brightness optional, Sunlight readable

3: Bezel optional


Model Name   AMG-32IPPC05N2
Screen Size   31.5"
Active Display Area (mm)   698.4(H) x 392.85 (V)
Pixel Pitch (mm)   0.363 (H) x0.363(V)
Display Mode   Normally Black
Display Resolution (pixel)   1920x1080
Contrast Ratio   4000:1 (typ.)
Display Color   16.7M
Brightness (CD/m^2)   400 (typ.)
Backlight   LED Lightbar
Viewing Angles (CR >=10)   178 (H); 178 (V)
Synchronization Range_Horizontal / Vertical   31.5-37.5KHz / 60-75Hz
Recommended Resolution   1920x1080 60Hz/80Hz
Signal Connector   15 pin D-sub(VGA)/DVI-D/HDMI/S-VIDEO/AV
Power Consumption   AC 100-240 V, Universal,±10%(optional)
Dimension(VxHxT)   761.4x455.8x59.5
Operating Temperature   -30~80°C
Storage Temperature   -30~80°C
Relative Humidity    5(%RH)~90(%RH)
Amongo DIsplay Technology (Shenzhen) Co., Ltd., is a leading manufacturer specialized in designing & producing Industrial LCD Monitor, Open Frame, Touching monitor and Panel PC and etc., we developed more than 300 models LCD items as well as A/D board and inverter board. The main application is for ATM, Self-service Kiosk, Digital Signage, Gaming, POS, Medical Treatment, Media Player and other industrial control area. Any OEM product is available.

With years professional experience in industrial LCD display, strong R&D teamwork and excellent quality control system, we had cooperated successfully with some of biggest ATM manufacturers worldwide. With a large production capacity, it's available for us to do the delivery in a short time.

Amongo would like to develop together with all our customer strongly. We aim at our "good quality" "speed service" "professional and innovative work" helping you to create higher values.
