Lightkey Company Limited >> 0.3 Inch 3 Digit 7 Segment LED Display

0.3 Inch 3 Digit 7 Segment LED Display

0.3 Inch 3 Digit 7 Segment LED Display
Price: US $ 0.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: LD3031A/B
Markets: North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Outline Dimensions: 22.00X14.00X7.20mm
Digit Height: 8.00 mm (0.30 Inch)
Emitting Color: Single Color
Dp Number: 3PCS
Digit Number: 3 Digit
Chip Matrial: 4-Element
Tube Chip Color: Single Color
Scanning Mode: Static Scan
Display Type: Segment LED Display
Application: Meters and Instruments
Certification: Reach
Display Function: Numbers and Some Alphabets

Product Description


Features
Ø        8.00 mm (0.30 inch)  digit high
Ø         Excellent digit appearance
Ø         Wide viewing angle
Ø         Range of emitted colors
Ø         I.C. compatible
Ø         Low power consumption
Ø         White segment
Ø         RoHS compliant

Available options

Ø         Alternative emitting luminosity:
Standard or high brightness version
Ø         Alternative emitted color
Ø         Alternative segment color
Ø         Alternative font
Ø         Common Cathode is available
Ø         Cropped terminal pins


   Selection Guide

Three Digit 7 Segment LED Display, Digit Height: 8.00mm(0.30 inch), External Dimensions: 22.00x14.00x7.20mm (L x W x H)
Part No.ChipIV@IF=20mAIv@IF=20mA
Common CathodeCommon
Anode
MaterialColorWLDOne Seg One DP
Min.Typ.Min.Typ.
 LD3031AR LD3031BRGaAlAsSuper Red640810810
 LD3031AD LD3031BDGaAlAsHi-Red64018251825
 LD3031AO LD3031BOGaAsPOrange6257979
 LD3031AY LD3031BYGaAsPYellow588810810
 LD3031AG LD3031BGGaPGreen5687979
 LD3031AUR LD3031BURAlGaInPUltra Red64030453045
 LD3031AUO LD3031BUOAlGaInPUltra Orange62545604560
 LD3031AUA LD3031BUAAlGaInPUltra Amber60530453045
 LD3031AUY LD3031BUYAlGaInPUltra Yellow59530453045
 LD3031AUG LD3031BUGAlGaInPUltra Green57330453045
 LD3031APG LD3031BPGInGaNPure Green525120300120300
 LD3031AUB LD3031BUBInGaNUltra Blue47030453045
 LD3031AUW LD3031BUWInGaNUltra White\100120100120
Unit:\\\nmmcdmcdmcdmcd


How to produce these item?

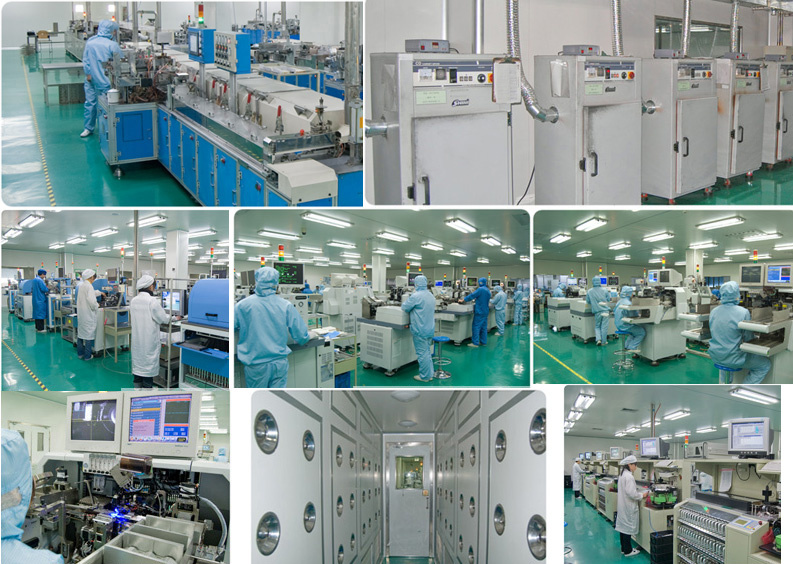

Factory viewing:
LightKey Optoelectronics Ltd. Is a big LED manufacturer, which covers an area of 40, 000 square meters, with approximately 390 production workers, and more than 50 R&D people. It has more than 10 advanced automatic production lines including die attaching, wire bonding, taping and casting. LightKey is also equipped with advanced sorting, testing, and analyzing instruments as well as other technical R&D equipments. We focus on the quality since our estabilishment. Is a manufacturer specialized in LED products especially LED components. Our main products are LED displays: 7 segment LED display, 14 and 16 segment LED display, LED DOT matrix, LED bargraph, &LED lightbar and so on: Lamp type LEDs: White LED, signboard oval LED, standard LED, high-brightness LED, traffic LED, IR LED, photodiode silicon, high power LED, super flux LED, & SMD LED and LED applications. Our company is managed according to ISO9001: 2008. Our LED products have RoHS and REACH compliance.

LightKey has many Famous business partners in the world.

"Keep Improving" is our our tenet.
