| Prod Model: |
LMT032DNAFWD-NCA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
3.2'' |
| Aspect Ratio: |
4:3 |
| Operating Temperature: |
-20~+70 |
| Storage Temperature: |
-30~+80 |
| Interface: |
MCU |
| Controller: |
Ili9341 |
| Certification: |
RoHS and ISO 9001:2008 Certification |
| Digital LCD Module Type: |
Metering Module |
| Touch Screen Type: |
Resistive |
| Type: |
Color |
| Display Technology: |
TFT |
| Customized: |
Non-Customized |
| Usage: |
Indoor, Outdoor, Surveillance, Big-Screen Project, |
| Viewing Angle: |
9h |
Product Description

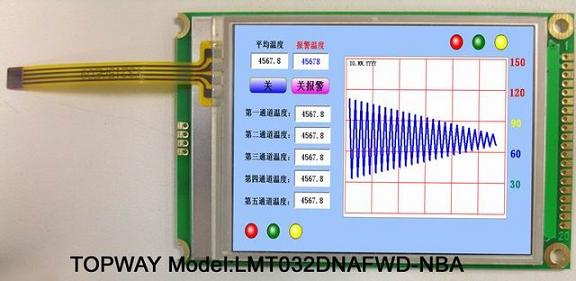

3.2 inch 320xRGBx240 TFT
-QVGA 65K colors
-8-bit MCU Interface
-Single Power Supply
-Low Power Consumption
-Built-in TFT Controller
--LED Backlight Driver and touch panel optional.
| Item | Description |
| Product Name | TFT LCD Module with touch screen 320 X 240 |
| Model No. | LMT032NDAFWD-NBN |
| Number of dots | 320 x 3(RGB) x 240 |
| Outline Dimension(mm) | 90.0 x 58.0 x 5.9 |
| Active Area(mm) | 64.8 x 48.6 |
| Backlight | LED |
| Power supply | 3.3V |
| Interface | 8-bit data MCU |
| Color Depth | 65K |
| Pixel Pitch(mm) | 0.2025 x 0.2025 |
| Display Mode | Transmissive / normal white |
| Viewing Direction | 9 o'clock |
| Touch panel | Optioanl |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
Established in 1996, Topway is a high-tech enterprise specializing in the design and manufacturing of industrial LCD Module.
Topway are located in High-tech. Industrial Park constructed by local government, with over
6000 square meters space, our production plant has stringent quality control to guarantee
Absolute product quality. Our production equipment are state-of-the-art Japanese technology
Including COB, TAB, COG, etc.
Our founding members are teams of professional engineers whose careers have long been associated with LCD industry. with such solid experience and technology know-how, and a very
Close and long standing cooperative relationship with universities and institutions where in-depth
Technology research, these high-power LCD Module specialists have a strong sense of duty
And passion to deliver good products to customers. Topway have been approved by Reliable Design, Stable Quality and In-time Delivery in the market.
Topway are creating value for our clients with leading and innovating design. Our up-to-date
Marketing intelligence of LCD technology and related applications, extensive networking with worldwide product design houses and component makers, all ensure our LCD Module as technology superior and market welcome.
Being a customer-focused company, Topway has gradually gained a strong foothold in the world
As a company excels in Quality, Service and Innovation. Well received by the global market, our
Clients included renowned names like Emerson, Toshiba, GE, etc.
