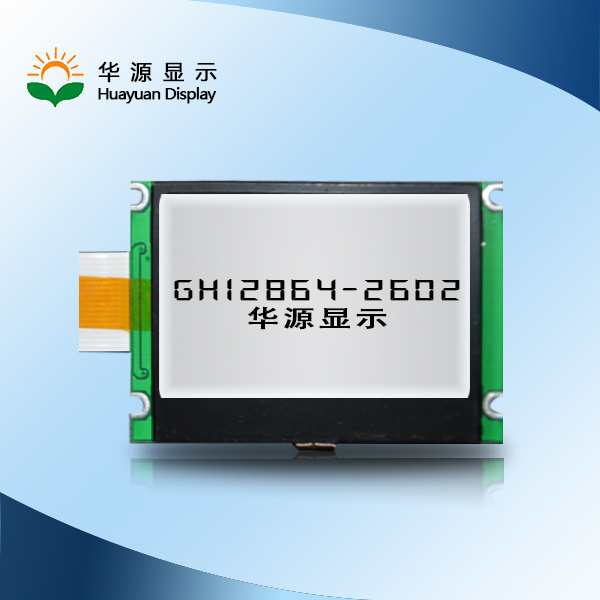

2.6 Inch 12864 COB Graphic LCD Display with Controller Uc1601

2.6 Inch 12864 COB Graphic LCD Display with Controller Uc1601
Price: US $ 1-5/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: GH12864-2602
Screen Size: 2.6"(Diagonal)
Display Type: FSTN
Driver Mode: 1/65 Duty 1/9 Bias
Viewing Direction: 6 O'clock
Controller IC: Uc1601
Viewing Area: 65.48X 38.1 mm
Active Area: 60.78X 32.94 mm
Outline Dimension: 81.0X51.44X 10.9mm Max.
Data Bus: Spi
Backlight: LED, White
Usage: Test LCM
Digital LCD Module Type: Counting Module
Type: Character
Response Time: 5ms
Viewing Angle: TN+FILM
Display Technology: COB
DOT-Matrix Graphic LCD Module Type: Row/Column-Driven
LCD Drive Mode: Static Drive LCD Module
Customized: Customized
Touch Screen Type: No Touch

Product Description

Specification:
Screen size2.6"(Diagonal)
Display colorDisplay color:Black
Background color:Gray
TypeFSTN
View angle direction6'clock
Driver mode1/65 DUTY  1/9 BIAS
BacklightLED
Controller ICUC1601
Data BusSPI
Temperature rangeOperation:-30 oC --+70oC
Storage:-40 oC -- +70oC
Number of Dots128*64
Dot size0.44 x 0.50mm
Dot pitch0.46x 0.52mm
Viewing size65.48x 38.1mm
Active area60.78x 32.94mm
Outline dimension81.0x51.44x 10.9mm Max.

Contact Us: Send inquiry for us to get newest quotation & information.
Tel:  86-731-28668968
Fax: 86-731-28660280

How to place an order?  We could produce according to customer's request.
Step1.Send us your original drawing, samples or photos. If you don't have these information, just tell us your idea.
Step2.According to your details, we will give you some advise and competitive price.
Step3.After confirm the technical datas, we will send you exact quotation.
Step4.Arrange the tooling charge from your side.(If it is costomerized product)
Step5.We will send you the final drawing and wait for your confirmation.
Step6.We will make new samples within two weeks for you to test.
Step7.After samples confirmed and we get your deposit, we will run the mass production.
Step8.We will send products to the port once get your balance.

We sincerely hope to establish a long-term business relationship with your company.
If you have any questions or queries, please do not hesitate to contact us.
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.

The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.

Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.

Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of

Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.

Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
