Shenzhen Htsled Optoelectronic Technology Co., Ltd. >> 2.5mm Indoor Fixed Installation LED Display

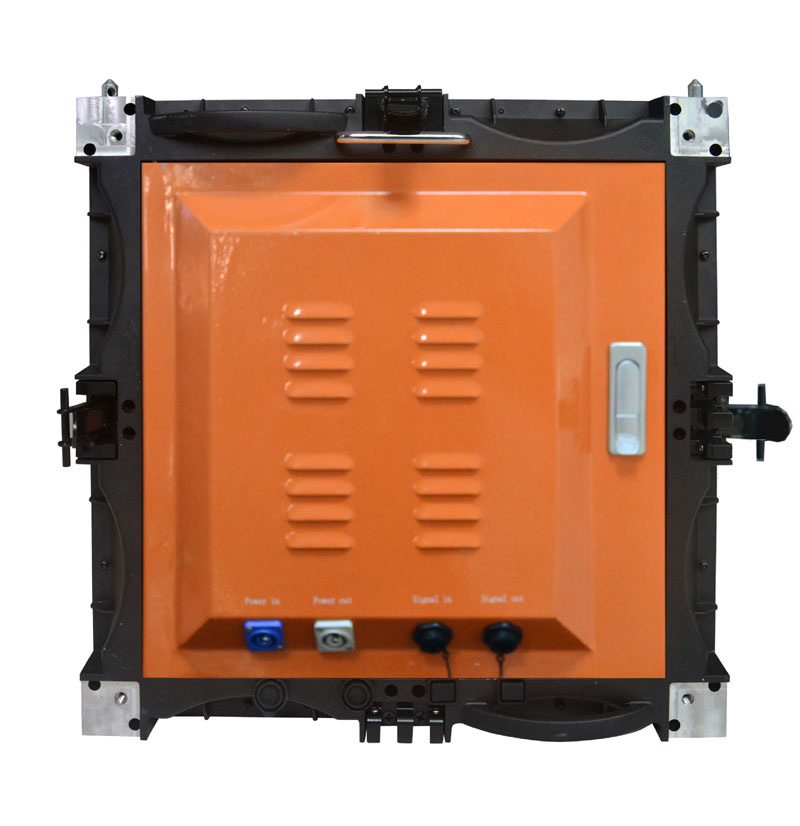

2.5mm Indoor Fixed Installation LED Display

2.5mm Indoor Fixed Installation LED Display
Price: US $ 3200/Square Meter
Trade Terms: FOB,EXW
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Western Union
Prod Model: P2.5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 480X480mm
Material: Die-Casting Aluminum
Tube Chip Color: Full Color
IP Rating: IP43
Display Function: Video Display
Average Power Consumption: 600W / m²
Display Type: LED Video Display
Application: Advertising
Certification: CCC
Pixel Pitch: 2.5mm
Pixel Configuration: SMD2121 Black Face
Pixel Density: 160000dots/M2
Scanning Mode: 1/32 Scan

Product Description

Features:

1. Seamless of unit joint
2. Intelligence of brilliance control
3. Real and natural color
4. Exquisite and smooth picture
5. Greater Optimal viewing area
6. Stability


Application Case:
It is Widely use for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station weiting area, indoor stadium, and a cariety of public facilities and so on.


Unit Module
           ItemParameter
       Model NumberHTS-P2.5-32S
       Module size240mm*240mm
     Pixel pitch2.5mm
       Pixels Density160000/m2
     Pixel configuration1R1G1B
LED       Package modeINTEEGRATION 3IN1 -1010
     Pixel resolution96dots(W)*96 dots(H)
   Max Power35W
    Module thickness17mm
       Weight0.66KG
       Drive typeConstant drive
       Scan mode1/32 1/32scan
       Port typeHUB138
     Brightness of white balance800cd/m2



LED
Cabinet
       Dimension480mm*480mm


  Monomer Module Number4
       Power supply5V/40A*1 pcs
       Thermal dischargefan 1pcs
     Pixel per cabinet192*192
       Best viewing distance4M~20M
       Best viewing angle160°(W) 120°(H)
       Temperaturestorage:-35ºC~+85ºC
working:-20ºC~+50ºC
      Relative humidity10%-95%
       Thickness85mm

Power
       Working voltageAC220V±10%
       Average Power consumption200W/
      Max.Power consumption600W/
           Current20mA(single LED)

Control system
       CPUPentium4 or above P4
       Operation systemWIN98/2000/NT/XP/WIN7
       Control methodSynchronization

 Main technical
  parameter
       Driving deviceConstant drive IC
       Refresh frequency600HZ
/      Grey scale/colors4096,16.7M
4096gray level/16.7M colors
MTBF9000hours
       Power switchAutomatic switch
       Display Mode800*600/1024*768

Shenzhen HTSLED Optoelectronic Technology Co., Ltd is a Shenzhen-located high-Tech enterprise which specializes in the R&D, manufacturing, salesand serviceof LED display and LED lighting products. Thanksto the human-base management policy, advanced production machines and test equipments as well as rich options of raw material resource, HTS has developed a professionalplatform to become a modern enterprise. According to the demand of the market HTS has developed a Full product range through industry-chained opetatio model and HTS aims to rank. In the front line of the LEDdisplay industry. Of professional designers and software and hardware systems personnel, creative and unique copy talent.

HTSLED is located in Dalang, Longhua, Baoan District, which enjoys a group of influential experts in LED industry, a professional R&D team and highly-skilled manufacturing staff. It occupies more than 6000 square-meter free-dust and static-proof production area which covers several automated assembling lines, many advanced production machines and optimized testing equipments. Aim to the high level market, HTS insists developing MID and high-end products, serves the customers as the center of our work, strives for survival on the basis of quality, employs the managing idea of searching development by integrity, we manage to win the customers and the market by our sincerest heart, most advanced technology, best-quality products and most satisfactory service.
