Hunan Zhongyue Display Control Technology Co., Ltd. >> 15” Vehicle Rugged LCD Display

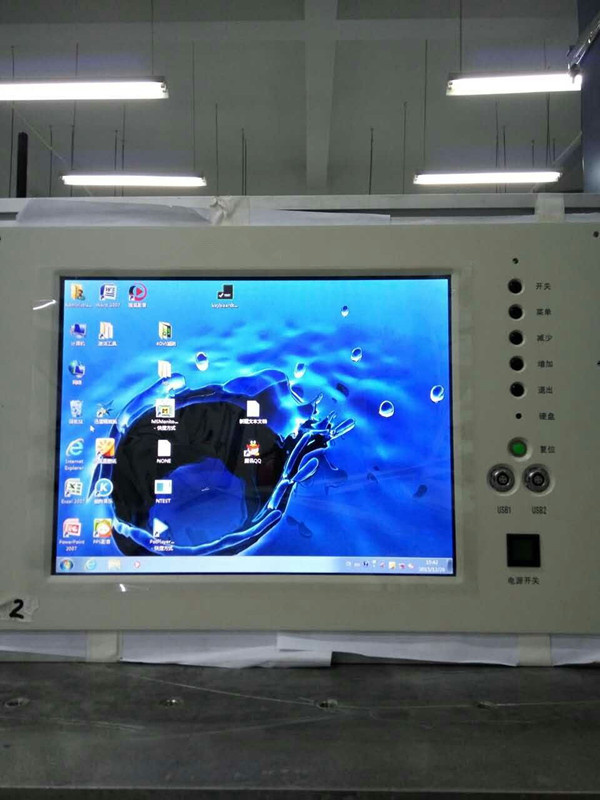

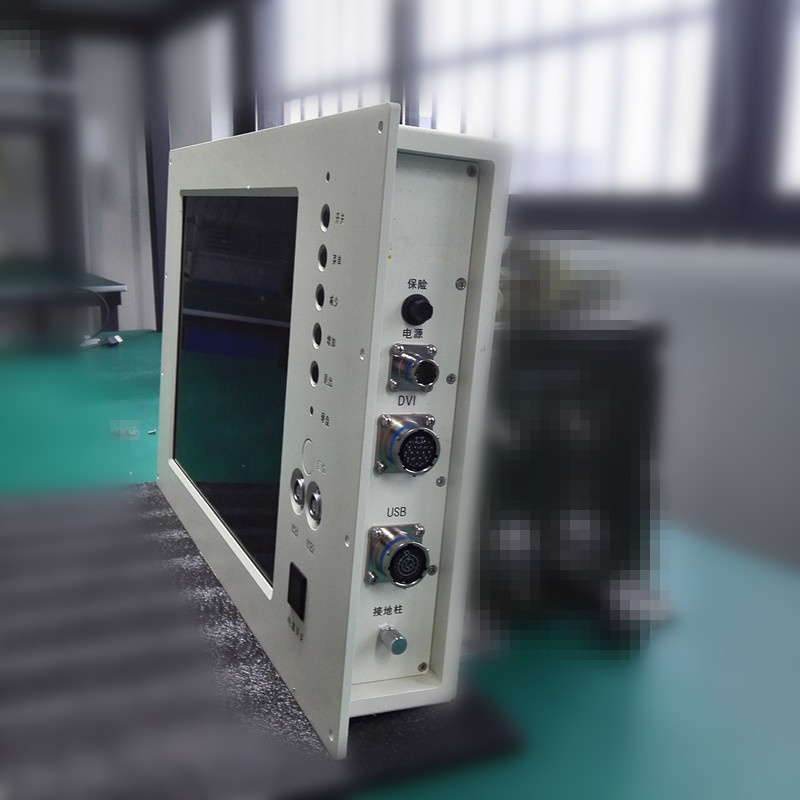

15” Vehicle Rugged LCD Display

15” Vehicle Rugged LCD Display
Price: US $ 9900-10000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: ZXD-150P1500-J1
Application: Outdoor
Aspect Ratio: 4:3
Optimum Resolution: 1024x768
Type: TFT
Widescreen: Not Widescreen
Response Time: 2ms
3D: Not 3D
Interface Type: DVI
Screen Size: 15"

Product Description

Feature:
1,Support resolution 1024×768 for DVI interface
 2,Applicable to all types of military command vehicle, wheeled shelter

Technical Specification:
Model:ZXD-150P1500-J1
Resolution:1024×768
Active Area:304.1×228.1(mm)
Brightness:≥250cd/m²
Contrast Ratio(dark ambient):≥400:1@0H/0V
Viewing angel(CR>5:1):±80°(H),±60°(V)
Power consumption:Normal temperature≤25W;Low temperature≤80W
Environmental:
Operation temperature:-40ºC~60ºC
Storage temperature:-45ºC~70ºC
MTBF:≥5000H
Low-pressure:meet GJB 150.2A-2009 low-pressure corresponding standard
Humidity:Meet GJB 150.9A-2009 humidity corresponding standard
Vibration:Meet GJB 150.16A-2009 vibration corresponding standard
Shock:Meet GJB 150.18A-2009 shock corresponding standard
EMC/EMI:Meet GJB 151A-2009 EMC/EMI corresponding standard
Environmental stress screening:Meet GJB 1032-1990 environmental stress screening corresponding standard
MTBF:≥5000h
Application
Vehicle display system ,shipboard display system


Hunan Zhongyue Display Control Technology Co., Ltd is a high-tech joint-stock enterprises, specialized in research and development, production and technical service for military products. The company, founded in 2013, covers an area of 2000 square meters, having 20 million RMB registered capitals. At present, we have more than 40 employees and most of them have great experience in the field of military industry. We have a mature and solid team and have become an excellent military products supplier after many years of experience.

R&D capabilities and production capacity of our company at a leading position in the same industry, has assumed a large number of military and national defense scientific research mission. Our company has made a large number of high-level results in display technology, graphics display control card and military board field, with a number of patented technologies of independent knowledge ownership, such as: Low temperature transparent heating technology, highlighting dual LED backlight technology, optical bonding technology, multi-PIP technology, ultra-low power consumption dual-core three-display CPCI mainboard. Our company has sophisticated LCD screen secondary cutting technology platform, optical bonding technology platform, LED backlight technology platform, sophisticated image processing technology and high reliability military board technology that the monitor, graphics display control and all kinds of military boards can be customized according to customer requirements of different shapes, different sizes, different brightness and different resolution or other special requirements.

Currently, rugged LCD display module and graphic image display control card developed and produced by our company has been widely used in airborne, vehicle, ship and other military fields as well as airports, railway stations and outdoor display equipment and other civilian areas. The display size from 0.63 inch to 65 inch and resolution from 480X480 to 4096X2160 full-coverage. High product reliability, has been highly praised by customers and military. The display drive technology of our company lives in the national front. Among them, large-size high-resolution rugged display with resolution 4096X2160 becoming the earliest company successfully developed this resolution LCD drive technology by EPGA. 0.63-inch, 1-inch and 1.8-inch image display source are successfully used in airplane head-up system and helmet head system. In addition, the company has developed a variety of 3U, 6U series ARM, X86, POWERPC architecture low-power motherboard. All boardcards are embedded with complete BIT fault diagnosis. At the same time, we also produce display and control platform, all-in-one microcomputer, military notebook and other variety of electronic devices.

To allow users to enjoy a more simple, quick and more comprehensive services, through the integration of application of innovative hardware and software integration technology, our products and application solutions of the same strain, allowing users to system compatibility, stability, reliability and maintainability greatly enhanced.

In the future, we will grasp all opportunities to achieve company development sustainably and scientifically, making ourselves better contribute to national defense.
