| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sample: |
Available |
| OEM: |
Yes |
| Shipping Port: |
Qing Dao |
| Power Supply: |
Electric |
| Application: |
Factory Production Workshop, Poultry Farming, Hous |
| Certification: |
CE |
| Power: |
>300W |
| Material: |
Stainless Steel |
Product Description
Fan Blade is made of Krupp Stainless Steel by puch forming, attactive and durable without dust. Special blades design ensure large air volume, no deformation, no broken, keep ari volume, no deformation, no broken, kee air volume same all the way. Thickness 1.2mm, Surface finish BA grade. Blade material have stainless steel, galvanized sheet, aluminum alloy, FRP for option.
Fan Frame Body is made of galvanized steel. Thickness could be 0.5mm, 0.8mm, 1.0mm. Fine appearance finished.
Fan belt pulley is made of high strength Aluminum-Magnesium alloy by die-casting complete, high corrosion resistance. Special three reinforced ribs pulley design. Sand-Blasting treatment for attractive appearance, eliminate internal stress to improve its own rigidity and stability, never broken.
Both China famous motor and Simens motor are available. Motor voltage and frequency ca be customized. Chinese famous motor has special design for exhaust fan with the phase-lack protection. Motor protection grade IP55, insultion Class F grade.
Fan blades are adjusted by intelligent dynamic balace tester, each blade tolerance weight controlled within 1 gram. Ensure the fan smooth running, lower vibration, less noise, increase stability.
Using high strength nylong swung drop hammer opening device to ensure the hutters opening and closing flexibly.
|
Model |

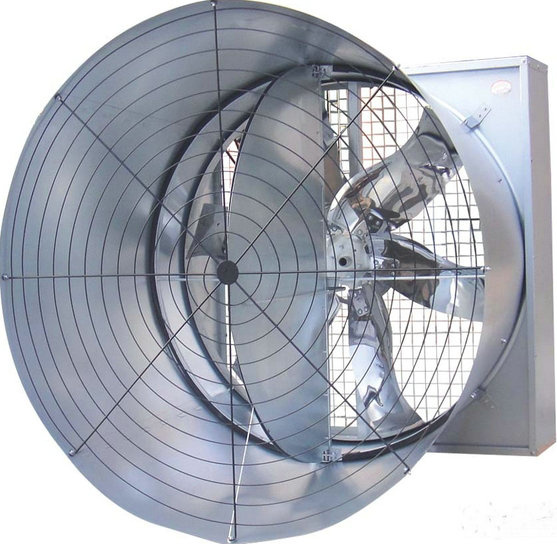

EVER-SCF001 (54'' shutter type cone fan) with CE certificate |
|
Fan size |
1380mm×1380mm×1050 mm |
|
Airflow |
44000m3/h |
|
Weight |
90kg |
|
Frame |
Hot galvanized sheet, high anti-corrosive durability, zinc coating thickness 180g/m2 |
|
Motor |
Chinese and Siemens motor can be choose, IP 54/55, F class |
|
Motor technical data |
1.1Kw 380 V 50 Hz three phase |
|
Motor RPM |
1400r/min |
|
Noise |
<70 db |
|
Blade diameter |
φ1250mm (50inch) |
|
Blade No. |
6 |
|
Blade material |
BA430 stainless steel. Thickness 1.2mm |
|
Blade RPM |
439r/min |
|
Blade instruction |
Weight difference between blades is less than 0.5g,blades will go through
balance test after assembled which can assure steady running and even airflow. |
|
Shutter No. |
8 |
|
belt |
Chinese belt and Mitsubishi belt can be choose |
|
Housing |
Galvanized steel. Thickness 1mm |
|
Net guard |
Two half pieces |
|
Small belt pulley |
Cast Iron |
|
Big belt pulley |
Aluminum alloy |
|
Motor base |
Both 1.5HP and 1 HP motors can be installed |
|
Motor hole |
Installation hole of motor and nut are all six angles instead of the roundness. |
|
Guarantee period |
One year. Easy broken parts are offered free of charge during this period. |
QING DAO CENTEREVER NEW MATERIAL TECHNOLOGY CO. Ltd established in 2005, which covers area of 30, 000 square metres with building area of 20, 000 square metres. Located in JI NING city SHAN DONG province. We are specialized in Cooling Pad Glue, Evaporative Cooling Pad, Ventilation equipment manufacture. Our market are in Austrilia, Brazil, Africa and some Asia countries and so on. Our strict quality control system helps us pass many industrial standards, such as ISO9001, CCC, CE, GS, quality system certification. Furthermore, our own brands include'ROMOSON, CENTEREVER'.
