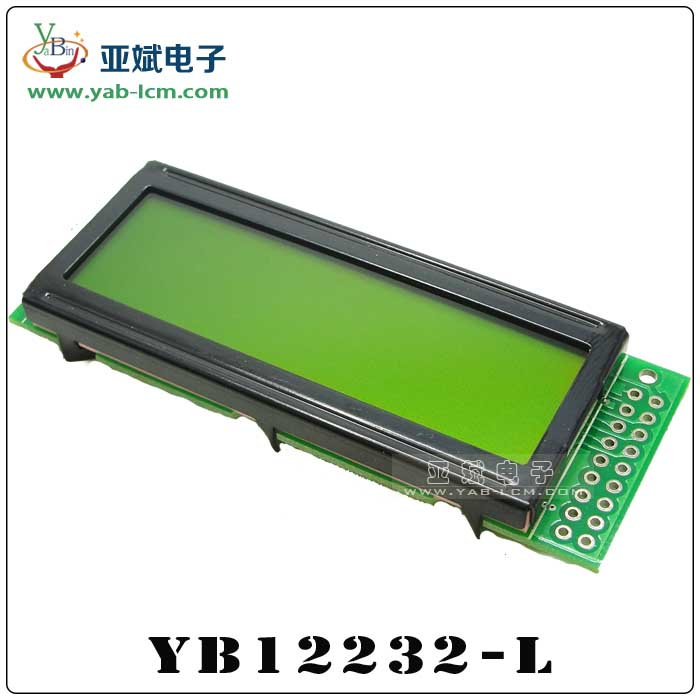

Prod Model: |
YB12232KA |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Display Format: |
122X32 Dots |
Outline Dimension: |
76.5*28*8.7mm |
Visual Area: |
60*18mm |
Active Area: |
48.76*14.68mm |
Diagonal Size: |
2.46 Inch |
IC Or Equivalent: |
Sed1520/Sbn1661 or Eqv |
Interface: |
6800 8-Bit/8080 8-Bit Parallel |
Display Type: |
Stn/FSTN |
Appearance: |
White on Blue/Black on Yellow Green/White on Grey |
Power Supply(Typ): |
3.3V/5V |
Usage: |
Small-sized LCM |
Digital LCD Module Type: |
Counting Module |
Touch Screen Type: |
Resistive |
Type: |
LCM |
Response Time: |
1ms |
Display Technology: |
STN |
DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
LCD Drive Mode: |
Multiplex Drive LCD Module |
Customized: |
Customized |
Viewing Angle: |
6.0 |
Product Description
1.The product description
Gross Weight (kg) | |
Manufacturer | YaBin |
Series Number | YB12232L |
Display Format | 122x32 Dots |
Outline Dimension | 76.5*28*8.7mm |
Visual Area | 60*18mm |
Active Area | 48.76*14.68mm |
Diagonal Size | 2.46 inch |
Dot (Pixel) Size | 0.36*0.42mm |
Dot (Pixel) Pitch | 0.4*0.46mm |
IC Package | COB |
IC or Equivalent | SED1520/SBN1661 or EQV |
Interface | 6800 8-bit/8080 8-bit Parallel |
Display Type | STN/FSTN |
Sunlight Readable | No |
Touch Panel Optional | No |
Contrast Ratio(Typ) | No |
Viewing Direction | 6:00 |
LED Backlight Color | Blue /Yellow Green /Gray |
Appearance | White on Blue/Black on Yellow Green/White on Grey |
Power Supply(Typ) | 3.3V/5V |
Backlight Current (Typ) | 15mA |
Operating Temp | -20ºC~70ºC |
Storage Temperature | -30ºC~80ºC |
If accept customized | Yes |
RoHS Compliance | Yes |
| |
2. Packaging
1).Cartons, Cupboard, EPE, Blister Tray.
2).About how many products in one package, it is up to the size of products.
3).according to customer request.
3.sphere of application
1. Used for temperature humidity meter, electronic scale, multimeter, smart meter, water meter, gas meter. |
2. The bank paper, electronic safes, cash register, stock machine, telephone, walkie-talkie. |
3. The massager, treadmill, fat meter. |
4.Air conditioning, microwave ovens, remote control. |
5. Learning machine, electronic dictionaries, calculators. |
6. Nc tanker, industrial computer. |
7. Video games, calendar, clock and watch all sorts of instruments and meters, such as financial communications, health care instrument. |
