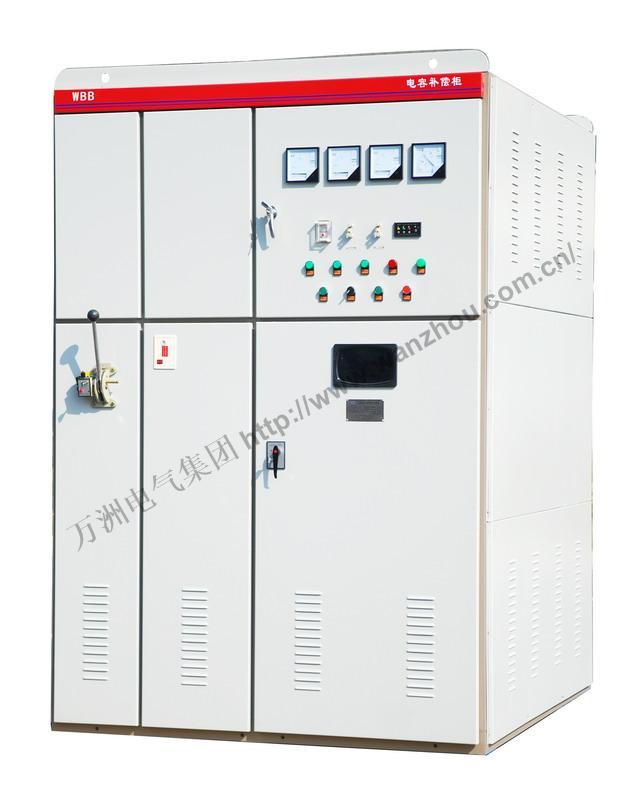

11kv Reactive Power Bank

11kv Reactive Power Bank
Price: US $ 1000/Piece
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: WBB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage: 3kv to 33kv
Type: Power
Structure: Fixed Board
Brand: Wordsure

Product Description

Model:11kv Reactive Power Bank

1) range of application:
Industry with high-voltage motor or 3-10kv power supply system

2)main function:
1:Circuit factor power compensation , improve power factor over 0.95
2:Regulating power network voltage quality,
3:Reducing cable power consumption ,reduce line loss
4:Improving the quality of power supply ,stabilize power quality
5:Increase load ability

3)characteristic:
1:Equipped with good discharge measures , residual voltage decrease to less than 50v in 1 miniute when the devices cut off from network.

2:High pressure ejecting fuse are adopted as short circuit protection for single capacitor to ensure the safe operation of the devices.The main protections include neutral unbalanced current protection, split triangular voltage protection and voltage differential protection.

3:Series reactors with impedance ratio of 1%-13% is adopted to limit the switching-on current and the 3rd harmonic and above

4:Perfect protective measures including, over-current, transient break, over-voltage, low voltage and so on, with a separate protective screen to ensure safe running
Standard  working condition , if special pls clarify when order
Ambient temperature-40c  ~ +45c
Air relative humidity<= 95%
Altitude<=2000m
Max working voltage<=110% rated voltage (except transition  process)
Max current<=1.3 times rated voltage (except transition  process)

Worldwide Electric Group Co., Ltd (called Worldwide for short) is a technology joint-stock enterprise specialized in R&D, manufacture and operation. Our products are energy-saving & controlling equipments of electromotor, energy saving & automation of electrical power system, high & low switch cabinet and turn-key system, numerical control machines etc. They are widely used in building materials, chemical industry, metallurgy, mining, machinery, automobiles, municipal, power, household appliances and so on.

Since established in 2000, Worldwide abides by the management conception of "making famous brand product, offering famous brand service, being famous brand enterprise", aiming to provide superior products and high-quality service to customers all over the world. We insist on scientific progress and innovation, and 17 types of our products won the national patents. Through 10 years of development, Worldwide is a famous leading group in China's electrical control and optoelectronics field which has 3 subsidiary companies, over 600 employees, nearly $80 million annual sales and the company scale rank No. 1 in the trade.

In the next few years, Worldwide will improve operation management mechanism to reach the annual sales of $150 million to realize our ideal of "Rooted in wide China, and aspiring for the whole world".
