| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Refrigerant: |
R22 |
| Power: |
380V/50Hz 220V/50Hz |
| Inlet Water Temperature: |
16 |
| Ambient Temperature: |
35 |
| Ice Product Time: |
3hrs to 24hrs |
| Usage: |
for Refrigerate |
| Certification: |
CE |
| Cooling Method: |
Direct Cooling |
Product Description

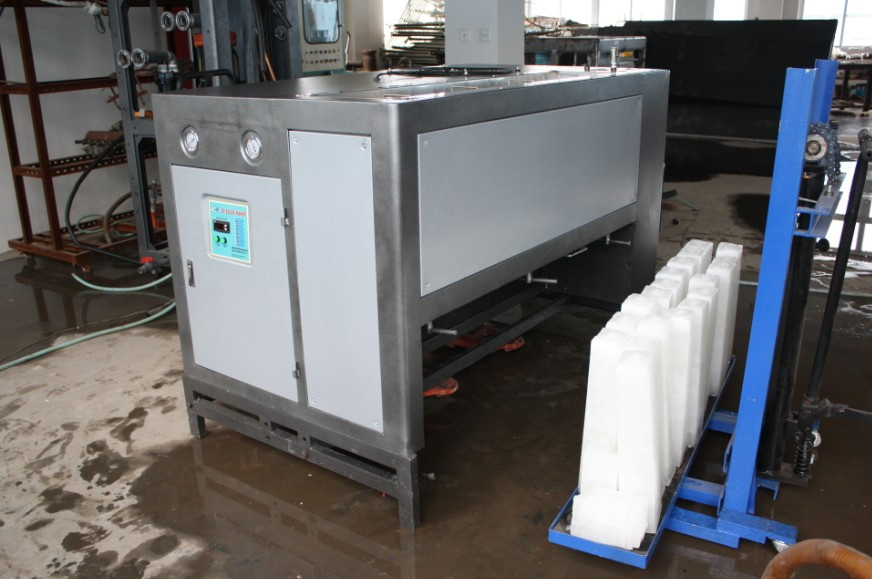

Ice machine Model: QZB-XX
Specifications:
1. Daily capacity(kg): 300kgs-50tons
2. Ice block size(mm): 160*80*460, 200*60*460, 165*80*800 customization 3. Ice block weight(kg): 2kgs-70kgs
4. Ice block making time: 2 hours to 24 hours (2h, 3h, 4h, 8h, 12h, 24h available for option5. Compressor Power(P): 6P-25P6. Ice bucket: Galvanization or stainless steel7. Power Supply: 3phase-380/415V/230V-50/60Hz8. Refrigeration: R22/R134A/R407C9. Dimension LWH(mm): 1580*1080*1560
Refrigerant: R22, R404A, R407C
Information of main parts:
Assembly part Brand Origin
Compressor Bitzer Germany
Electrical unit LG Korea
Temperature control KF Qingfeng
Condenser KF Qingfeng
Evaporator KF Qingfeng
Expansion valve Danfoss Danmark
Dry filter ALCO USA
Refrigerant DuPont USA
Copper pipe Hongtai Qingdao
Pressure controller KF Qingfeng
Pressure Gauge KF Qingfeng
Condenser KF Qingfeng
Ice machine Feature:
1. Employing all new imported compressor, with longer terms of service.
2. High efficiency evaporator and cooling condenser in use, to help save no less than 30% of your power rates.
3. High precision, temperature control to save energy.
4. Complete with safety protection and error indication system.
Related Products:
Salt water ice machine, Directly cooling ice machine, Block ice machine, Flake ice machine, Lolly ice machine, Ice cube machine, Ice flake machine, Plate ice machine, Slurry ice machine.
Ice machine application:
Concrete cooling projects, Fishery and aquatic product processing, Temperature reduction in mines, Meat processing, edible ice, Man made ice project, Medicine, chemical project, Medium and large supermarkets and so on.
Technical parameters of QZB-XX series salt water ice machine
Note: The following parameters are based on ambient temperature 35º C, and water inlet temperature 16º C; To guarantee constant improvement of technology, the above parameters shall be changed without further notice.
Detail
specification
|
Daily output (kgs/24hrs)
|
Ice block size
(mm)
|
Machine Size
(mm)
|
QZB-305F06
|
600
|
200*60*460
|
2200*680*730
|
QZB-505F06
|
1000
|
200*60*460
|
2200*1020*730
|
QZB-1005F06
|
1980
|
200*60*460
|
3900*1100*730
|
QZB-2005F06
|
3960
|
200*60*460
|
5800*1100*730
|
Zhejiang Kingfit Environment Co., Ltd.is subsidiary of Kingfit International Group Limited in East China, founded in 1998, with total capital of USD 5.38 million of Sino-joint venture enterprise. East China factory is located at Shuige Ind. Park in Lishui City of Zhejiang Province with convenient traffic, and covers a land area of 20000sqm. Our company is constantly introducing advanced manufacturing workmanship and testing equipment, invests 5% of it gross sales amount into R&D center every year and we established tight national testing center. The products are recognized by the users from abroad and at home and entitled "the Top 10 Well-known Refrigeration Equipment in China" and "National Quality Guaranteed and Eligible Product in Refrigeration Equipment Industry" etc. Our company introduced many leading technology production lines for the manufacture of screw style chiller, box-type chiller, cooling tower, freezing dryer, high temperature heat pump, ice making machine etc. The products are exported to more than 30 countries, this is a high tech enterprise integrated scientific research, production and trade, and is also currently the largest and most professional refrigerating and heating equipment manufacturer in China.
We have passed ISO9000, CE, AS certification, gradually becoming the navigator of industrial refrigerating and heating. And received many patented technologies, such as anti-corrosion flooded screw style chiller, flooded scroll style chiller, economizer, U-type anti-corrosion evaporator, external thread titanium evaporation, ice machine etc.
We sincerely welcome customers at abroad and home to our company for cooperation and let's make contribution to the flourish and development of refrigeration equipment in China together.
