Prod Model: |
BR-TM1001 |
Markets: |
North America,South America,Eastern Europe |
Place Of Origin: |
Guangdong, China |
Car Make: |
All Vehicle, All Vehicle |
Brand Name: |
Brvision |
Warranty: |
12 Months |
Power: |
5W |
Voltage: |
DC 24V |
Operation Mode: |
Remote Control, OSD Menu |
Operation Temperature: |
-20°c-+70°c |
Connector: |
4 Pin or RCA |
Type: |
LCD Monitor |
Color: |
Color |
HDMI Format: |
720P |
Feature: |
With Remote Control |
Certification: |
ISO9001: 2000 |
Interface Type: |
VGA |
Horizontal Resolution: |
420tvl |
Screen: |
General Screen |
Scanning: |
Line by Line Scan |
Material: |
LCD |
Sensor: |
CCD |
Size: |
7" |
Application: |
Reverse View |
Product Description

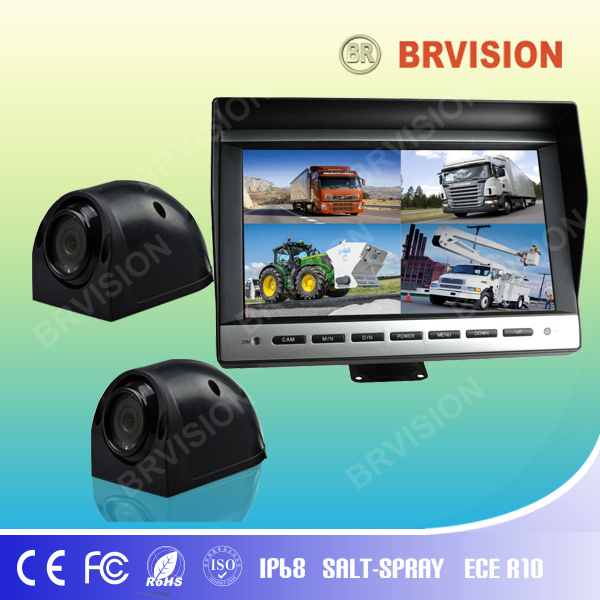

10.1" LCD Monitor touch screen for Rear View System
Monitor Specifications:
- Screen size: 10-inch panel (diagonal length)
- Input: 2-way video input
- System: PAL and NTSC auto switching
- Resolution: 480 x R-G-B x 234
- Power supply: 12-24V DC
- Built-in speaker (optional)
- Heavy duty reversing
- OSD menu
- contrast, color, brightness adjustable
- View angle range: (left/right) 65 degrees (top) 40 degrees
(down) 15 degrees
Screen size | 10 inch |
Resolution | 800*480*RGB |
System | PAL/NTSC automatically |
Audio and video | 4 video/1audio input Quad images,2/3/4 image optional |
OSD menu | Language,brightness, contrast, trigger priority delay display setting |
Luminance | 250cd/SM |
Working temperature | -20°C-+70°C |
Storage temperature | -30°C-+80°C |
Voltage | 12V-24V DC |
Connector | 4 pin or RCA |
Accessories | user manual/remote controller/powr calbe/sunshade/scre |
Go match
Aluminum Shell Backup Waterproof Camera |
Image Type: 1/3 Inch Color CCD |
Horizontal Resolution:720TV Lines |
NTSC:976(H)×494(V) PAL:976(H)x582(V) |
Usable Illumination : 0Lux ( Built in 10 IR LED's for Picture Support in the Dark) |
Free viewing angle: 130° |
Waterproof: 100% Waterproof IP69K Rating |
Shockproof: 10G |
Video Output:1.0Vp-p75Ω |
Operating temperature: -40ºC to +70ºC (Automatic heating when the camera's running temperature is below 10ºC optional) |
Power supply:DC12V (from Reversing Monitor) |
Dimensions: 75(W) x 43(H) x 38(D) mm (without mounting) |
Weight Approx: 179g |
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
