What is USB Type C and Why We are Excited About It

What is USB Type C and Why We are Excited About It

USB Type-C is an USB interface defined by USB Implementers Forum, Inc., creators of USB technology. Welcome to USB Type-C! Apple’s new MacBook has implemented the USB Type-C port, which will be the future modern product of USB Port.

From the shape, USB type C is greatly different from the common USB Type A. Although the USB technology has developed from the USB 2.0 to USB 3.0, and USB 3.1, the appearance of the port we mostly use is USB Type A, which has a right and wrong side when you plug it in.

With the newly designed USB type C, you needn’t worry about reversing the usb cable when plugging it in.

Let’s first get an overview of USB type C, except this easy plug feature.

1. USB Type-C is a specification for a reversible-plug connector for USB devices and USB cabling.
2. Rather slimmer and thinner than USB type-A.

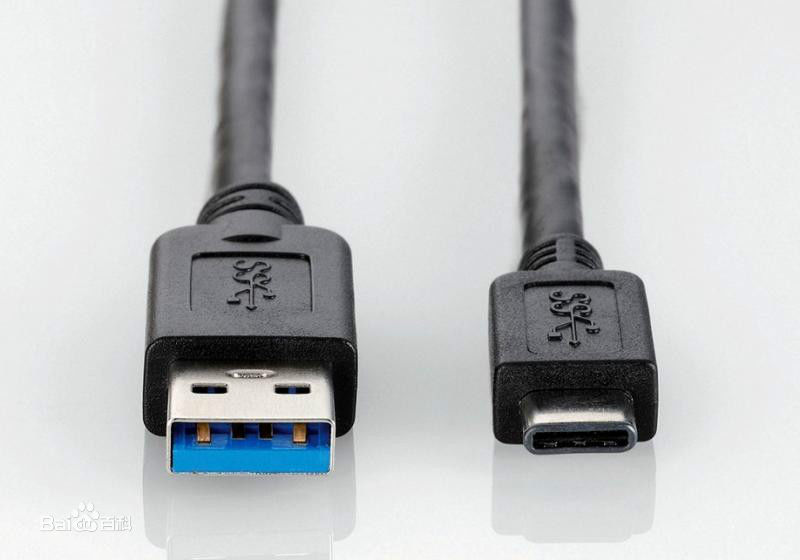

As the following picture shows, the right side USB type-c is much smaller and thinner than the left USB Type-A. A Type-C port measure is just 8.4mm by 2.6mm. This means it's small enough to work for even the future smallest peripheral devices.

1. USB type C is USB 3.1 standard. High Speed as 10M bps and as a power port. 2X  Transferring speed of the USB 3.0.

1. The USB-C connector supports DisplayPort, HDMI, power, USB, and VGA. Notably absent is Thunderbolt.

1. USB Type-C is backward compatible but requires adapters. It's fully compatible electrically with USB 3.0, though obviously it won't plug in physically without an adapter. It is fresh that USB needs an adapter.
2. Power Supports:

Indications are that the USB-C standard supports at least 100 watts of power delivery, so it's possible that USB-C could replace most power adapters as a standard in the future. Using USB to power a laptop isn't new, though. Look at the Lenovo Yoga 3 Pro $1,299.00 at Lenovo, which has a full-size USB 3.0 power connector.

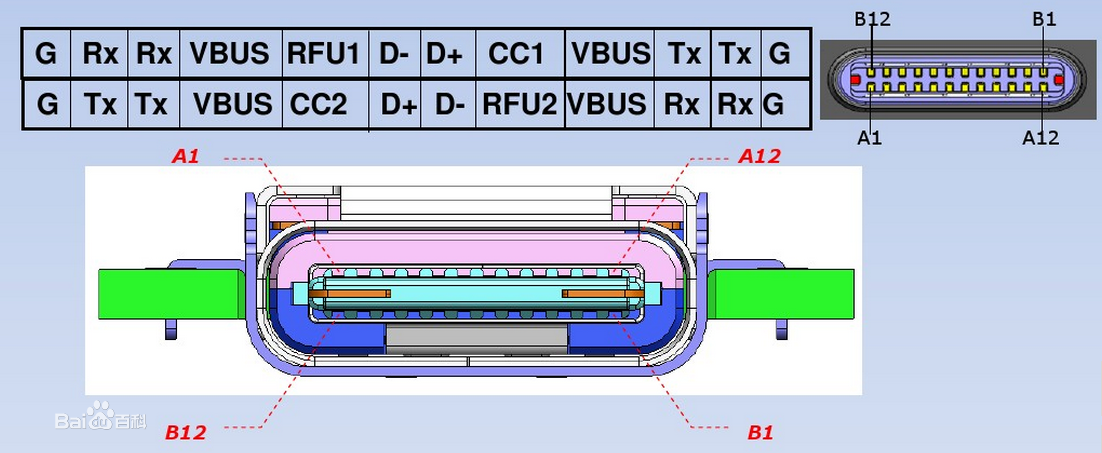

Look at the connector interface of USB type-C.

Are there any latest USB Type-C applications in consumer products?

Yes. There are booming. Besides the Apple MacBook port, there are more and more USB Type c products emerge.

Watch this Video about USB type-c by expert of PCmag:

https://www.youtube.com/watch?v=G7d_17o0KsQ

I have collect some USB Type C products in the latest days:

For Adapters:

The majority of USB type-c adapters are the USB Type-C to USB Type-A adapters.

USB type-c to USB 2.0 adapters for power

USB type-C to USB 2.0 female cable

USB Type-C to Mini USB data power adapter

Apple USB Type-C to USB Adapters.

Thought we need adapters to transferring data between USB Type C and common USB products. It is not long before we do not need adapters when the USB Type-C becomes more popular.

USB Implementers Forum, which is the creator of USB Type-C, says that Type-C USB is designed to be future-proof. In the future, there will be more and more USB Type-C devices for the fastest USB connectors. When USB Type-C becomes as popular as the current USB Type-A, it will be easier when we working with devices. We will hold tiny USB devices for both data and power connections. Just welcome the smart digital connection and cables of USB Type-c of USB 3.1.
