| Prod Model: |
WV52YT-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Status: |
New |
| Type: |
Piston |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
Product Description
1. Low sound
2. Low vibration
3. High reliability
4. Cheap price provided for the compressor WV52YT makes the customers better choice
5. Experienced staff ensure produce of the compressors with good quality
6. Starting device is e-PTC
7. Frequency only for 50HZ
8. Voltage application from 220 to 240V
9. Application in drinking fountain, small refrigerator, freezer, liquor cabinet, etc.
10. Nominal power is 1/14 HP
11. COP is 1.6 with the cooling capacity 85W
12. RSCR Motor
13. Cooling type Static
14. Low Back Pressure
15. Copeland compressor
16. CCC/CB/CE/VDE certification
17. Compressor should be stored in a dry and drafty place
18. Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
19. Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
20. The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.
21. The machine application of R600a (hydrocarbon) compressor and refrigeration equipment should be in compliance with the safety regulation on hydrocarbon refrigerants. Appropriate equipments and tools should be used in operation.
22. Compressor working condition: Wansheng R600a series compressors can star t and run under the 0.25Mpa(gauge) balance pressure and 855 rated voltage; Under special conditions. Voltage low to 165V and high to 242V is allowable.

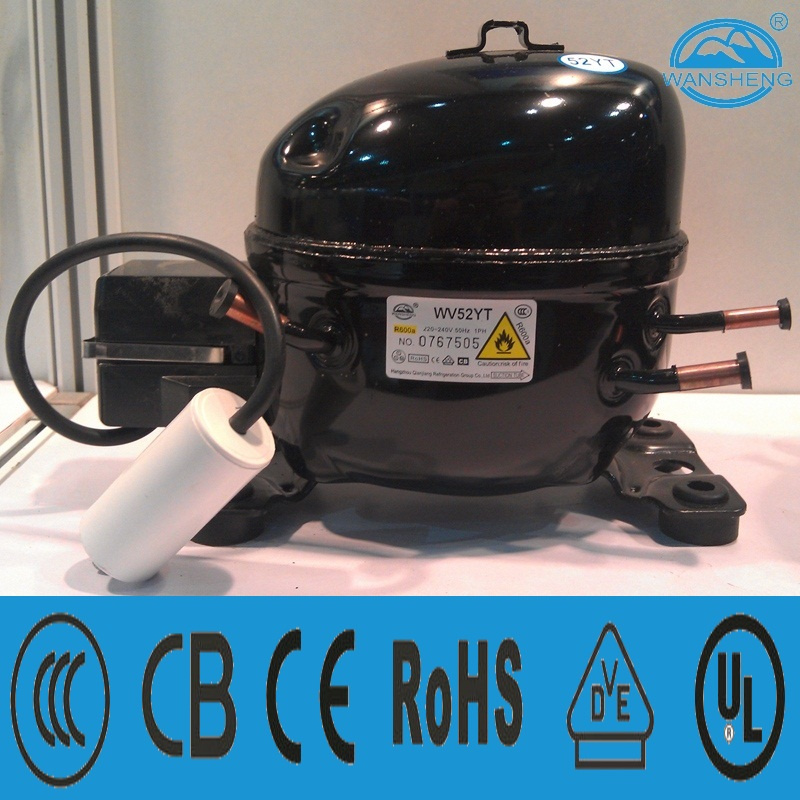

23.1/14 hp 220v refrigerator compressor WV52YT
24. WV52YT compressor use R600a refrigerant
25. Small size
26. High efficiency
| R600a WANSHENG Low Back Pressure (LBP) Compressor |
| R600a WANSHENG Low Back Pressure (LBP) Compressor | Test Conditions | Evap. Temp.: -23.3°C |
|
| Cond. Temp.: 54.4°C |
|
|
|
| Amb. Temp.: 32.2°C |
|
| Suction. Temp.: 32.2°C |
|
|
|
| Subcooling Temp.: 32.2°C |
|
| LBP ASHRAE |
|
|
|
| Model | Displacement
(cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Starting Capacitor
(μF) | Running Capacitor
(μF) | Starting Relay | Cooling Type |
| V series 220-240V~50Hz |
| WV52YT | 5.2 | 85 | 54 | 1/14 | 1.60 | RSCR | / | 3 | e-PTC | S |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
