| Prod Model: |
V-H500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Enter Attribute Here (e.g.: Size): |
Enter Value Here (e.g.: 12 Inches) |
| Usage: |
Hi-Fi |
Product Description
Multi-room, Multi-user and Multi-speakers! Multi-user can player different music in Multi-room the same time.
Don't dock, Don't signal line! You can play any music stored on any devices or connected to the network play streaming music without getting out of your chair.
Don't remote control! User can adjust the volume/pause/previous/next via the player on your smart phone or Tablet It will not change the users' habits.
Don't pulling speaker wire through walls! Our system adopt wireless distributed solution.
Don't install APP! Our system perfect Combined Android and iOS music player.
WiFi-HiFi system working mode: AP Client (by default)/AP/STA, User can install 1set or more.
This product can be powered by any DC power supply ranging from 12 to 20V, This voltage also can suitable on RV/ Travel Trailer / Caravan/ Yacht.
Quality sound performance, 2 X 45W RMS Hi-Fi sound with Class "D" Digital Amplifier. You can use it to drive any 4Ohm - 8Ohm passive speakers.
Built-in WEB server to easily configure the WiFi.
The Mobile phones and PC does not request installing any drive software or connecting transmitter device.
Support 802.11n, none compression audio transmission.
Using professional DAC decoder chip to decode, pursuing HiFi quality to satisfy your picky ears.
Audio Format Support: MP3/ WMA/ AAC/ AAC+/ ALAC/ FLAC/ APE/ WAV.
You can playback local music and network streaming contents, Such as internet radio etc.
WiFi frequency 2.412GHz-2.484GHz, Support 802.11b/g/n Standard.
This device complies with part 15 of the FCC Rules.
Aluminum waterproof shell, good heat dissipation, to guarantee product stability, premium quality.
WiFi Multi-room HiFi Audio System:

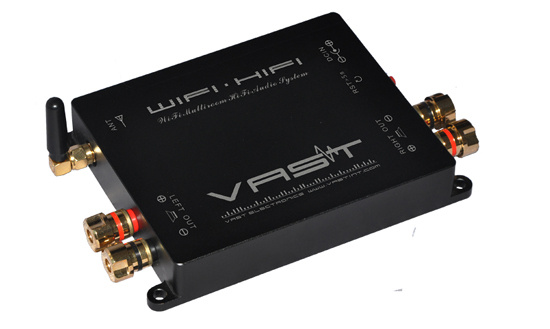

Model: WiFi-HiFi(V-H500)
Power Requirements:
AC Supply: AC100-240V, 60/50Hz, 1A DC Input: DC12-20V @ 5A
Total Quiescent Current: Typical 120mA
Dynamic Range: > 98dB
SNR: > 98dB
Stereo Separation: > 100dB(1kHz)
Audio Format Support: MP3/ WMA/ AAC/ AAC+/ ALAC/ FLAC/ APE/ WAV.
Frequency Response: 20Hz to 20kHz(± 3dB)
Speaker Impedance: 8 ohms - 4 ohms minimum
Output Power(RMS): 2CH*45W
WiFi Standard: IEEE 802.11b/g/n
Frequency Range: 2.412GHz-2.484GHz
Receive Sensitivity@PE: 11b: -89dBm, 11g: -81dBm, 11g: -71dBm
Transmit Power: 14dBm
WiFi working mode: AP Client (by default)/AP/STA
Security: WEP/WPA-PSK/WPA2-PSK/WAPI
Encryption: WEP64/WEP128/TKIP/AES
Operational Temperature: 32° F - 104° F (0° C - 40° C)
Humidity: 5% - 95% Non-condensing
Storage Temperature: -4° F - 158° F (-20° C - 70° C)
N. W: 0.75Kg
Size: 150*100*36mm (L*W*H)
G. W: 1.6Kg
Packing Size: 285*225*50mm (L*W*H)
For more information: http://www.vastint.com/product/Multi-room_Audio_Systems_Distributed_Audio_Solutions_WiFi_Multi-room_HiFi_Audio_Systems.html
VAST Electronics is part of VAST International (HongKong) Limited, who is specialized in researching RF & Audio products.
This newly set-up business department with a group of experienced engineers in developing hardware and software.
With all these advanced conditions, We not only producing high quality RF & Audio product of VAST Electronics, but also offering the best service to global customers.
Nowadays, VAST Electronics business department is specially in researching, manufacturing and selling WiFi-HiFi Systems (Multi-room Audio Solutions Distributed Audio Systems WiFi Multi-Room HiFi Audio Systems Wireless HiFi Systems) & FM Transmitter, and relative technical solution is supported.
We welcome traders from all over the world, factories, engineers, decoration designing companies, technicians and audio lovers send inquiry to us, we shall do our best to offer superior quality products and technical support.
If you need any custom(OEM/ODM) RF & Audio relative products just contact us.
