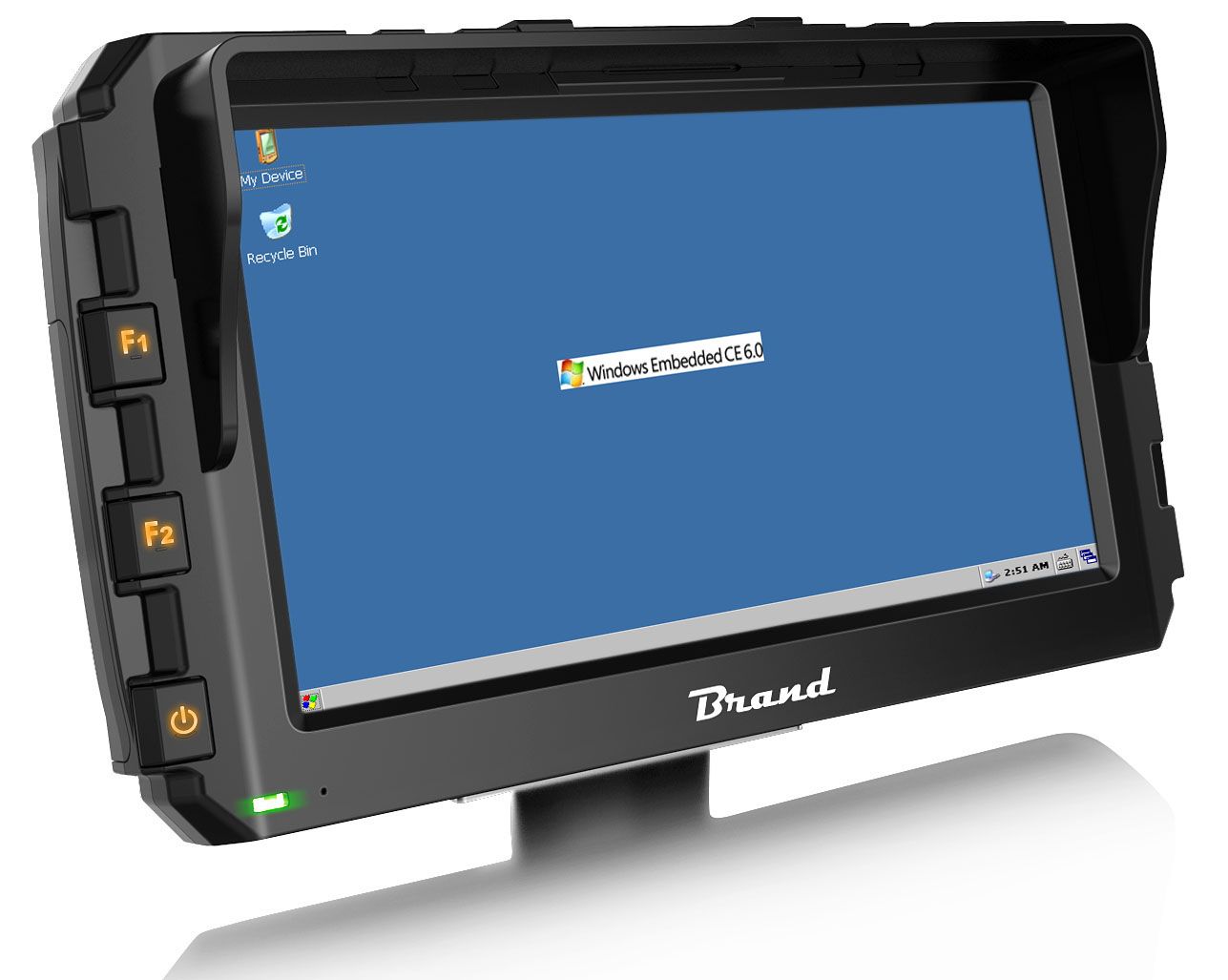

WinCE6.0 GPS Tracking with 7 inch LCD touch screen, mobile data terminal
Feature:
Vehicle financing
Vehicle maintenance
Vehicle telematics (tracking and diagnostics)
Driver management
Speed management
Fuel management
Safety management
Specifications:
1.800 MHz ARM Cortex A6 CPU Core
2.256MB up to 512MB RAM Memory
3.512MB up to 8GB Nand Flash Memory
4. Support SD/SDHC Card (up to 32GB)
5. Windows CE 6.0 Core Licence(without IE brower / media player / AYG shell...Etc. )
6.7" TFT LCD with 800x480 WVGA
7.4-wired Resistive Touch Panel
8. On-board 3G and GPS Module
9.2x RS232 / 1x RS485 / 1x CAN Bus
10.1x USB 2.0 OTG / 1x CVBS input
11.5x GPIO / 3x Software programmable Hardware Buttons
12. Internal 1.5 Watt Speaker and Microphone
13. Support Bluetooth and FM (optional)
14. DC 9V~36V Power supply Requirement (No used the battery)
15. Industrial Grade, Plastic Enclosure Design to meet IP54
16. Various Optional Accessories
17. CE, FCC certification
Accessories:
* Extended cable
* Touch pen
* Operation manual
* Bracket
* SD card(optional)
| Display Screen | 7" TFT LCD |
| Resolution | 800×480 WVGA |
| Touch Panel | 4-wire resistive |
| Brightness | 350 cd/m2 |
| Aspect Ratio | 16:9 |
| OS | Windows CE 6.0 |
| CPU | 800 MHz ARM Cortex A9 CPU Core |
| Memory | 256 MB DDR3 RAM + NAND Flash |
| Expansion Storage | SD card (up to 32GB) |
| Transfer Interface | 3x RS232 / 1x RS485 / 1x CAN Bus / 1x USB 2.0 OTG |
| Speaker | 1.5W |
| Working Temperature | -25 - 70ºC |
| Storage Temperature | -30 - 80ºC |
| Power Supply | DC 9V~18V |
| Dimension(LWD) | 20*11.8*3cm |
|
|
FITRIP is China' S one of the most reliable manufacturer of Mobile Data Terminal. It manufactures world class Mobile Data Terminal for fleet management and navigation. It also provides useful information about Mobile Data Terminal.
For 10 years, FITRIP is the Chinese leader in mobile data terminals through the design, production and marketing of on board devices for vehicles aimed for commercial, public and professional transport of people and goods; At the moment its products can be divided in the following sectors:
Mobile data terminal (WINCE & ANDROID)
Smart Display (WINCE & ANDROID)
