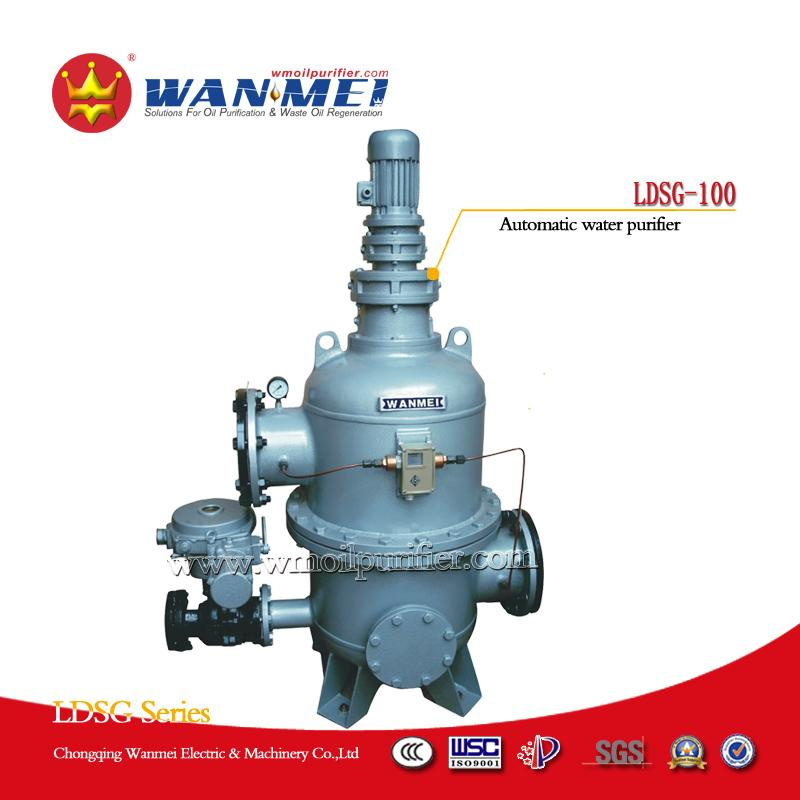

Widely Used Automatic Water Purifier (LDSG-100)
LDSG series automatic water purifier absorbs the latest water filtration technology from home and abroad, it is an new full automatic water filtration equipment with up and down complex waste drainage designed by Wanmei Company. It is mainly used in water supplying automation of electric station technology of water supplying system. It is specially suitable for the automatic filtration, washing and waste drainage for the water in the river with large amount of floating materials, which is also used to purify the water in metallurgy and electric power, and chemical industry etc.
Characteristic
1. Multiple filter elements are installed in the water purifier evenly, the filtration net area is large, containing pollutant capability is strong, and the working efficiency is high.
2. The water in mode of the machine is reasonable, which make it hard for the floating materials to enter the filtration bucket to avoid the block of filtration net
3. Up and down waste drainage is adopted, which makes it easier for the floating materials and sediment to be drained out completely.
4. It can drain pollutants at regular time according to your set. When the pressure difference of entrance and exit reaches the fixed number, it can drain pollutants automatically or by hand. The amount of water for back- washing is small.
5. The machine is set protection function for trouble, with high-pressure alarm, electric breakdown alarm, waste drainage breakdown alarm.
6. The water purifier uses stainless steel filtration net. The ability of resisting acid and corrosion is strong.
7. Control system use PLC controller, which can communicate with high-position machine through machine group LCV. The high position machine can monitor and control the water purifier.
8. The machine is fit for the water supply system of electric station with nobody on duty.
9. The machine is set two special holes for filter element to be examined and repaired, it is no need to lift the equipment when repairing, the filter element can be taken out from the holes to be washed directly, it is really convenient and time saving.
Model & Technical Indexes: |
| Model | LDSG-50 | LSDG-100 | LSDG-150 | LSDG-200 | LSDG-250 | LSDG-300 | LSDG-400 | LSDG-500 | LSDG-600 |
| Flowrate/m 2 /h | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 |
| Inlet(Outlet) Diameter/mm | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| Waste Outlet Diameter/mm | 40 | 50 | 65 | 80 | 100 | 125 | 125 | 150 | 150 |
| Decelerating machine Power/KW | 0.18 | 0.18 | 0.37 | 0.37 | 0.55 | 0.55 | 0.75 | 1.1 | 1.5 |
| Power Supply | 380V. 50HZ(set as users' requirements) |
| Working pressure/Mpa | 1.0 or 1.6 Mpa(set as users' requirements) |
| Filtration precision (mm ) | 0.01-6mm |
| Timing Set Range | 0~30h |
| Self-Washing Time | 5s~10s |
| pressure loss/Mpa | 0.01~0.03 |
| Control system | PLC Control |
| Higest Working Temperature | 65 °C |
Chongqing Wanmei Electric & Machinery Co. Ltd. And Chongqing Wanmei Oil Purifier Research Institute are high-technique enterprises for research, development and production of oil purification equipment, automatic water purifier, gasifier and other electrical maintenance equipments. Taking advantage of over 70% of the staff members having college diplomas, the company has unique capability in scientific research and equipment production, with the help of professional scientific experts, specialists and other technicians.
The company lays much emphasis on high technical research and application to practical production and has gained varieties of patented technique certificates, know-how certificates and ISO9001 International certificate. It is granted with independent right for international trade. Wanmei trade mark has been registered in the People's Republic of China and Wanmei brand has been widely acknowledged in the world market.
Wanmei has assigned to itself the great task of "Saving natural resources and protecting biological environment". It has developed 32 series and 280 different models of products, based on the latest scientific research and advanced technology both in China and abroad. All these products are working properly in different industries of power generation, petroleum, chemistry, metallurgy, machinery, mining, aviation, ship-building, railway transportation, etc. Wanmei oil purifier is characteristic for its fine filtration, steady operation, energy saving, auto control and easy maintenance, which has won high praises from our customers all over the world. "Wanmei oil purifier, the symbol of Chinese oil purification technique" has been warmly accepted in the market.
Wanmei gives its guarantee to all customers both at home and abroad the reliable quality products, reasonable price and good service. We serve our customers with Wanmei advanced technology, reliable products, first class quality, excellent service and good credit. We are looking for sales agent in various countries and cooperation opportunities for future development on the basis of mutual benefit and success, which will open up brilliant new prospect to us both sides.
