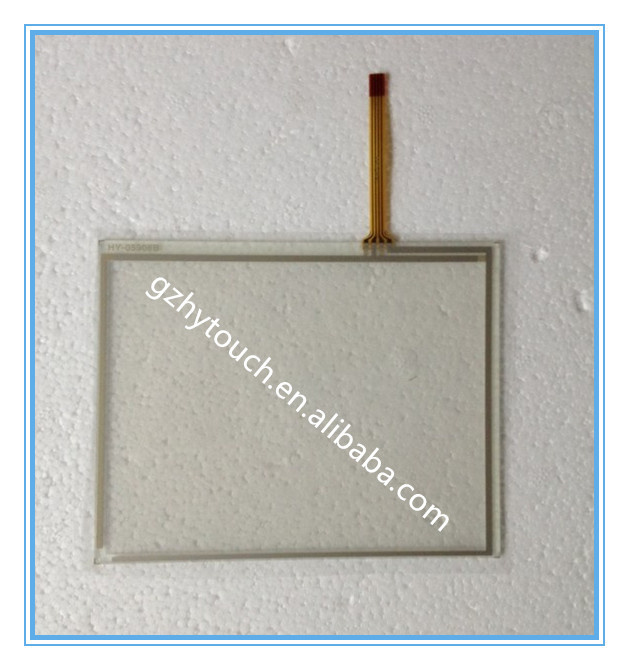

Waterproof Touch Screen Hy-Tpl66703 for Duplicator

Waterproof Touch Screen Hy-Tpl66703 for Duplicator
Price: US $ 15-45/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: HY-TPL66703
Customized: Customized

Product Description


Main Specifications:
Thickness1.8mm
Screen Size5.8''
Conductive GlassITO 0.7, 1.1, 1.8
Conductive Film188 μm
StructureConductive film, ITO film
Key Sheet or GlueConductive glass, ITO glass
Insulation Distance3 * 3mm
ConnectorFPC  flexible printed circuit
Electrical Performance
Loop Resistance50~300Ω
Linearity≤±1.5%
Insulation Resistance≥10MΩ, @25V (DC)
Maximum Operation Voltage5V (DC), 1mA
Chattering Time≤15ms
Response Time≤30ms (from the touch moment to response)
Mechanical Behavior
Input MethodPen or finger
Operation ForceOD 2mm pen within 60g~150g pressure
Surface Hardness3H
Transparency80 ± 3% @550nm wave length
Environmental
Operation Temp-10~60°C
Storage Temp-20~70°C
Writing lifeMore than 1000,000 times
Stamping lifeMore than 1000,000times
Touch life >350,000,000 Times  according to different touch screen


Guangzhou Quanchutong Electronic Factory is first founded in 2003. Our company mainly produce 4 wires and 5 wires resistive touch screens. We made resistive touch panels from 2 inch to 24 inch and capacitive touch panels from 2 inch to 65 inch. Meet the diverse requirements of the clients, such as point of sale (POS), hospitality, medical and health care IT, industrial and consumer. As a pioneer in the industry with many years of experience.

Our company has passed ISO9001 and ISO1400 certification. We aim at meeting the clients' needs and expectations by the way of improving the products performance and quality, reducing the cost and getting the price down, offering the top service. High technology and environmental friendly enterprise is what we want to be.
