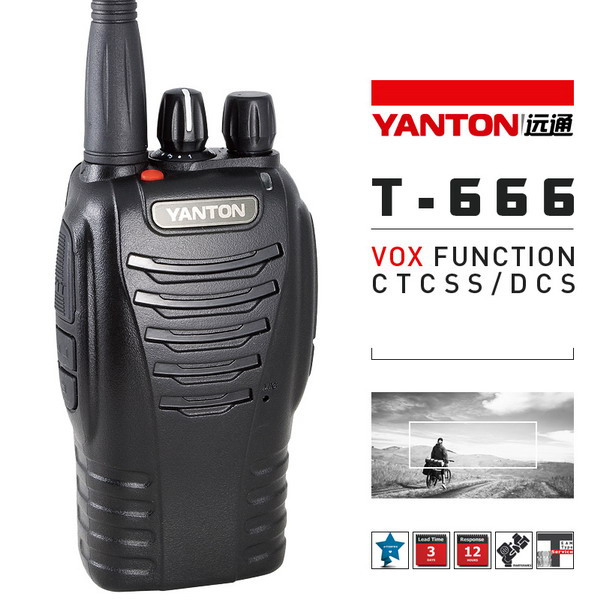

Walkie talkie microphone(YANTON T-666)
Functions:
1. Output Power: 5W
2. Frequency Range: 136-174MHz/400-480MHz
3.16 Memory Channels
4. Scan
5. PC Software Programmable and Wire Copy
6. VOX Function
7. CTCSS/DCS
8. Monitor, Reverse Frequency
9. Power Saving Function, Low Power Warning
10. High/Low Power Selective
11. Wide/Narrow Bandwidth Selective
13. Emergency Alarm
15. Busy Channel Lock
16. Transmitter Time-out Timer(TOT)
17. Side Key Assignment
18.0-9 Grades Squelch Level Setting
20. Chinese and English Voice Prompt
21. FM Radio (87.5-108MHz)
Detailed pictures:
Specification:
| Model | T-666 interphone |
| GENERAL | Frequency Range | 136~174MHz/ 400-480MHz |
| Number of Chanels | 16 |
| Working Voltage | 7.4V LI-ION |
| Working Temperature | -20~+60 |
| Frequency Stability | ±2.5ppm |
| Size(H*L*W) | 105×56×31mm |
| Weight | 249g |
| TRANSMR | Power Output | LO:1W HI:5W |
| Modulation | F3E |
| Radiation | >60dB |
| Power | >55/65dB |
| Modulation Limit | ±2.5/5KHz |
| Distortion | ≤5% |
| Noise Response | 34/40dB |
RECEIVER | Sensitivity | <0.20µV |
| Neighbour Channel Selectivity | ≥60/70dB |
| Noise Response | ≥65/70dB |
| Audio Power | 500mW |
| Audio Distortion | ≤5% |
| Intermodulation Distortion | ≥60dB |
Quanzhou YANTON Electronics Co., Ltd. Has been a professional two way radio manufacturer integrating in R&D, Production, sales and service for Seven years. Our company has created and owned its famous brands such as YANTON and LSENG.
Our company has introduced advanced equipments in the world such as American HP8921, Germany Rohde & Schwarz SMC-50. We own standard production workshop, product laboratory and R&D room. We offer the cost effective products, and help our customers win the competitive advantage in the price and quality in the market.
Our company has 10 people of QC staff, 15 people of R&D staff, and 5 people of IQC staff. They have more than 5 years of work experience. We focus on new product innovation and quality control, and we invest 40% of profit in new product development. We have got a lot of OEM/ODM orders because of product innovation and efficiency.
We strictly implement ISO9001 quality management system, and we strictly check from raw material purchase, production and finished product testing, which can ensure high stability and consistency of products. Our products has been awarded "radio transmitting equipment and model approval", and also has got FCC, CE, SIRIM Certification. We have agents in many city and has exported to Malaysia, Vietnam, Middle East, Europe, USA and other countries. We have obtained high reputation from our users, distributors, agents for our good products and good sale service.
Let us work together to create a better tomorrow!
